Anritsu Bts Master Mt8222a Cable Antenna Btsmaster W/ Mobile Wimax Demodulator

US $6,995.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

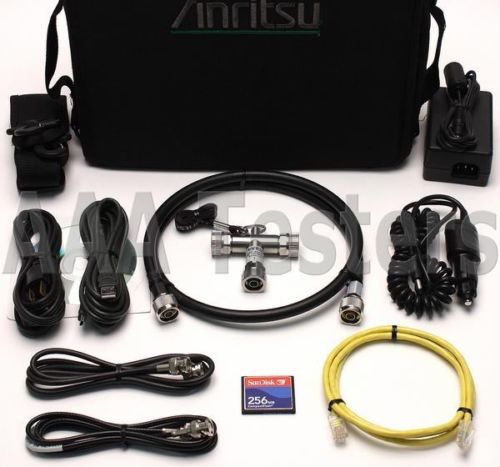

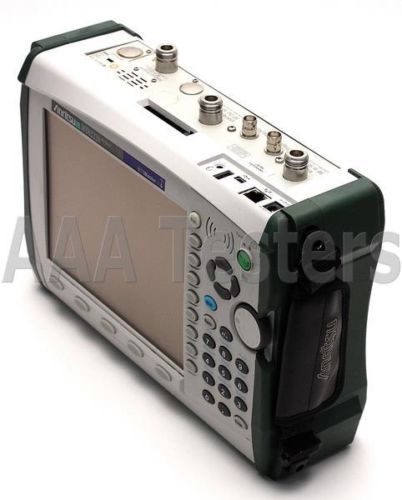

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Anritsu BTS Master MT8222A Handheld Base Station Analyzer (BC# 18095) w/ Options: Option 66: Mobile WiMAX RF Measurements Option 67: Mobile WiMAX Demodulator Test Port Cable Ethernet Cable (2) BNC To BNC Cables Anritsu OSLN50-1 Open/Short/Load (BC# 18094) 256MB Flash Card DC Car Charger AC Adapter/Charger Power Cord RS232 PC Interface Cable USB PC Interface Cable User Manual On CD-ROM Carrying Case w/ Strap BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Anritsu BTS Master MT8222A Handheld Base Station Analyzer 10 Mhz to 4 Ghz Frequency Range Installed Options: - Option 66: Mobile WiMAX RF Measurements - Option 67: Mobile WiMAX Demodulator Includes Anritsu OSLN50-1 Open/Short/Load, Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty BTS Master – A High Performance, Handheld Base Station Analyzer BTS Master MT8222A is the value choice for deploying, maintaining and troubleshooting 2G/2.5G, 3G, and 4G wireless base stations. The BTS Master is a combination of our popular Spectrum Master MS2721B and VNA Master MS2024A offered as one handheld solution, weighing 4 kg (9 lbs). The functionality of the BTS Master is: Built-in spectrum analyzer (100 kHz to 7.1 GHz) Built-in cable and antenna analyzer (10 MHz to 4 GHz, 10 MHz to 6 GHz optional) Built-in power meter (10 MHz to 7.1 GHz) Transmitter analyzer (LTE, WCDMA/HSDPA, GSM/GPRS/EDGE, WiMAX, CDMA, EVDO, TD-SCDMA) Interference analyzer (100 kHz to 7.1 GHz) Channel scanner (100 kHz to 7.1 GHz) High Accuracy Power Meter (per power sensor specifications) Power monitor (100kHz to 50 GHz) Built-in variable Bias Tee (12V-32V) T1/FT1 analyzer T3/T1/FT1 analyzer 2 Mb/s - E1 analyzer GPS receiver The new BTS Master is an integrated multi functional base station test tool eliminating the need to carry and learn multiple test sets. The MT8222A measurement capabilities include spectrum analysis including smart measurements, precision return loss, VSWR, cable loss, distance-to-fault, two port gain/loss, one port and two port magnitude and phase, interference analysis, spectrogram, RF and demodulation measurements for LTE, WCDMA/HSDPA, GSM/GPRS/EDGE, CDMA, EVDO, TD-SCDMA, Fixed WiMAX and Mobile WiMAX, demodulating WCDMA/HSDPA, CDMA, TD-SCDMA, EVDO over the air (OTA), location information, enhanced frequency reference oscillator accuracy, variable bias tee, 2 Mb/s - E1, T3 and T1 measurements. The High Accuracy Power Meter (Option 19) provides true RMS measurements The BTS Master can be configured with an interference analyzer, which is maximized by the MT8222A’s built-in low-noise preamplifier. The result is that interfering signals down to -162 dBm can be identified and located, allowing technicians/RF engineers to better address quality issues that affect user service. Interfering signals can be identified using the Spectrogram display. Master Software Tools (MST), comprehensive data management and analysis software is user friendly and it is easy to manage, archive and analyze system performance, trends and the general health of monitored base stations. The MT8222A is shipped with a User's Guide, a soft carrying case, an AC - DC Adapter, an Automotive Cigarette Lighter/12 Volt DC Adapter, a CD ROM containing Master Software Tools and USB driver, a USB A-mini B cable, an Ethernet Cable, a rechargeable Li-ion battery pack, a 2 GB Compact Flash module, a type-N male to SMA female adapter, a type-N male to BNC female adapter. Every MT8222A has a one year warranty for parts and labor and is shipped with a certificate of calibration and conformance. Applications Spectrum analysis-anytime, anywhere (100 kHz to 7.1 GHz) Cable and antenna testing, one port and two port measurements (10 MHz to 4.0 GHz, 10 MHz to 6.0 GHz optional) WCDMA/HSDPA node B analysis GSM/GPRS/EDGE base station analysis TD-SCDMA base station analysis LTE Analysis Fixed WiMAX base station analysis Mobile WiMAX base station analysis CDMA base station analysis EVDO base station analysis Interference detection and location T1/FT1 functional tests T3/T1/FT1 functional Tests 2 Mb/s - E1 functional tests Features Handheld, battery-operated design, weighing 4 kg (9 lbs) Large daylight viewable transflective color display Best in class Displayed Average Noise Level < -163 dBm typical in a 1 Hz resolution bandwidth at 1 GHz Vector corrected 1-port and 1-path 2-port measurements FlexCal Built-in variable 12V to 32V bias tee Demodulate WCDMA signals using Over The Air (OTA) measurement while sitting in the car WCDMA/HSDPA TD-SCDMA, LTE, GSM/GPRS/EDGE, CDMA, EVDO, Fixed WiMAX, RF and demodulator measurements Automated Pass/Fail mode for WCDMA/HSDPA, GSM/GPRS/EDGE, CDMA, EVDO, TD-SCDMA, Fixed WiMAX and Mobile WiMAX measurements Locate and measure the interfering signal Using spectrogram measurement identify intermittent interference Measure frequency, bandwidth and power of multiple transmitted signals Create up to 20 custom channels and scan channels by frequency or channel number GPS receiver for location information and frequency oscillator accuracy enhancement Multilingual User Interface (English, Chinese, French, German, Japanese, Spanish, Korean, Italian) Rechargeable/field-replaceable Li-Ion battery Master software Tools (MST) Features Stores an unlimited number of data traces for comparison to historical performances Capability to create custom languages using Master Software Tools and download the languages into the MT8222A Using Master software tools create and download signal standards, pass/fail lists, cable lists and antenna factors Automatically update the unit with the latest firmware Coordinate cell site locations using Microsoft Mappoint and GPS location mapping Remote control of the MT8222A via Ethernet link Specifications: Cable and Antenna Analyzer Frequency Range: 10 MHz to 4 GHz Frequency Accuracy: 25 ppm Frequency Resolution: 10 kHz Data Points: Low, Medium, High (137/275/551) Interference Immunity: On-Channel: +17 dBm On-Frequency: 0 dBm (RF Out) +30 dBc RF In 1-Port Power: High: 0 dBm (typical) 2-Port Power: High: 0 dBm (typical) Low: –35 dBm (typical) Corrected Directivity: 42 dB (10 MHz to 6 GHz) 1-Port Accuracy: = <0.8 + | 20 log (1 ±10–E?/20) | dB, typical E? = Directivity – Measured Return Loss System Dynamic Range: 80 dB, 10 MHz to 3 GHz 70 dB, >3 GHz to 5.5 GHz 65 dB, >5.5 GHz to 6 GHz Return Loss: Range: 0 to 60 dB Resolution: 0.01 dB VSWR: Range: 1 to 65 Resolution: 0.01 Cable Loss: Range: 0 to 30 dB Resolution: 0.01 dB 1-Port Phase: Range: –180° to +180° Resolution: 0.01° Smith Chart: Resolution: 0.01 2-Port Gain: Range: –120 to 100 dB Resolution: 0.01 dB 2-Port Phase: Range: –180° to +180° Resolution: 0.01° Distance-to-Fault: Fault Resolution (meters): (1.5 x 108 x vp)/?F vp is the propagation constant and ?F is F2-F1 in Hz Horizontal Range (meters): 0 to (data points-1) x Fault Resolution to a maximum of 1500m (4921 ft.) where datapoints = 137/275/551 Vertical Range (Return Loss): 0 to 60 dB Vertical Range (VSWR): 1 to 65 Spectrum Analyzer Frequency: Frequency: 100 kHz to 7.1 GHz Maximum Continuous Input: +30 dBm Tuning Resolution: 1 Hz Frequency Reference: Aging: ±1 ppm/10 years Accuracy: ±0.3 ppm (25 °C ±25 °C) + aging Frequency Span: 10 Hz to 7.1 GHz plus 0 Hz (zero span) Sweep Time: Minimum 100 ms, 10 ?s to 600 seconds (zero span) Sweep Trigger: Free run, Single, Video, External Resolution Bandwidth: (–3 dB width) ±10%, 1 Hz to 3 MHz in 1–3 sequence 8 MHz demodulation bandwidth Video Bandwidth: (–3 dB) 1 Hz to 3 MHz in 1–3 sequence SSB Phase Noise: –100 dBc/Hz max at 10, 20 and 30 kHz offset from carrier –102 dBc/Hz max at 100 kHz offset from carrier Amplitude: Measurement Range: DANL to +30 dBm Absolute amplitude accuracy Power Levels >=–50 dBm,

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	Anritsu
Model	MT8222A
