Anritsu Eagle Ckt050a Calibration Kit Y-type-open/load/short 4ghz

US $385.00

Las Vegas, Nevada, United States
Jan 29th

Open on mobile:
QR code

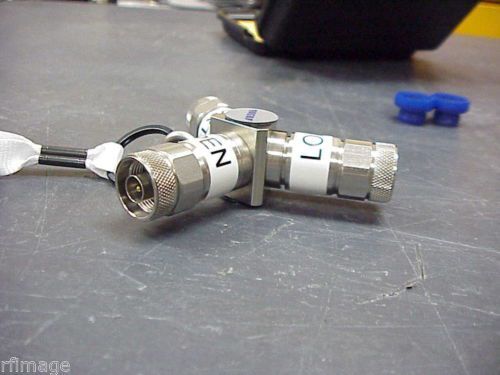

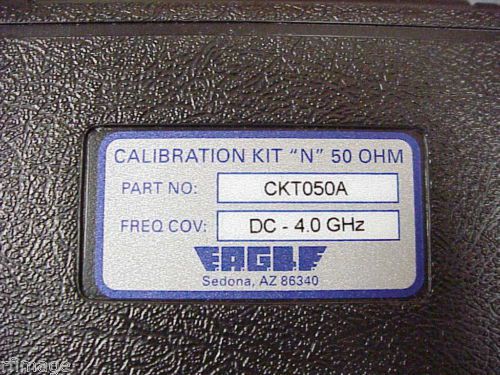

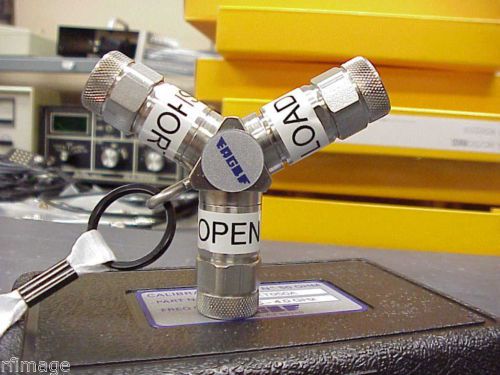

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! 2.7.3 CKT050A, Open Short Load DC-4.0 GHz Features High Termination accuracy Used to calibrate hand-held analyzers Use to calibrate Sitemasters One year calibration cycle Power rating: 2 watts continuous Calibration plot of termination included Certificate of calibration included Rugged Carrying Case included Low Cost CALL PAUL AT 1-702-285-3432 EMAIL VIA EBAY EMAIL Applications This kit is used to verify or calibrate handheld analyzers such as the Anritsu sitemaster, Agilent Fieldfox, Bird Site Analyzer, or Aeroflex 3500 Test Set. It can also be used to verify accuracy of return loss bridges. Description This kit contains one device which consists of an open, short and load. The open, short and load are identical to stand alone devices which are marketed by EAGLE. Each device has a special cap that allows it to be screwed into a stainless steel body which creates one handy unit. This is ideal when working in a precarious location where dealing with individual devices is unwieldy. The 50 ohm termination is used during the "load" portion of a calibration. There is also an open. Also provided is a precision short The short occurs at 0.75" of the reference plane of the "N" connector. Description-continued The components are contained in a durable plastic case which protects the CKT050A during transit from one job to another. A foam insert with cutouts for the CKT050A and for the three connector protectors is included. The protectors can be stored in the case when the CKT050A is in use. When installed this provides a dimensionally accurate outer transmission line for the female pin of the device being calibrated. Availability The parts that are supplied with these kits are normally in stock so a kit can be constructed within one week of order. Specifications & Ordering Please see the next page for specifications, and ordering information. Refer to the price list on this site for pricing and terms for this product. SPECIFICATIONS Electrical Refer to individual component sheets for detailed specifications. Mechanical Case size: 6 1/2 " Long x 4 5/8 " Wide x 1 3/4" High Weight: < 2.0 lbs Table of Supplied Components Item Part No Description Function Load RFT050NM2 Termination, 50 ohm, DC-4.0 GHz > -42 dB to 1.0 GHz > -40 dB to 4.0 GHz Provide accurate 50 ohm point. Open RFT-INFNM2 Termination, open, DC-6.0 GHz Provide proper 50 ohm dimension to line Short RFT000NM2 Termination, 0 ohm, DC-6.0 GHz Provide short at reference plane of N conn Case and Foam 01 2710 A002260 Case, with foam padding Carrying case for everything

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	EAGLE ANRITSU
Country of Manufacture	United States
Model	CKT050A
