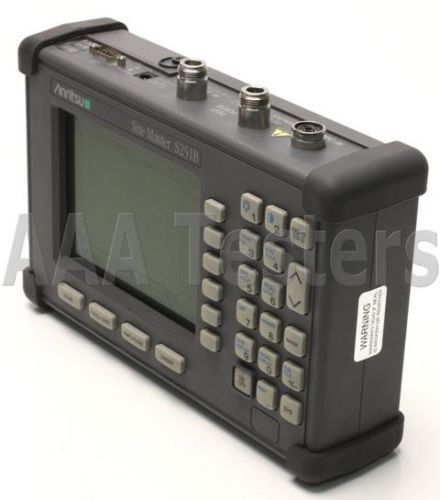

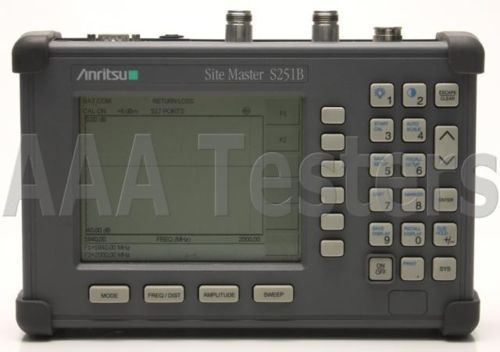

Anritsu Sitemaster S251b Twoport Transmission Cable Antenna Analyzer 5 & 10a

US $2,995.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

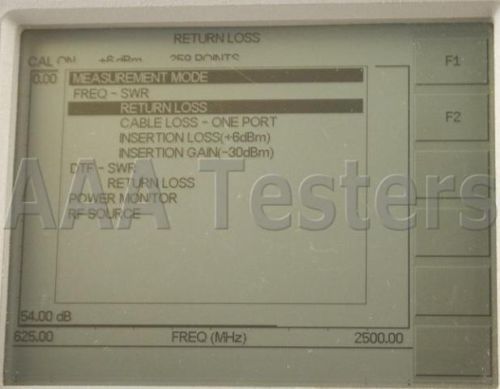

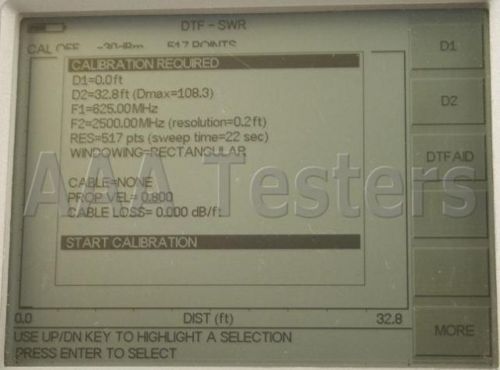

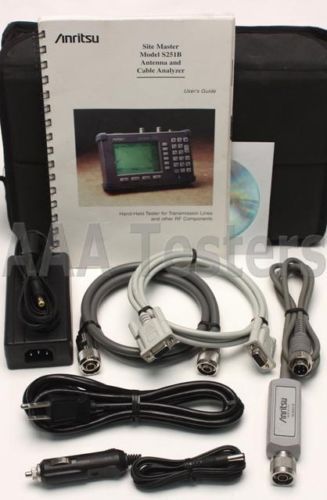

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Anritsu SiteMaster S251B Broadband Two-Port Transmission Line and Antenna Analyzer (BC# 11615) Option 10A: Bias Tee Option 5: Power Monitor Armored Test Port Cable Anritsu 5400-71N50 1MHz - 3GHz Detector Battery Pack AC Adapter/Charger DC Car Charger Power Cord RS-232 PC Interface Cable Anritsu SiteMaster Software Tools Hard Copy User Manual Carrying Case BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Anritsu SiteMaster S251B Broadband Two-Port Transmission Line and Antenna Analyzer With Options 10A Bias Tee & 5: Power Monitor Installed Frequency Range 625Mhz to 2500Mhz Includes 1MHz - 3GHz Detector, Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 120 Day Exchange Warranty The Site Master S251B is a broadband two-port transmission line and antenna analyzer that performs return loss (SWR), cable loss and distance-to-fault measurement for cellular, PCS/GSM and ISM market applications. Site Master’s patented high RF interference rejection enables the S251B to accurately measure cable and antenna systems in the presence of high RF activity. In addition, the high dynamic range (>80 dB) enables the S251B to perform antenna-to-antenna isolation measurements. Selectable output levels of +6 dBm or –30 dBm and optional built-in Bias Tee provide the S251B with a convenient means of verifying Tower Mounted Amplifier (TMA) gain before and after installation. Status of applied voltage and current load indicate the operation and function of the TMA. The Site Master Software Tools supplied with each S251B operates with Windows 95, Windows 98, and Windows NT. Software Tools can download traces and cable parameters to S251B via the RS-232 serial port. FEATURES Accurately Tests Return Loss/SWR in Transmission Line and Antenna Systems High Immunity to Live Site RF Interference Extended Distance-to-Fault Range 10 User Configurations include Calibrations Increase Current Capability (to 240 mA) with Built-in-Bias Tee Gain/Insertion Measurement RF Source 625 to 2500 MHz at 10 kHz steps Trace Storage with Date/Time Stamp, Alphanumeric labeling (up to 200 memory locations) Trace and Cable Parameters Downloadable to Site Master Trace Overlay, Trace Math Large VGA Display (640 x 480) Display Resolution Settings: 130, 259, 517 data points 5-Segment Limit Line Printer Driver Compatibility with Epson, Canon, Citizen, and HP Field Replaceable Battery-NiMH Applications Wireless Network Field Measurements Cable and Antenna testing for VHF, broadcasting, paging, cellular, PCS/GSM, 3G, ISM, WLAN and WLL applications Return Loss measurement Distance-To-Fault measurement Cable loss measurement Tower Mounted Amplifier Testing Enables two port gain/loss measurement with selectable power output and an optional built-in BiasTee Wireless Network Field Measurements Antenna isolation measurement is easily tested with >90 dB dynamic range SPECIFICATIONS Frequency Range: 625 to 2500 MHz Frequency Accuracy: (CW mode) 75 ppm Frequency Resolution: 10 kHz Display Resolution: 130, 259, 517 data points Sweep Rate Typical values w/calibration: 25 ms/data points Immunity to Interfering RF Signals up to*: 2 +10 dBm, RF out +30 dBc, RF in Return Loss: Range: 0 to 54 dB Resolution: 0.01 dB SWR: Range: 1 to 65 Resolution: 0.01 RF Source Frequency Power Output (nominal): 625 to 2500 MHz at 10 kHz step Selectable, –30 dBm or +6 dBm Insertion Loss/Gain: Range: –120 to 100 dB Resolution: 0.1 dB Distance-to-Fault Vertical range: Return loss: 0 to 54 dB SWR: 1 to 65 Horizontal range (meter): 0 to (data points x resolution), (where data points= 128, 256, 512) Horizontal resolution, (rectangular windowing) (meter): (1.5 x 108) (V?)/ ? frequency*3 Cable Loss: Range: 0 to 54 dB Resolution: 0.01 dB Test port connector: Precision N female Maximum input without damage: N(f) test port: +22 dBm RF power detector: +20 dBm, 50 ? Trace memory: up to 200 Instrument configuration with calibration: 10 Custom cable configuration: 50 Temperature: Operating: 0 to 50°C, Storage: –20°C to 75°C Weight: 1.81 kgs (4.0 lbs.) Size: 25.4 x 17.8 x 6.10 cm (10 x 7 x 2.4 in.) General: Electromagnetic compatibility: Meets European community requirements for CE marking. RS232: 9 pin D-sub, three wire serial Bias Tee (Option 10A): +15 VDC, 270 mA peak 25m sec, 240 mA steady state Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Put your listings on autopilot with Kyozou eBay Listing Tools

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Model	S251B
Manufacturer	Anritsu
