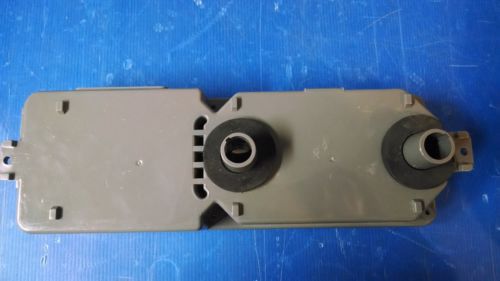

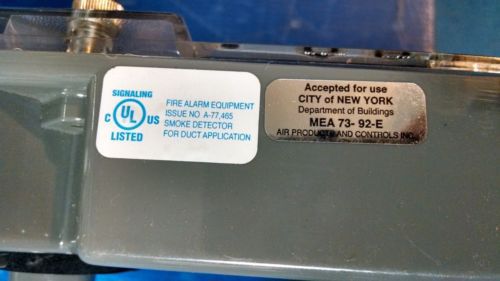

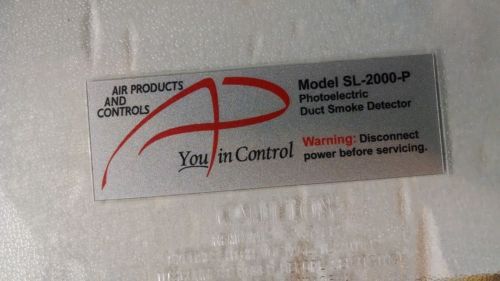

APC Duct Smoke Detector, US $110.00 – Picture 0

APC Duct Smoke Detector, US $110.00 – Picture 1

APC Duct Smoke Detector, US $110.00 – Picture 2

APC Duct Smoke Detector, US $110.00 – Picture 3

APC Duct Smoke Detector, US $110.00 – Picture 4

Apc Duct Smoke Detector

US $110.00

Kansas City, Missouri, United States
Jan 30th

Open on mobile:
QR code

APC Duct Smoke Detector PRODUCT APPLICATION: The SL-2000 Series Smoke Duct Detector is the latest innovation for early detection of smoke and products of combustion present in air moving through HVAC ducts in Commercial, Industrial, and Residential applications. The unit is designed to prevent the recirculation or spread of smoke by air handling systems, fans, and blowers. Complete systems may be shut down in the event of smoke detection. The SL-2000 is designed and built to meet all local code requirements, as well as the NFPA and ICC standards regarding HVAC supply and return duct smoke detectors. Output terminals are provided for a wide range of remote accessories such as horns, strobes, remote status indicators, and test/reset key switches or push buttons. FEATURES: Operating voltages: 230VAC, 115VAC, 24VAC, 24VDC Interconnect up to 30 units for common functions Patent pending "No-Tools Required" front or rear loading and removing sampling/exhaust tubes Patent pending "Test Port Valve" allows for aerosol smoke testing without cover removal Clear cover fitted with four captive "No-Tools Required" thumbscrews Instantaneous cover removal trouble indication Staggered terminal blocks for easier wiring Flashing LED on detector head indicates normal operation Magnet test capability (magnet included) More wiring space than competitive models Footprint allows easy retrofit in many applications without additional drilling Over 15 remote accessories available Duct wall gaskets on back of enclosure are pre-installed Reset switch is also an alarm test switch - competitive models require a magnet or cover removal to test at unit Unit includes green pilot and red alarm visual indicators External mounting tabs do not require cover removal to install Colored cover gasket indicates proper cover seal UL, CUL, CSFM, and MEA Listed Compact, lightweight size means easy handling, lower shipping costs Two sets of 10A form "C" alarm contacts One set of 2A form "A" alarm contacts One set of 10A form "C" trouble contacts Advanced detector head design yields internal dust filtering No additional screens or filters to clean Compatible with building automation and fire alarm systems R2S2 Visit My Store! I Combine Shipping! If you purchase more than one item from my store, I will give you a discounted shipping rate. Contact me for details. I can Expedite your item! If you prefer Priority Shipping, contact me! Please note: I do not guarantee fitment of items! You assume ownership & responsibility by purchasing an item. Be sure you know what you're purchasing. I only guarantee the model number as provided by the factory. If you purchase an item that does not fit your application, I cannot give you a refund.

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“New but taken out for pictures.”
