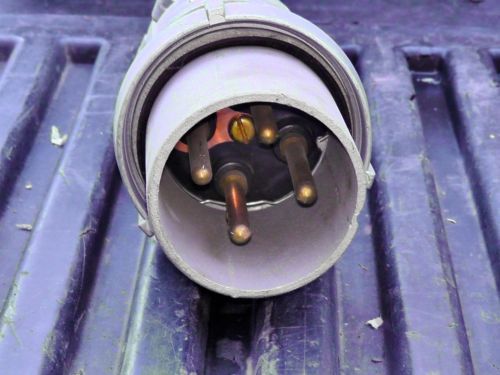

Appleton AEP10463 4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600V AC/ 250V DC, US $550.00 – Picture 0

Appleton AEP10463 4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600V AC/ 250V DC, US $550.00 – Picture 1

Appleton AEP10463 4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600V AC/ 250V DC, US $550.00 – Picture 2

Appleton AEP10463 4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600V AC/ 250V DC, US $550.00 – Picture 3

Appleton AEP10463 4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600V AC/ 250V DC, US $550.00 – Picture 4

Appleton Aep10463 4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600v Ac/ 250v Dc

US $550.00

Belmont, California, United States
Jun 9th

Open on mobile:
QR code

Appleton AEP10463 100 amps 4 pole Appleton AEP10463 4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600 Volt AC/ 250 Volt DC PRODUCT DETAILS • Plug with clamp ring has neoprene gasket. Ring threads onto screw cap receptacle to provide raintight assembly when properly tightened Appleton AE Series Wire clamping ring plug in natural finish has neoprene gasket/copper-free aluminum housing. Ring threads onto screw cap receptacle to provide raintight seal when properly fixed. The 4-Pole 3-wire plug in grounding style-2 is weatherproof and used to supply power to portable/fixed electrical equipment such as welders, generators and more. Plug is rated at 100 Amps and 600 VAC/250 VDC. It provides pressure wire terminal connection and supports wire size of 3 - 1 AWG, 0.875 Inch, 1.437 - 1.750 Inch. It has shell and extra pole grounding. Plug is UL listed. PRODUCT SPECIFICATIONS Amperage Rating 100 Amp Application To Supply Power To Portable Or Fixed Electrical Equipment Such As Welders, Generators, Compressors, Pumps, Similar Apparatus, Shipping Docks Catalog Description Appleton AEP10463 AE Series Grounding Style 2 Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 3 - 1 AWG, Amperage Rating: 100 AMP, Voltage Rating: 600 VAC, 250 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Connection: Pressure Wire Terminal, Finish: Epoxy Powder Coat, Plug Cable Diameter: 7/8 IN, 1-7/16 - 1-3/4 IN, Standard: UL 1682, UL 1686, For AE1042, AE1048 Receptacles And APR10463 Connector Body Catalog Number AEP10463 Connection Pressure Wired Country of Origin USA EU RoHS Indicator N Finish Natural GTIN 00781381137003 Gross Weight 2.650 L Grounding Shell and Extra Pole Height 4.3000 IN Invoice Description English 100A AE PLUG 3W4P STYLE2 Item Plug Length 11.9000 IN Material Copper-Free (4/10 Of 1% Maximum) Aluminum Mfr/Vendor Appleton Number Of Poles 4 Number of Poles 4 Number of Wires 3 ShortDescriptionStripped Appleton-AEP10463-4-Pole-3-Wire-Clamping-Ring-Plug Special Features Grounding style: shell and extra pole; Weatherproof; Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs; Plug with clamp ring has neoprene gasket, ring threads onto screw cap receptacle to provide raintight assembly when properly tightened; Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking; Floating-type plug contacts self-align to receptacle contacts; For welders, generators, compressors, pumps, similar apparatus; Natural finish fiber glass reinforced phenolic insulation blocks Standard UL 1682, UL 1686 Standards UL 1682, UL 1686 Type AE Series, Grounding Style 2, Weatherproof, Clamping Ring UPC 781381137003 Voltage Rating 600 Volt AC, 250 Volt DC Width 5.1000 IN Wire Size 3-1 AWG, 0.875 Inch, 1.437 - 1.750 Inch description APP AEP10463 100A AE PLUG 3W4P STYL feature#1 Plug with clamp ring has neoprene gasket. Ring threads onto screw cap receptacle to provide raintight assembly when properly tightened

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Appleton Electric
Country/Region of Manufacture	United States
Model	AEP10463
MPN	147078
