Applied Kilovolts Ks010paa300 100v-10kv High Voltage Module

US $149.99

Stamford, New York, United States
Jan 29th

Open on mobile:
QR code

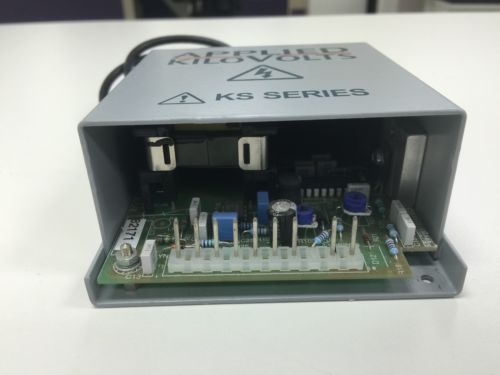

You are bidding on a used Applied Kilovolts KS010PAA300 100V-10kV High Voltage Module. This unit produces output of 100V to 10kV at 0.5mA, positive polarity, best used for general purpose applications as "Monitor CRT, Lens voltages, Focus and high voltage bias, Ion pumps, Image intensifiers". Unit is being sold 'AS-IS' and without warranty (see pictured). Missing molex mating connector. See below for manufacturer specs. Electrical Specification Unit Type Polarity Output Ripple At Full Load KS005PAA300 POSITIVE 50 volts to 5kV at 1mA <0.02% peak to peak KS005NAA300 NEGATIVE KS010PAA300 POSITIVE 100 volts to 10kV at 0.5mA <0.02% peak to peak KS010NAA300 NEGATIVE KS020PAA300 POSITIVE 250 volts to 20kV at 0.2mA <0.02% peak to peak KS020NAA300 NEGATIVE KS030PAA300 POSITIVE 500 volts to 30kV at 0.1mA <0.02% peak to peak KS030NAA300 NEGATIVE Input Voltage +24 volt d.c. ±10% at less than 0.5A. Negative input terminal common to HV earth return. Output Voltage See separate table. Line Regulation Less than 0.1% for input changes of 1 volt. Load Regulation Less than 0.1% for load changes from 10% to full load. (Measured at maximum voltage). Overload Protection Flashover and short circuit proof. Temperature Co-efficient 300ppm/ °C or better. Control INTERNAL potentiometer EXTERNAL potentiometer 10V analogue signal. (0 to +10V gives zero to maximum output, tolerance ±2%). Input impedance nominally Readout Voltage monitor: 0 to +10V represents zero to maximum output, tolerance ±3%, (source resistance 10 kohm). Current monitor: (Stack return type) Optional on all units. Operating Temperature 0 °C to +45°C Storage Temperature -35°C to +85°C R.F.I. Choke input filter. Steel case for low radiated magnetic field. Safety Complies with EN61010 Part1. Mechanical Specification Size All units 115 x 98 x 47mm Output By 0.5 metre of URM43 screened (shielded) cable (KS030P & N by 0.7 metre of TV30) Fixings M3 clearance holes. Bracket AK20035 available for end mounting. Weight 0.65g

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

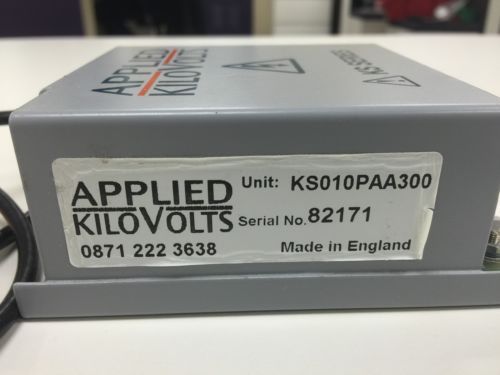

Seller Notes	“Unit was purchased for use with test equipment, but was never used. Unit in excellent condition, wear on ID label, some minor outer case wear”
