Asco,8316g064,1/2" Npt Brass 3way Body,nc,air/water,120/60, Solenoid Valve,nib

US $148.99

  • Garnerville, New York, United States
  • Jan 29th
Open on mobile:
QR code

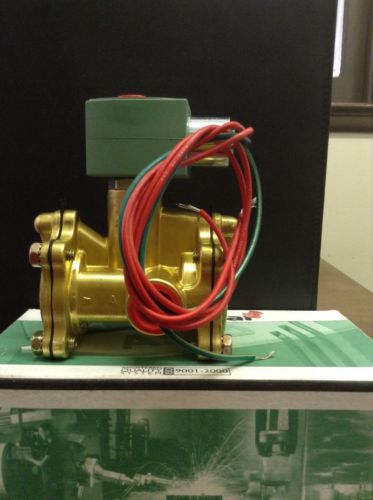

ASCO Red Hat pilot operated 3-way normally closed solenoid valve model #8316G064 will provide control of air, inert gas, water, and other clean flowing media compatible with the materials of construction. These heavy-duty brass body diaphragm poppet valves have resilient seating for tight shutoff. This valve has three ports - one inlet, one outlet and one exhaust port. The inlet flow is blocked and the outlet is connected to the exhaust port with the coil de-energized. The inlet flow is connected to the outlet with the coil energized. 8316 series valves can be mounted in any position and can be used to pilot large process valve actuators. 120/60, 110/50 voltage. Type: 3-Way Normally Closed (energize to open) Pipe Size: 1/2" NPT, 5/8" Orifice, Cv 3.2 Construction: Brass Body, NBR (buna-n) seals, other materials include stainless steel 305, 430F, 302, 17-7PH, CA (Delrin) and a copper shading coil  Pressure (Min-Max): 10-150 PSI (air), 10-125 PSI (water)  Flow Rate (Min-Max):10-36 GPM (water), 44-315 SCFM (air)                   Coil Type: General purpose/watertight, dusttight, corrosion resistant                   Enclosure Rating: Type 1, 2, 3, 3S, 4 & 4X                   Coil Rating: 120/60 VAC, 6.1 watts, class F continuous duty service                   Coil Termination: 1/2" Conduit Hub with 18" lead wires                   Agency Approvals: UL Listed, CSA certified, CE Media Temperature: 180 °F maximum Ambient Temperature: 32-125 °F nominal (minimum 0 °F where freezing water is not a factor) I am not a distributor or authorized dealer of Asco valves and item will be sold as new old stock  without any implied manufacturer or seller warranty/guarantee. Listing is for (one) valve with (14) total valves available.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Asco Red-Hat
Country/Region of Manufacture Mexico
Model 8316G064
