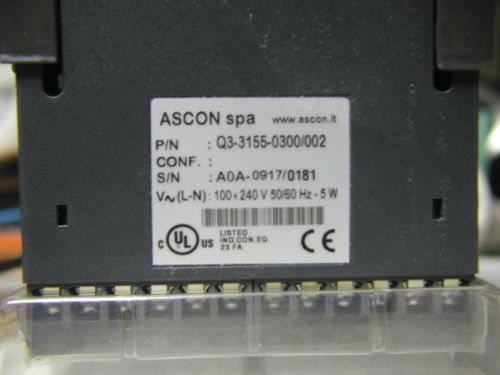

Ascon spa 1/4 DIN Double action controller with analogue output, US $750.00 – Picture 0

Ascon spa 1/4 DIN Double action controller with analogue output, US $750.00 – Picture 1

Ascon Spa 1/4 Din Double Action Controller With Analogue Output

US $750.00

Gap, Pennsylvania, United States
Mar 5th

Open on mobile:
QR code

You will be getting two (2) of these units always need a spare. 1/4 DIN Double action controller with analogue output. - Panel mount controller: 96 x 96 mm - 1 Configurable input - 1 optional auxiliary input - Up to 4 digital outputs – 1 optional analogue output - ON/OFF , PID single or double action, floating servomotor controller with * Start-up + Timer (optional) * Remote setpoint * 2 memorized setpoints - RS 485 ModBus RTU slave serial port - 2 Display lines: 4 digits (PV) h: 12 mm 4 digits (SP) h: 9 mm Green colour Process inputs: 1 Universal input - Thermocouples: L, J, T, K, S, R, B, N, E, Ni-NiMo, W3, W5 - RTD: Pt100 - Voltage (mV): 0/10...50 mV - Current (mA): 0/4...20 mA (with 2.5 ? shunt resistor) - Custom linearisation and IR probes (J.K type) Accuracy : 0.25% ±1 digit (probes) or 0.1% ±1 digit (mA or mV) Auxiliary input - Voltage (V): 0/1...5 V, 0...10V(optional) - Current (mA): 0/4...20 mA (optional) - 1 current transformer input for load monitoring (optional) 50 or 100 mA jumper selectable 3 digital inputs - Free Voltage Keyboard Mechanical: 6 multifunction keys Process outputs 1 High level analogue output(optional): - For process control - For PV/SP retransmission - Current (mA): 0/4...20 mA Up to 4 Digital outputs: OUT1/OUT2 - RELAY SPST-NO, 2A/250Vac - TRIAC 1A 250 VAC OUT3 - RELAY SPDT, 2A (250VAC) OUT4 - RELAY SPST-NO, 2A/250Vac - SSR Drive 0...5Vdc, ±20%, 30 mA Max Power supply: - 24VDC/VAC - 100… 240 Vac (50/60 Hz) Transmitter power supply: 24 Vdc ±20%, 30 mA Max Functions - ON/OFF control - PID single action or double action (Heat/Cool) - Floating servomotor - Auto/Man station with bumpless action - Start-up + Timer (optional) - Remote setpoint - 2 memorized setpoints - 16 segment programmer (optional) Autotuning - Autotuning with natural frequency - Autotuning with step response Alarms - Up to 3 configurable alarms Communication and programming: Interfaces - RS 485 port with ModBus RTU and J-bus (slave) protocols (optional) Programming/configuration tools: - Code selection - Easy to use front interface for configuration - Configuration software available for PC Installation Mounting method: panel mount Case dimensions: 96 x 96 mm(1/4 DIN ) Connections Signals connection 36 poles 5.5 mm? screw terminals block Protection factor: IP 65 front protection Display and indicators 2 Display lines: 4 digits (PV) h: 12 mm 4 digits (SP) h: 9 mm Green colour 8 status + 3 Alarm + 2 control output LEDs Connectable to: - SCADA for monitoring, traceability and remote management - DX and DY gateways for remote monitoring

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	Q3
MPN	Q3-3155-0300-002
