Assembleon Topaz Xii Pick & Place System W/ Lcs

US $59,500.00

San Diego, California, United States
Jan 30th

Open on mobile:
QR code

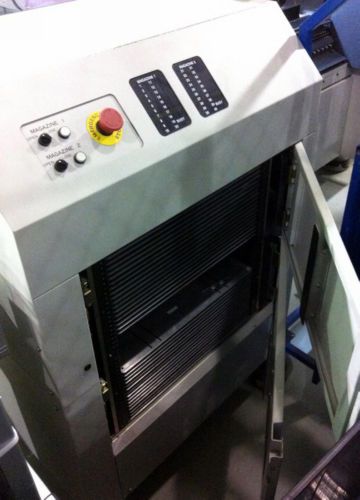

Assembleon Topaz XII Pick & Place System w/ LCS The Manufacturer's Description The Topaz XII is a High Speed flexible machine that can chip shoot with its 8 heads up to 20,000 SMDs per hour. Using a Topaz-XII combined with the Large Component Sequencer (LCS)and you have one machine that does it all!! GEM Series Topaz-XII Specifications Maximum output per hour: 20,000 components per hour (cph) Nominal output per hour: 15,400 cph Placement accuracy at 3 sigma: 50 micron for chips, 35 micron for QFPs Mounting angle: 0 up to +/- 180 (steps of 0.01) Component range: 0.4 x 0.2 mm (01005) to 45 x 100 mm (QFPs) Maximum component height: 6.5 mm Maximum board size: (L x W) 460 x 440 mm Minimum board size: (L x W) 50 x 50 mm Board thickness: 0.4 to 4 mm Number of feeder positions: 96 (8mm tape) Feeder Sizes Available: 8mm, 12 mm, 16 mm, 24 mm, 32 mm & Stick feeders Vibratory feeders also available. WES puts these machines through a 72 point inspection and operational testing to ensure you get a working machine ready for the production floor. ID 111305-KM What Condition is this Item In? This is a used machine that we have obtained from a liquidated facility. It comes as pictured; you can view the pictures to see its overall good condition. It has been refurbished by trained specialists, as gone through a 78 point inspection and is verifiable operational. Please contact us with any additional questions you may have. ID 111305-KM Calibration Additional Cost: TBD We can arrange for the calibration of your unit by an accredited calibration lab. If you choose to let us have your instrument calibrated, please do not checkout until we have re-invoiced you. Contact Us Please don't hesitate to contact us through eBay or over the phone! Email: sales@wesource.com Phone #: (858) 693-1991 Website: www.WESource.com Return Policy You may return most undamaged items purchased at World Equipment Source's eBay store within 7 days of the original delivery. We will pay the return shipping costs if the return is a result of our error. If the item is returned for any other reason you are responsible for the return shipping costs and may be charged a restocking fee of 10 percent or $250.00, depending on which one is lower. No returned merchandise will be accepted without a Return Material Authorization (RMA). Click here to read our full return policy.Shipping Policy World Equipment Source ships many types of delicate electronics all across the world. To insure safe delivery, we take special care when packing our items for shipment. For example, all test equipment and feeders are foam packed. Your handling fee during checkout will reflect the costs associated with safely shipping your item. Click here to read our full shipping policy.Terms and Conditions By purchasing or bidding on our items, you signify that you accept our Terms and Conditions. Click here to read our full Terms and Conditions.
