Astro-med Astromed Mt95k2 Data Acquisition Digital Recorder With Printer

US $500.00

Madison, Connecticut, United States
Jun 9th

Open on mobile:
QR code

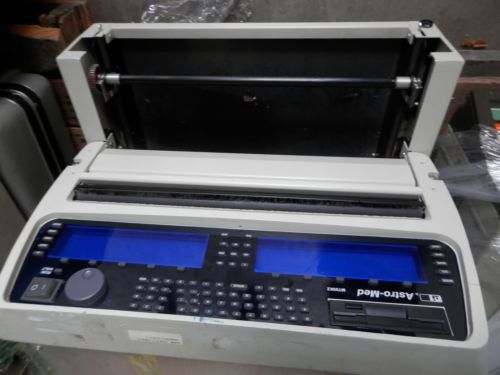

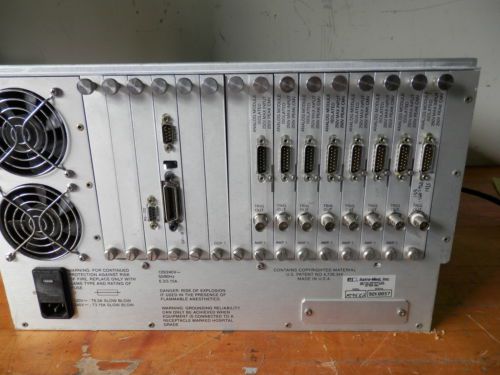

You are looking at loaded Astromed MT95K2 Chart Recorder. This unit has a printer the unit sits on. There are a ton of cables and it has quite a few manuals. We will ship this for 90.00 S/H anywhere in the lower 48 states we will not offer a return so bid accordingly. thank you for looking~ Chart Specifications Recording Method Direct writing thermal array Amplitude Resolution 300 dpi Time Base Resolution 48 dots per mm (dpm) fo rspeeds of 1 mm/hr to 50 mm/sec; 24 dpm for 51 mm/sec to 100 mm/sec; 12 dpm for 101 mm/sec to 200 mm/sec; 8 dpm for 201 mm/sec to 300 mm/sec; 4 dpm for 301 mm/sec to 500 mm/sec. Chart Drive Crystal referenced, micro stepped, bi-polar drive Realtime Speeds 1mm/hr to 200 mm/hr in steps of 1mm/hr; 1 mm/min to 200 mm/min in steps of 1 mm/min; 1 mm/sec to 500 mm/sec in steps of 1 mm/sec. Chart Type and Size Z-fold pack: 16.3" wide, 393 feet long, 400 sheets per pack. Roll chart: 16.3" wide, 500 ft long (requires rewinder option) Realtime Clock Provides time stamping for System Channel and data capture External Speed Control Up to 50 mm/sec referenced to user supplied TTL compatible pulse train (96 pulses per mm). Minimum pulse width is 10 microseconds. Remote Start/Stop Standard via TTL or switch closure Realtime Sample Rates Raw Bus Sample Rate 4 million samples per second Data Sample Rate Up to 200 kSamples/sec per channel Built-in Waveform Monitor Monitor Type Bright vacuum fluorescent Minimum Time Base 10 milliseconds per dot Effective Speeds Standard mode follows chart up to 50 mm/sec. Fast Mode is approximately 24 times the chart speed, up to 50 mm/sec. Waveform Channels Maximum Number of Channels 32, can mix analog and digital Nominal Bandwidth 20 kHz Full Scale Waveform Amplitudes 170 mm (100 divisions); 85 mm (50 divisions); 51 mm (50 divisions); 43 mm (50 divisions); 25 mm (20 divisions); 17 mm (20 divisions); 11 mm (10 divisions); 9 mm (10 divisions). Metric grids also available. Over-Range ±10% of full scale except for 170 mm (±5%) Grid Appearance Major and minor divisions can be turned on and off individually Grid Synchronization Grid time lines can be synchronized to either internal or external time references Realtime Recording Formats Standard Default 8 waveforms with 8 channel label buffers in both overlap and separate channel mode Disk Based Formats A variety of 8, 16, and 32 waveform chart formats are supplied on a 3.5" DOS compatible disk which comes standard with all units User Designed Formats The user can design unique charts using standard menus. Up to 50 of these formats can be saved on the personal Disk supplied with each unit for quick and simple chart setups Data Logger Numeric reporting of waveform data in engineering units Dual Speed Systme toggles between any two chart speeds based on time interval or trigger Timed Recording System can be programmed to start and stop recording at specific times Line Print 80 columns x 66 rows, 500 cps Rotated Line Print 160 lines printed at 90° rotation Page Print Two 80 column x 66 row pages, 1000 cps Annotation System Log Channel Prints time, date, speed, time base and function on left chart edge Waveform ID A two digit code printed next to each waveform Waveform Buffers 32 annotation buffers. Standard buffers are 128 characters long On-the-fly Buffer One additional 128-character annotation buffer, which can be positioned anywhere across the chart and printed with a keystroke Signal Conditioner Buffer Internal gain and zero position settings are automatically printed as the alst 40 characters of the waveform text buffers Standard Event Markers System Event Standard with glitch capture. Operates from front panel key or external input (TTL or switch closure) Tri-level Time x1, x10, x100 based on user choice of reference Tri-level Reference Internal: 0.01, 0.02, 0.04, 0.1, 0.2, 0.4, 1.0, 3.6, 6 seconds. External: any available time code start pulse Tri-level Location Either right edge, left edge or both, selectable Additional Markers Up to 32 Basic Triggering System Front panel, host, external TTL or switch closure Computer Interfaces RS-232C Baud rate selections from 300, 1200, 2400, 4800, 9600 and 19200, via front panel. Also includes XON/XOFF and DTR/DSR capabilities GPIB (IEEE-488) Parallel interface, with address selections from 0 to 30 Calibration Self-Calibration Calibrates to an internal precision voltage source (traceable to NIST) Additional Specifications Security The K2 provides security by password Approvals for Safety ETL listed to UL544 verified conformity to EN6060-1 (IEC-601-1) Approvals for EMI/RFI Verified conformity to FCC Part 15, Subpart B, Class A EN 55022 (CISPR) Class A, RM50082-1 (IEC-801, -2, -3, -4) Dimension 10.5" (266.7mm) High x 19"(482.6mm) Wide x 20" (508 mm) Deep Weight 56 lbs (25.4 kg) Environmental 0 to 40°C, 5 to 95% RH, non-condensing Power 120/240 VAC, 50/60 Hz, 700 Watts max., fused
