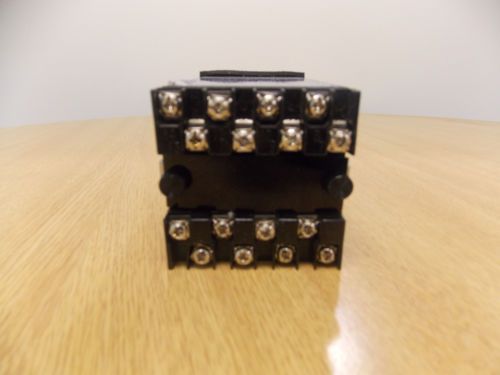

ATC Series 353 Automatic Timing & Controls Time Delay Relay Panel Mounted Timer, US $275.00 – Picture 0

ATC Series 353 Automatic Timing & Controls Time Delay Relay Panel Mounted Timer, US $275.00 – Picture 1

ATC Series 353 Automatic Timing & Controls Time Delay Relay Panel Mounted Timer, US $275.00 – Picture 2

ATC Series 353 Automatic Timing & Controls Time Delay Relay Panel Mounted Timer, US $275.00 – Picture 3

ATC Series 353 Automatic Timing & Controls Time Delay Relay Panel Mounted Timer, US $275.00 – Picture 4

ATC Series 353 Automatic Timing & Controls Time Delay Relay Panel Mounted Timer, US $275.00 – Picture 5

ATC Series 353 Automatic Timing & Controls Time Delay Relay Panel Mounted Timer, US $275.00 – Picture 6

ATC Series 353 Automatic Timing & Controls Time Delay Relay Panel Mounted Timer, US $275.00 – Picture 7

ATC Series 353 Automatic Timing & Controls Time Delay Relay Panel Mounted Timer, US $275.00 – Picture 8

Atc Series 353 Automatic Timing & Controls Time Delay Relay Panel Mounted Timer

US $275.00

Morristown, New Jersey, United States
Feb 17th

Open on mobile:
QR code

Input 120 or 240 VAC Rated 5A at 125 VAC, 3A at 28 VDC, 1/20 HP at 125 VAC, Housing 72 mm, weight 2 lbs., Type counters, ATC AutomaticTiming & Control Time Delay Relay Panel Mounted Timer, Shawnee Il, Digital programmable. A compact version of the versatile 333 Timer, the C 353B is its exact functional duplicate. Packaged in a 72mm DIN-Size housing, it occupies 40% less panel space and costs proportionately less. Modern production and assembly techniques have all but eliminated hand wiring, enhancing the reliability and life expectancy of the 353B. CONTROL VERSATILITY: The 353B operates either as a repeat cycle pulse generator or in single-cycle interval or delayed mode. You choose the kind of control action you want by installing jumpers on the terminal block. It also provides a choice of control output. Choose a standard plug-in SPDT relay or optional SPST solid-state switch module plus an independent-24VDC output signal at Terminal 16. COMPUTER TESTED RELIABILITY: The solid-state 353B is manufactured from a series of computer-tested plug-in circuit boards and assembled virtually without hand wiring. Because it has no moving parts in its logic circuits, its life expectancy is practically unlimited. Even the load relay — the 353B’s only significant mechanical component — has a life expectancy of 100,000,000 operations (no load), while the optional solid-state switch module has virtually unlimited life expectancy. As a result, the 353B achieves an overall reliability that surpasses even the high level achieved by previous Shawnee timers. Packaged in a 72mm DIN-size housing, the 353B occupies 40% less panel space than previous IC timers. Modern production and assembly techniques have substantially reduced manufacturing costs and resulted in a 45% cost saving Packaged in a 72mm DIN-size housing, the 353B occupies 40% less panel space than previous IC timers. Modern production and assembly techniques have substantially reduced manufacturing costs and resulted in a 45% cost saving. WIDE RANGE: Each Shawnee II 353B timer covers the overall span of 0.01 SEC to 999.9 MIN in four field-convertible ranges. EASY TO SET: The Shawnee timer is easily and accurately set even with work gloves on. Push any of its four toggle levers in any sequence until the number you want appears above it. You can decrease as well as increase each number by pushing the levers up or down. You can change the setting at any time, even during a cycle. NOISE IMMUNITY: The 353B does not have to be shielded: its transformer power supply, full-wave bridges, buffered logic and other design characteristics render it immune to the electrical noise that is sometimes encountered in industrial environments thus eliminating false starts and reset due to voltage spikes. CYCLE PROGRESS INDICATION: The Shawnee 353B indicating timer provides cycle progress indication on a four-digit display located immediately above the digital setting number wheels. While the non-indicating Model 353B does not provide true cycle progress indication, it has a pilot light which is on during the timing cycle and a legend light which is on when there is power to the timer. OUTSTANDING REPEAT ACCURACY: Unsurpassed among industrial timers regardless of cost, the Shawnee 353B has a repeat accuracy of ± 10 milliseconds on any setting within its overall range of 999.9 MIN, even in the face of wide swings in temperature or voltage and regardless of the amount of reset time between cycles. PLUG-IN AND DUST-TIGHT: All 353B timers feature true plug-in design and are dust-tight from the front of pan

“This part is in excellent working condition. It was removed from a fully functioning machine with less than 900 hours of total lifetime use. We are a machine manufacturing company and often provide upgrades to machinery. The parts that we sell through this site are all cleaned, tested and in good working order”

Brand	ATC
MPN	353B 346 B 30OPX
Model	Automatic Timing Control Relay Delay Timer
Country/Region of Manufacture	United States
