Atlas Gear Gutting Attachment Scaled Drawing Plans #rr720 Milling Machine Lathe

US $95.00

Perth, Ontario, Canada
Jan 30th

Open on mobile:
QR code

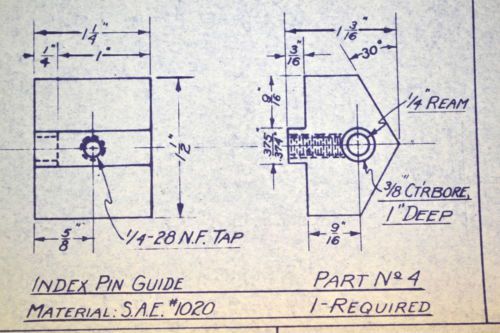

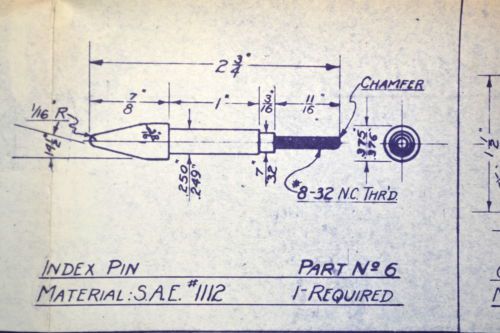

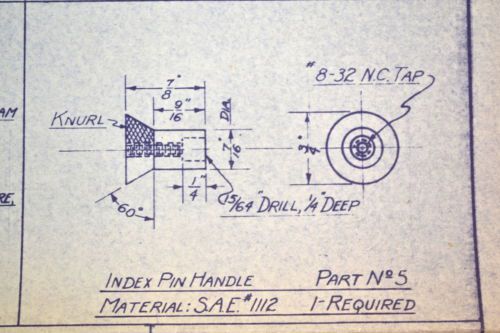

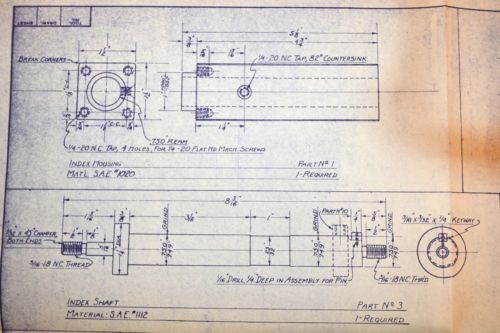

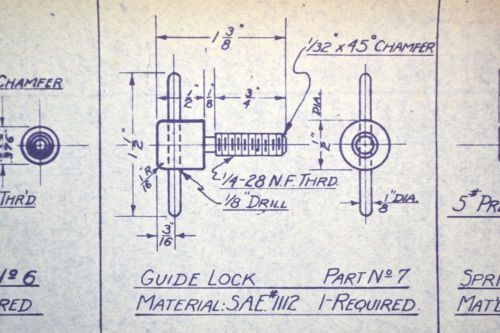

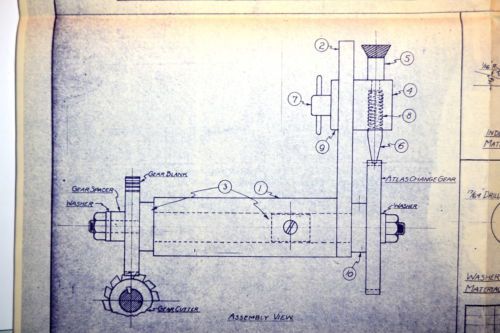

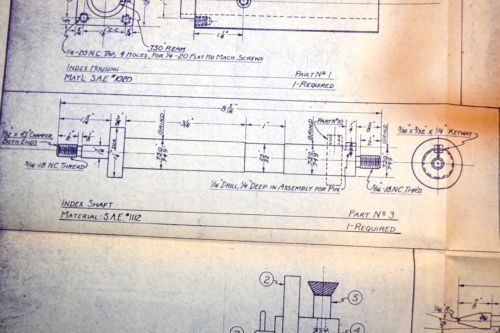

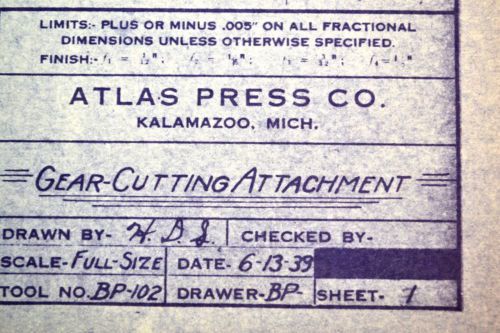

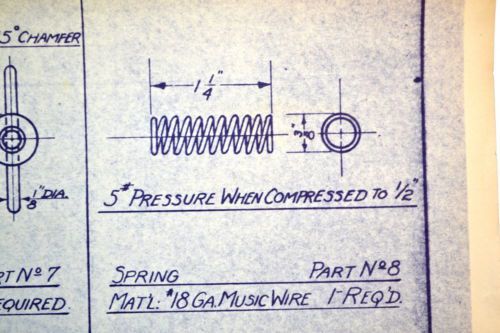

This sale is for ONE previously owned COPY (original not a photocopy) of: Atlas Press Co. Ltd., "GEAR CUTTING ATTACHMENT", (Kalamazoo 1939) 1 oversized page to scale plan drawing. This drawing features views of: index housing, index pin guide slide, index shaft, index pin guide, index pin handle, index pin, guide lock, spring, washed , set collar and assembly view. Please note that this drawing has been folded and as a result there are creases. Also one corner has dog eared creases. This item is in excellent overall condition and would be a useful resource for the owner or repaired of the attachment and/or make a nice gift to the collector of Atlas products. These PUBLICATIONS are being offered at an exceptional price. A rule may appear in the photographs for size reference only and is not part of this sale. Any manufacturing defects are the sole responsibility of the manufacturer. Thank you for looking. We are happy to combine multiple orders. We ship Wednesday to Friday. Please check my other auctions of precision watchmakers, machinists tools and other unique items. All items are described to the best of my ability and questions are encouraged. Canadian Buyers must pay applicable taxes. Please be advised international bidders may have customs or duty charges applied by their government when items cross the border. These are the sole responsibility of the buyer. I have No way to know when and if these charges will be applied. I will not falsify shipping documents, so please don't ask. We now accept PAYPAL for sales with north America. All items shipped to the US are sent by UPS (we offer rates that are nearly the same as postal service) for fast and accurate delivery. The shipping costs listed are for Canada and Continental USA, for Alaska, Hawaii and Overseas please request a shipping quote. All items are sold "as is " with no warranty of performance or suitability.Proper and safe use of any item(s)purchased is the sole responsibility of the purchaser.It is understood that by purchasing any item the purchaser assumes all liability and holds harmless and indemnifies JSR & Father Industrial Machinery & Supplies Inc. and its directors against any damage or penalties associated with: 1. compliance to current or future laws, rules or regulations pertaining to the use or possession of any equipment device or components, 2. any fatality, personal injury or liability arising from the use or possession of any purchased equipment, device or component, 3. any property damage caused directly or indirectly by the use, operation or possession of any equipment, device or component.If any legal action ensues ,the buyer agrees to pay all legal costs of the seller regardless of the outcome. Machine Safety: it is the user's responsibility to provide proper safety devices and equipment to safeguard the operator from harm for any particular use, operation or setup, and to adequately safeguard the machine, or machines, to conform to all Federal, State and Local Government Safety Standards and All Industry Safety Standards. Thank you and good luck. Powered by eBay Turbo Lister

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Excellent condition. fold creases. Begining to yellow. One corner has a dog eared crease.”
