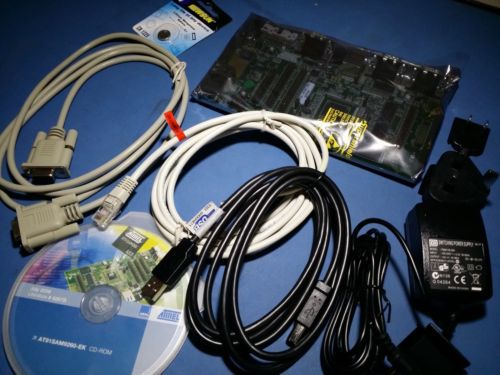

Atmel AT91SAM9260-EK AT91 SERIES SMART ARM EVALUATION KIT, US $150 – Picture 0

Atmel AT91SAM9260-EK AT91 SERIES SMART ARM EVALUATION KIT, US $150 – Picture 1

Atmel AT91SAM9260-EK AT91 SERIES SMART ARM EVALUATION KIT, US $150 – Picture 2

Atmel At91sam9260-ek At91 Series Smart Arm Evaluation Kit

US $150

San Diego, California, United States
Feb 16th

Open on mobile:
QR code

Features • 180 MHz ARM926EJ-S™ ARM® Thumb® Processor – 8 KBytes Data Cache, 8 KBytes Instruction Cache, MMU • Memories – 32-bit External Bus Interface supporting 4-bank SDRAM/LPSDR, Static Memories, CompactFlash, SLC NAND Flash with ECC – Two 4-kbyte internal SRAM, single-cycle access at system speed – One 32-kbyte internal ROM, embedding bootstrap routine • Peripherals – ITU-R BT. 601/656 Image Sensor Interface – USB Device and USB Host with dedicated On-Chip Transceiver – 10/100 Mbps Ethernet MAC Controller – One High Speed Memory Card Host – Two Master/Slave Serial Peripheral Interfaces – Two Three-channel 32-bit Timer/Counters – One Synchronous Serial Controller – One Two-wire Interface – Four USARTs – Two UARTs – 4-channel 10-bit ADC • System – 90 MHz six 32-bit layer AHB Bus Matrix – 22 Peripheral DMA Channels – Boot from NAND Flash, DataFlash® or serial DataFlash – Reset Controller with On-Chip Power-on Reset – Selectable 32,768 Hz Low-Power and 3-20 MHz Main Oscillator – Internal Low-Power 32 kHz RC Oscillator – One PLL for the system and one PLL optimized for USB – Two Programmable External Clock Signals – Advanced Interrupt Controller and Debug Unit – Periodic Interval Timer, Watchdog Timer and Real Time Timer • I/O – Three 32-bit Parallel Input/Output Controllers – 96 Programmable I/O Lines Multiplexed with up to Two Peripheral I/Os • Package – 217-ball BGA, 0.8 mm pitch – 208-pin QFP, 0.5 mm pitch AT91SAM ARM-based Embedded MPU SAM9260SAM9260 [SUMMARY] 2 6221LS–ATARM–15-Oct-12 1. Description The SAM9260 is based on the integration of an ARM926EJ-S processor witfast ROM and RAM memories and a wide range of peripherals. The SAM9260 embeds an Ethernet MAC, one USB Device Port, and a USB Host controller. It also integrates several standard peripherals, such as the USART, SPI, TWI, Timer Counters, Synchronous Serial Controller, ADC and MultiMedia Card Interface. The SAM9260 is architectured on a 6-layer matrix, allowing a maximum internal bandwidth of six 32-bit buses. It also features an External Bus Interface capable of interfacing with a wide range of memory devices. UNIT COMES COMPLETE BOXED Alternative Lots May Be Available! Browse Our Entire Store. See Anything Else You Like, Or Would Like to Combine Lots? Contact Us at 1+ (858)-693-1991

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Brand

Atmel
