Autoclave Engineers 30vm4072 Ht High Pressure Temp Needle Valve 30,000 Psi 316ss

US $124.95

Greeley, Colorado, United States
Feb 14th

Open on mobile:
QR code

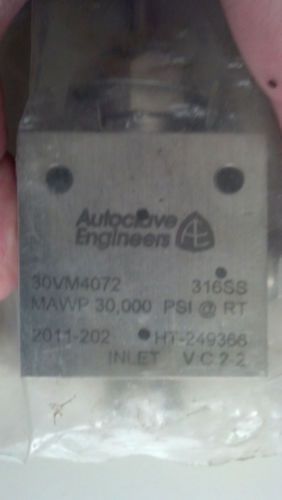

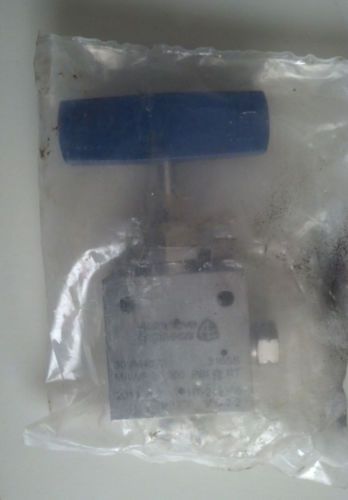

This is new in plastic but no box. Plastic Bag is dirty on outside but still sealed. This is rated to 30,000 Psi and is the HT rated to 1200°F. HT- extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C). It says 30VM4072 316SS MAWP 30,000 PSI @ RT 2011-202 HT-249366 V.C. 2-2 High Pressure Valve Features: Tubing size 1/4” Non-rotating stem prevents stem/seat galling. Rising stem/barstock body design. Metal-to-metal seating achieves bubble-tight shut- off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance. Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque. Specifications: Pressure Rating at Room Temperature: 30000 psi/2068 bar Outside Diameter Tube: 1/4 inch/6.35 mm Stem Type: VEE Valve Pattern: 2-Way Angle Connection Type: F250C Orifice Diameter: 0.094 inch/2.39 mm Rated Cv: 0.12 A-Width: 2.00 inch/50.80 mm B-Length: 1.00 inch/25.40 mm C-Length:0.50 inch/12.70 mm D-Height: 1.12 inch/28.45 mm E-Height: 2.00 inch/50.80 mm F-Length: 3.00 inch/ 76.20 mm G-Packing Gland Mounting Hole Drill Size: 1.00 inch/25.40 mm G1-Bracket Mounting Hole Size: 0.22 inch/5.59 mm H-Height: 4.62 inch/117.35 mm M-Length: 0.69 inch/17.53 mm N-Height: 0.38inch/9.65 mm Block Thickness: 1.00 inch/25.40 mm Please ask any questions I will leave feedback once transaction is complete and feedback has been left for me. Thanks

“New sealed in plastic but no Box”
