Automatic Changeover Module Airgas Y11cp440r580 High Puritycga580 4cyl 10-200psi

US $1,395.00

Encinitas, California, United States
Jan 30th

Open on mobile:
QR code

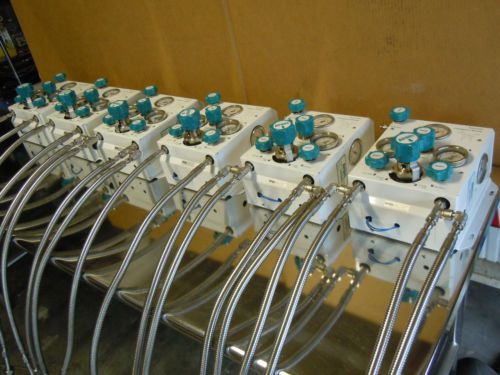

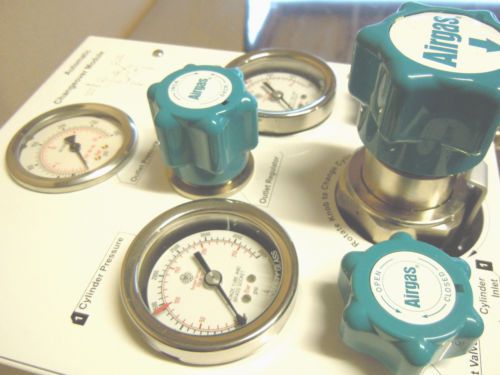

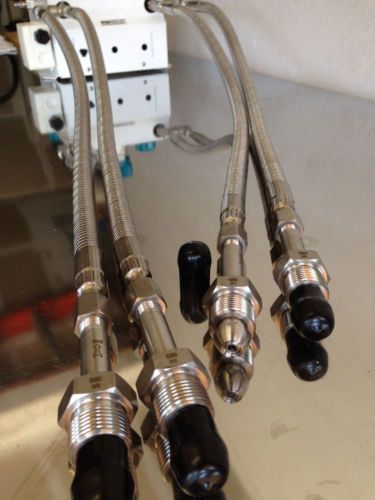

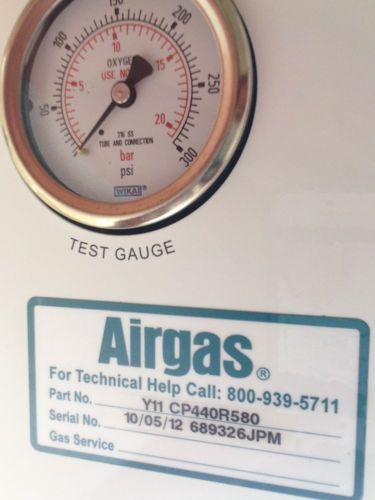

For your consideration is a like new AirGas Y11CP440R580 High Purity Automatic Compressed Gas Changeover Panel 4 Cylinder - 4 Hose CGA580 connections with 33" Stainless Steel hoses *Appears almost unused, especially the Hose Connections see- photos *Gas Service: Argon, Helium, Krypton, Neon, Nitrogen, Tetra Fluoro Methane, Xenon Model: Y11CP440R580 Y13-CP445DRE 120181 Serial: 10/15/12 689326JPM *Included: Small Electrical Box - see photos Specs:http://www.airgas.com/browse/productDetail.aspx?Category=403&product=Y11CP440R580 This high-purity brass automatic changeover panel provides continuous, uninterruped gas supply on installations where a reserve sylinder is used. The unit consists of two identical regulators - on delivering gas at a slightly higher pressure than its twin. When the service cylinder is empty, the unit automatically withdraws gas from the reserve cylinder, eliminating the need to shut down the system to replace empty cylidners. The indicating pressure switch gauges denote which cylinder is in use. The high-purity design and components make this system ideally suited for chromatography and laboratory gas applications. **THIS UNIT RETAILS FOR 4005.00 NEW! Features: Automatic Changeover-provides uninterrupted high-purity gas supply. Control Knob-permits safe removal of the empty cylinder while another cylinder is in use. Convoluted Hastelloy C22 Diaphragms - provide superior leak integrity without contamination from a non-metallic liner or seal. Indicating Pressure Switch Inlet Gauges Standard - magnetically actuated reed switch capable of operating low voltage annuciator, lights or displays switch point can be adjusted between 2% & 90% of full scale Integral Check Valve in CGA - virtualy eliminates atmospheric contamination that occurs during cylinder change out. Wall mount Six-Sided Enclosed Panel - protects piping, gauges & regulator bodies from direct weather removable side panels for easy field service/repair permits easy on-site installation. Specification: Maximum Rated Inlet Pressure - 3,500 psig Outlet Pressure Ranges - 150 psig (non-adjustable) Maximum Flow Rate - 200 scfh* @ 150 psig (* Based on Air) Ambient Operating Temperature - -40°F to +150°F Designed Leak Rate - Bubble-Tight (helium) Weight - 11 lbs Outlet - 1/4" Compression Pigtails - 30" Stainless Steel Corrugated Bellows, CGA with Check Valve Body - Nickel-Plated Brass or Stainless Steel Bonnet - Nickel-Plated Brass Seat - PCTFE Diaphragm - Hastelloy C22 Inlet Gauges - 2 1/2" Nickel-Plated Brass or Stainless Steel Pressure Switch Enabled Outlet Gauge - 2 1/2" Nickel-Plated Brass or Stainless Steel Filter (40-micron) - Stainless Steel Screen Flexible Metal Pigtails - stainless steel construction provides excellent diffusion and corrosion resistance. ** 6 Similar Units are AVAILABLE! See Last Picture # 4

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Mint like new condition, little or no visible signs of use.”
