Avo Biddle Megger Ttr Turns Ratio Transformer Tester Cat 550005 Nist Calibrated

US $2,600.00

Tottenham, Ontario, Canada
Mar 29th

Open on mobile:
QR code

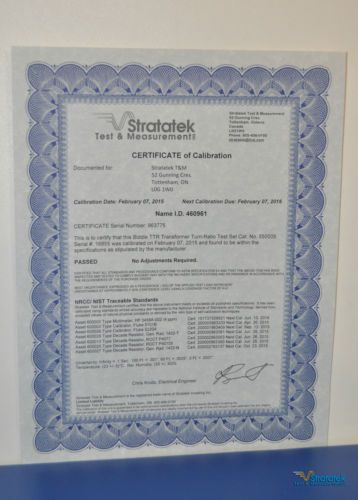

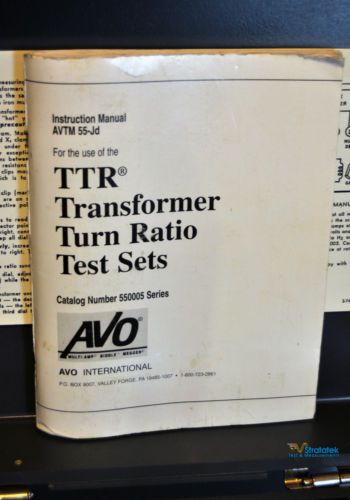

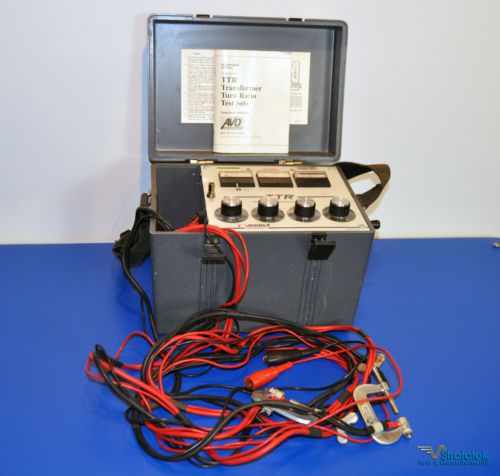

This item is a used AVO Biddle Megger TTR Turns Ratio Transformer Tester Cat 550005 NIST Calibrated. Includes instruction manual, leads, certificate of calibration, and 90 day warranty. All pictures are of the actual unit. This item comes with a 3 Month (90 day) warranty. All functions are guaranteed to work or money will be refunded (buyer pays return shipping only). This item includes a 1 year NIST traceable CERTIFICATE of Calibration, dated February 14, 2015. We Calibrate Your Test Equipment! Contact us for more information on Calibration. The Megger-Biddle TTR test set aids in identifying: Shorted coils, Open circuits, Incorrect connections, Internal faults or tap-changer defects in step regulators as well as in transformers. Provides unmatched accuracy (±0.1%) in a portable design. Packaged in a rugged, compact case. Measures highly sensitive turn ratios up to 129.99:1. An optional auxiliary transformer extends this ratio range to 329.99:1. Single-phase TTR® Transformer Turns Ratio Test Set measures the turns ratio and exciting current of windings in power, potential and current transformers. Deviations in turns ratio readings indicate problems in one or both windings or the magnetic core circuit. The single-phase, hand-cranked model measures highly sensitive turns ratios of up to 129.99:1 with accuracy of ±0.1%. An optional auxilary transformer extends the ratio range to 329.99:1. The TTR set operates on the principle that the voltage ratio of the transformer at no load is practically equal to the true turns ratio. The major source of error in a transformer is a primary impedance drop due to magnetizing current, which is kept to a minimum by excitation at a fraction of rated voltage. By employing a design that meets both of these conditions along with the use of a null balance system, the turns ratio of a transformer can be determined accurately. When measuring the turns ratio of distribution and power transformers, the accuracy is well within 0.1%. APPLICATIONS The single phase model is primarily used for testing single-phase power and distribution transformers, for low-ratio readings up to 129.99:1, or up to 329.99:1 with an auxiliary transformer. It can be used to test three-phase transformers by connecting and testing each phase separately. Any questions or clarifications, feel free to ask Please see our other items! We accept VISA / Mastercard by phone, mail, or email. Paypal is also accepted. International Buyers – Please Note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying. UPS/FedEx brokerage charges are typically higher than Canada Post/USPS/local post office. Will ship worldwide. We make our best efforts to get you the best shipping prices. Contact us for other international rates and we will be pleased to give you a quote. Sales to within Canada are subject to 5% GST. Ontario sales subject to 13% HST.

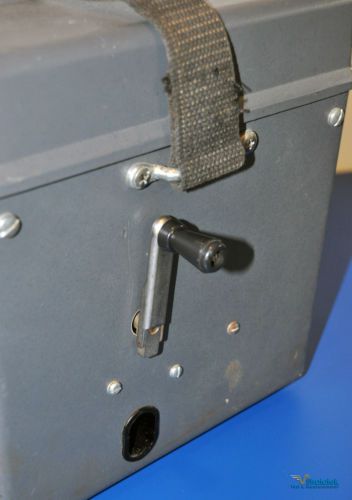

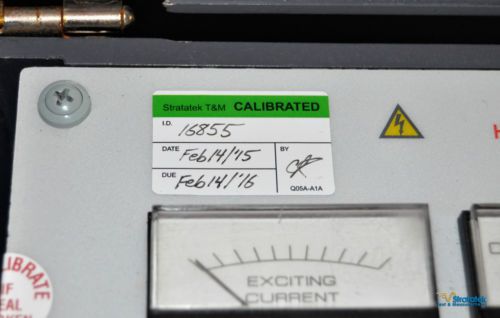

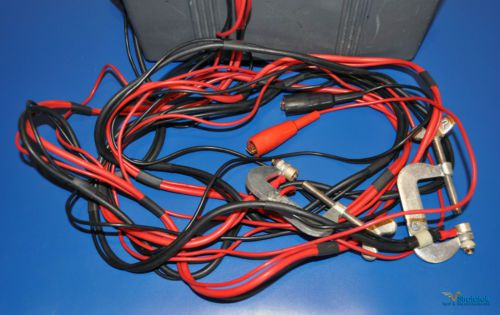

“Great condition. Calibrated February 14, 2015. Unit is hand crank operated. Instruction manual is included. Leads are included as well as a 90 day warranty and certificate of calibration.”

Brand	Megger
Country/Region of Manufacture	United States
Model	550005
