Awid Sentinel-prox Kp-6840 Reader With Keypad/pcsc Private Label Logo On Reader

US $138.00

Picayune, Mississippi, United States
Mar 2nd

Open on mobile:
QR code

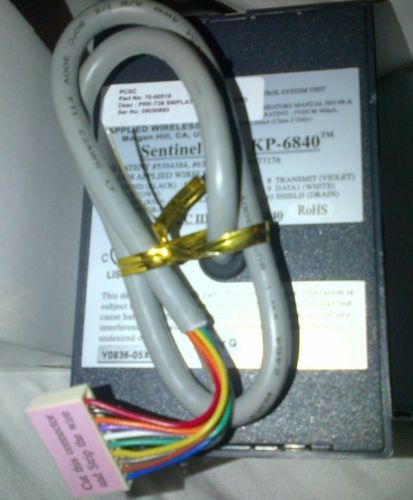

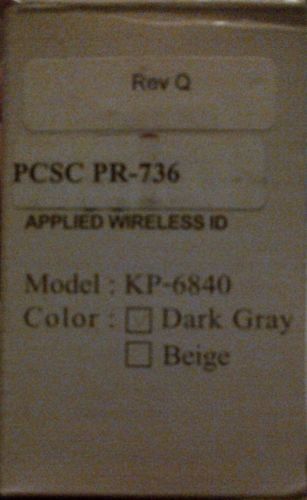

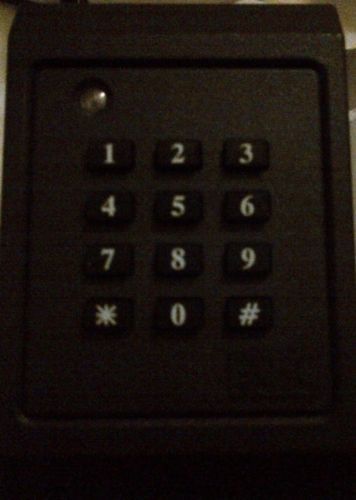

***NEW******AWID Sentinel-Prox KP-6840 Reader with Keypad*******PCSC private label logo on reader********HAS NEVER BEEN USED AND HAS NEVER BEEN INSTALLED/NEW IN BOX AWID’s KP-6840 Proximity Card and Keypad Reader is a switchplate-type reader combined with a 12-key numeric Keypad, in a unit that fits on a single-gang box. Read range with cards is up to 8 inches. The keypad may be used for PIN entry, programming a controller, enrolling card codes, and general data entry. Installation The KP-6840 reader is designed to fit perfectly on a single-gang electrical utility box. The metal-compensation that is built into every KP-6840 reader assures minimal loss of read range when the reader is mounted on a metal surface. The KP-6840 reader also can be fastened by 2 screws on any wall or other surface. Features The KP-6840 contains (a) a 3-color LED to indicate successful card read and access-granted, (b) a beeper for attention and alarm, and (c) a “hold” circuit to delay data transmission. LED and beeper are controlled by the reader itself. All three functions can be controlled externally by the host system. Programming (a) The customer orders the KP-6840 “Revision” that produces keypad data output in either 4-bit or 8-bit key-bursts, or as 26-bit code transmission (like a reader with a 26-bit card). (b) The installer programs the host system for the KP-6840’s operation mode. Operating Modes The KP-6840 can be used for Card + PIN, PIN + Card, Card Only, or PIN Only. Mode selection is made by programming the host system, not by selection in the KP-6840. Testing The reader is self-testing – the LED and beeper alone assure the installer and cardholder of correct performance. The reader is also self-diagnostic – if DC power is unstable, or if electrical noise is induced in the cable, the reader resets and its LED changes to amber. Operation The card reader uses a re-present mode that requires that the user remove the card from the reader before the card can be read again.The KP-6840’s card reader has both Wiegand and RS-232 outputs. The keypad has only Wiegand output. Code transmission from both interfaces is simultaneous. The card reader and keypad outputs share the same data wires. Environment The KP-6840 reader is ready for installation indoors. For outdoor use, protect the KP-6840 by a hood that keeps water off the unit. If temperature is below freezing, use a housing with hinged cover over the keypad. The reader’s ABS plastic enclosure is secure when its cover is on. The unit has epoxy resin over its circuits. Credentials All of AWID’s proximity credentials may be used with the KP-6840 reader. This includes clamshell and graphic cards, keytags, hangtags, and wafers. Read range varies with the credential type.******** NOTE: IF EXPOSED TO RAIN OR SNOW, UNIT MUST BE PROTECTED BY A SUITABLE HOUSING****** OPERATING CHARACTERISTICS Reading Distance: With cards – Up to 8 inches (20 cm) (varies with mounting and cover, voltage applied to reader, and credential type) Reader Excitation Frequency: Transmit and Receive – 125 kHz Antenna Output: Omni-directional low-frequency RF field Indicators (Control by Reader and Panel): LED – 3 colors, red-amber-green Beeper – piezo-electric, 4 kHz tone Power Supply: +5 volts to +12 volts DC ± 10%, linear, regulated; current rating 200 mA or more Communications Protocols: Wiegand interface (for reader & keypad) RS-232 serial interface (for reader only) Code Format – Keypad: Select 26-bit, or 4-bit or 8-bit bursts Cable (For Wiegand Interface): 4 to 7 conductors (not twisted pairs), stranded, 22 gauge, color coded, overall 100% shielded, plastic sheath, to 500 ft PHYSICAL CHARACTERISTICS Dimensions: 4.6 x 3.1 x 0.88 inch (11.7 x 7.9 x 2.2 cm) Weight: 8 ounces (227 g) Material: ABS 2-part enclosure, dark gray only Epoxy resin potting on reader electronics Cable (Integrated with Reader): 10 conductors, 22 gauge, 18 inches long Overall shielded, gray plastic sheath Mounting: Single-gang utility box, wall, cabinet ENVIRONMENT Operating Temperature: -31 to +150 F (-35 to +65 C) Operating Humidity: 0% to 95%, non-condensing CERTIFICATION ISO-9001:2000; FCC Part 15; IC; CE mark; UL Listed; RoHS compliant

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	AWID (APPLIED WIRELESS ID)
MPN	KP-6840
Model	KP-6840 AWID KEYPAD PROX READER
Type	KEYPAD PROX READER
