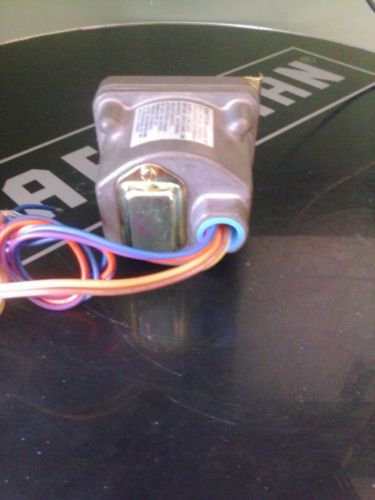

Barksdale Pressure Switch D2H-B150SS, US $150.00 – Picture 0

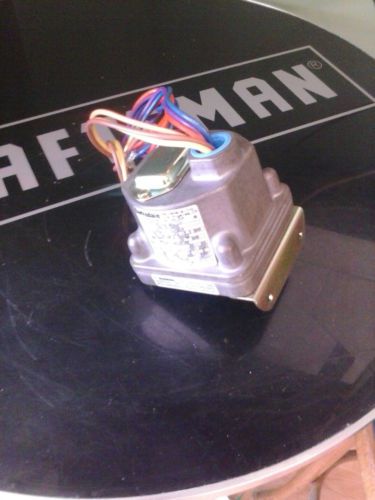

Barksdale Pressure Switch D2H-B150SS, US $150.00 – Picture 1

Barksdale Pressure Switch D2H-B150SS, US $150.00 – Picture 2

Barksdale Pressure Switch D2h-b150ss

US $150.00

Severn, Maryland, United States
Jan 29th

Open on mobile:
QR code

D1S, D2S, D1H, D2H Series Description Barksdale's Diaphragm Pressure Switches offer superior accuracy in a robust package, making them the ideal solution to your industrial pressure control needs. Diaphragm switches are ideal for applications demanding instrument class accuracy and where pressure pulsations are less than 25 cycles per minute. Available in various pressure ranges up to 150 psi, diaphragm switches are suitable for use in either positive pressure or vacuum applications. Single, and dual, and triple circuit models are available. Housed models (D1H & D2H) feature a durable, anodized aluminum enclosure with an integrated 1/2" NPT conduit connector, a tamper-resistant cover for the setpoint adjustment screws, and are rated to NEMA 4 as a standard. For applications requiring a highly accurate switch in a durable package, Barksdale's Diaphragm Pressure Switches are the ideal choice. Technical specifications General Specifications* Accuracy: ± 0.5% of the adjustable range Switch: Type: Rating: Single pole double throw (SPDT) Snap Action; single or dual circuit 10 amps @ 125/250 VAC; 3 amps @ 480 VAC (Class A or H limit switch). Consult sales drawing for ratings of optional limit switches. Wetted Parts: Process Fitting: Diaphragm: Enclosure: 304 stainless steel 17-7 PH stainless steel Anodized aluminum (housed models) Electrical Connection: Free leads approximately 18" long, #16 AWG and 1/2" NPT conduit connection for housed models Enclosure Ratings: Housed Models: NEMA 4 Stripped Models: NEMA 1 Pressure Connection: 1/4" NPT Female Approvals: UL (optional): CSA (optional): PED (European): Stripped (D1S and D2S) models may be ordered as UL Recognized components (UR) on request. Housed (D1H and D2H) models may be ordered as UL Listed on request (UL File No. E42816). All models may be ordered as CSA listed under Class 3231 02, File LR22355 on request. Compliant to PED 97/23/EC Temperature Range: Operating: Storage: -65° to +165°F (-54° to +74°C) -65° to +200°F (-54° to 93°C) Adjustment Instructions: Pressure: Vacuum: Turn adjustment screw counterclockwise to raise actuation point. Turn adjustment screw clockwise to increase setpoint (higher vacuum). Options: - NEMA 4X enclosure (housed models only) - Cleaned for oxygen service - Factory pre-set Shipping Weight: Stripped Versions : 1.5 lbs. approximate Housed Versions: 1.75 lbs. approximate * See product confi gurator for additional options. Wiring Code Lead Circuit #1 Circuit #2 Pressure Vacuum Pressure Vacuum Normally Closed Blue Red Orange Yellow Common Purple Purple Brown Brown Normally Open Red Blue Yellow Orange

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Barksdale
Model	D2H-B150SS
