Beam Square Structural Steel Layout Tool

US $75.00

  • Salem, Oregon, United States
  • Jan 30th
Open on mobile:
QR code

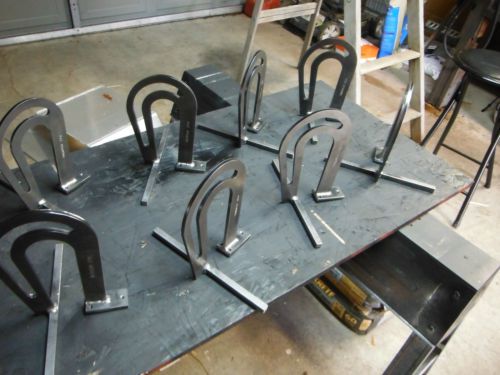

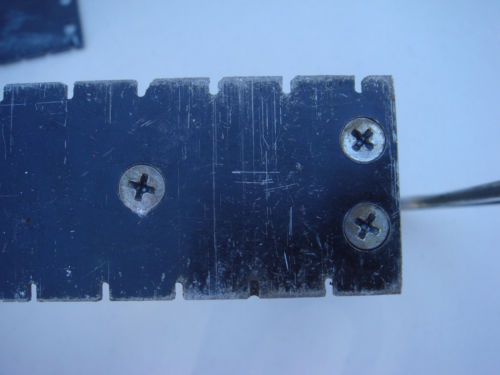

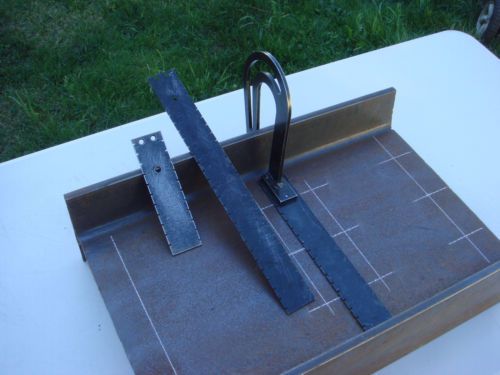

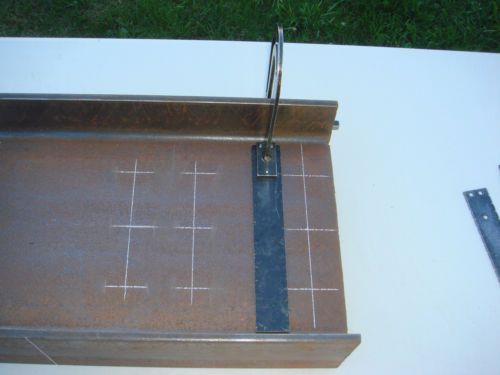

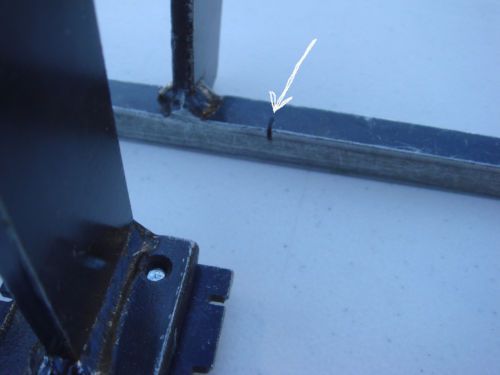

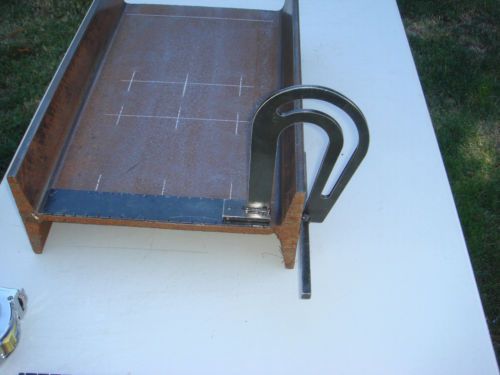

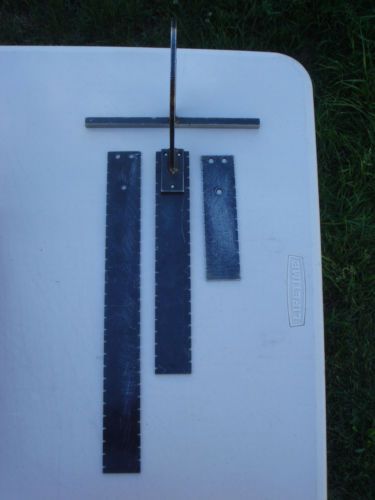

New Beam Square Makes laying out structural steel beams a snap. Increase your layout time by tenfold. I build these per order, Beam Square comes with 7”, 11”, & 15” laser cut changeable ruler. There is a notch every 1/2” per side with a 1/4" offset per side so you can mark in 1/4" increments. There is a small notch on the squaring edge so you can easly transfer your line to the flange.  This tool will fit most of the commonly used steel beams in construction today. If you work in a steel fabrication shop this tool is a must have.Tool comes primer black. (note the pics you see here are of a working prototype that is 15 years old so it looks a little used)
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Country/Region of Manufacture United States
Model Beam Square
Brand JP Built
