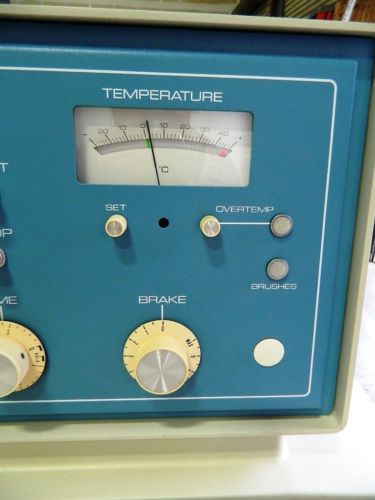

Beckman J6B with a JS 5.2 (4x1000ml) rotor and warranty, US $4,500.00 – Picture 0

Beckman J6B with a JS 5.2 (4x1000ml) rotor and warranty, US $4,500.00 – Picture 1

Beckman J6B with a JS 5.2 (4x1000ml) rotor and warranty, US $4,500.00 – Picture 2

Beckman J6B with a JS 5.2 (4x1000ml) rotor and warranty, US $4,500.00 – Picture 3

Beckman J6B with a JS 5.2 (4x1000ml) rotor and warranty, US $4,500.00 – Picture 4

Beckman J6B with a JS 5.2 (4x1000ml) rotor and warranty, US $4,500.00 – Picture 5

Beckman J6B with a JS 5.2 (4x1000ml) rotor and warranty, US $4,500.00 – Picture 6

Beckman J6b With A Js 5.2 (4x1000ml) Rotor And Warranty

US $4,500.00

Selden, New York, United States
Jan 30th

Open on mobile:
QR code

Up for sale a Beckman J6B with a JS 5.2 rotor 4x1000ml . comes with 30 day parts warranty.The Beckman J6-B High Capacity Centrifuge features an extensive list of functionalities including a conventional brush motor and reliable analog display. This Beckman model also features an advanced refrigeration option, a performance speed of 6000 rpm, and a maximum force of 6835 g.Designed for optimal performance, the Beckman J6-B is equipped with a dynamic electric braking, high torque drive system, and three significant figures digital speed readout. To further enhance the functionalities of the J6-B system, users can integrate it with a high capacity JS-5.2 rotor with four one-liter cups. Beckman J6-B High Capacity Centrifuge Specifications Maximum Speed6000 rpmMaximum SpeedAny speed outside the rotor's critical speed range (~600 to 800rpm). Critical speed is the speed at which a rotor shifts from rotation about its center of mass. Critical Speed is characterized by some vibration.Maxium RCF6840 x gMaximum Rotor Capacity6 litersDriver System1.2 kW (1 1/2 hp) dc motor; belt-driven driveshaft.Speed Control Rotor Speed meter reading is within 50 rpm of setting on Speed dial, and within 150 rpm of actual rotor speed. Control rage is 0 to 6000 rpm.Acceleration TimeMinimum 15 seconds (JA-21 rotor), maximum 2.5 minutes (JS-4.2 rotor).Braking SystemElectronic, variable brakingMaximum Braking TimeAt maximum brake setting: no more than twice the acceleration time.Temperature Control Sample temperature is within 2°C of the desired temperature; within 1° if calibration has also been performed.Temperature Control Range0 to 40°C at full speed; as low as -25°C at reduced speedAmbient Range16°C to 38°C (60°F to 100°F)Maximum Heat Output (During Operation) 1.9 kW (6500 Btu/h)Timer Times up to 30 minutes (60 Hz instruments) or 36 minutes (50 Hz instruments), or HOLD; graduated in 1-minute incrementsRotor Chamber Diameter 580 mm (23'')Electrical Requirements 3-wire single phase Range for 208V/60Hz 187-223 V Range for 240V/60Hz 224-264 V Range for 220V/50Hz 210-224 VDimensionsRight side (for tilting up door): 150mm (6'') Left side:150mm (6'') Back( distance from condenser fins to wall, essential for adequate ventilation):150 mm (6'') Net weight: 252kg (555 lbs) Height to door top(door closed): 940mm (37''). Height to work surface(door open): 910mm (35.5'') Overall height: 1270mm(50'') Overall width: 711mm (28'') Overall depth(without bracker): 825mm (32.5'') Height with door open (left side): 1600mm(63''
