Belar Csa-1 2 Mhz Fft Broadcast Fm Spectrum Analyzer With Manual

US $2,500.00

  • Carmichael, California, United States
  • Feb 22nd
Open on mobile:
QR code

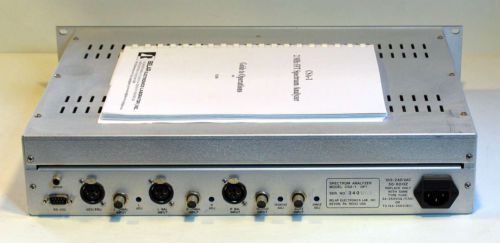

BELAR CSA-1  2 MHz FFT Broadcast FM Spectrum Analyzer with Manual.  Requires standard equipment power cord (not included). The Belar CSA-1 is a versatile FFT Spectrum Analyzer which may be used for AM, FM and TV applications as well as just audio.  Equipped with 2 MHz RF/IF, 150 kHz composite, 24 kHz L/R analog and 24 kHz L/R digital audio inputs, the CSA-1 can be used to view the real time spectrum of a wide variety of input signals. The CSA-1's 256 x 64 vacuum fluorescent display provides clear high contrast images with several vertical and horizontal axis controls, allowing for quick and easy adjustments to the unit's amplitude and frequency scales. An on-screen cursor function allows direct reading of any frequency and amplitude displayed at 0.1 dB resolution. All these features combined make the CSA-1 a compact, inexpensive and full featured FFT spectrum analyzer that will provide many useful measurements for the broadcaster, audio engineer, and recording engineer.   FEATURES Vertical Axis - Amplitude 120 dB dynamic range (Adjustable) Amplitude resolution to 0.1 dB Linear (percent) and dB scales Infinite peak hold, peak hold, average display modes or real time Display sum and/or difference of L/R analog or digital inputs   Horizontal Axis - Frequency Frequency resolution adjustable over a wide range 2  MHz input:  10 kHz - 100 Hz 1  MHz input:   5 kHz -  50 Hz 150 kHz input:  500 Hz -  10 Hz 24 kHz input:  250 Hz -   1 Hz Cursor display of frequency and amplitudes to 0.1 dB Offset frequency function allows narrowband spectrum analysis over the entire input bandwidth Split screen for simultaneous display of two channels   Misc. User selectable FFT window function Display storage and user defined spectral masks for checking compliance SPECIFICATIONS Inputs 2 MHz analog RF/IF 0.15 to 2.0 Vrms  100k, unbalanced, BNC 150 kHz analog composite 0.35 to 3.5 Vrms  100k, unbalanced, BNC 24 kHz analog L and R inputs 0.15 to 5.0 Vrms  -14 dBu to +16 dBu  100k, unbalanced, BNC  600 ohm , balanced, XLR. AES/EBU(rate convertor 10-56 kHz) XLR S/PDIF(rate converter 10-56 kHz) RCA Outputs RS-232 port.  9 pin D connector. Dimensions: 2 EIA Rack Unit Power Requirements: 30 Watts, 100-240V, 50/60 Hz
