Belfort Portable Liquid Level Recorder 5-fw-1

US $69.99

Grove City, Pennsylvania, United States
Jan 30th

Open on mobile:
QR code

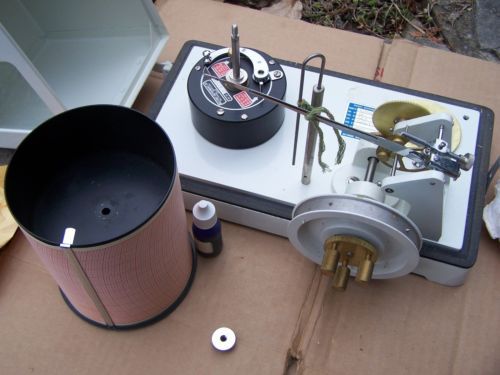

High Accuracy Rugged and Reliable Multiple Ratios Available Spring Operated or Battery Operated Chart Drive Comes as a Complete Recording Set with Float, Tape and Connectors The Model 5-FW- I Recorder mechanically converts the vertical movement of a ballast stabilized float into either a paper chart record or potentiometric output for electronic recording. The instrument is constructed entirely of corrosion resistant parts and packaged within a weather resistant housing for durability. The liquid level recorder is available with one of two chart recording options; a spring powered chart drive with rectangular charts of 3, 6, 12, 24, 96 or 192 hour periods, or a battery powered chart drive which offers one additional chart period of 861 hours for long term recording. All of these options are available with a concurrent potentiometric output. The pen positioning mechanism provides an unlimited recording range, through multiple traverses of the chart, while the potentiometric output is limited to the equivalent of 1.9 feet at 5:12 ratio and 9.5 feet at 1:12 ratio. Each recorder comes complete with a set of charts, ink, 4 inch diameter float, counterweight, and 30 ft. of perforated stainless steel tape. Longer tapes are available by special order Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition

Used :

An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

Seller Notes

“Unit has wind up powered chart motor. The required float tape and weight are not included but can be purchased from Belfort.Options Tape Floats Float tape perforated (English) Specify Length PN 8933 Float Diameter 3" 4" 6" PN 739 PN 651 PN 5640 SPECIAL OPTIONS Float 7" diameter PN 648 10" diameter PN 652 Counterweight 7" or 10" floats PN 634 Guide Sheave 7" or 10" floats PN 7383 Tape, perforated (metric) PN 16426 Tape index with mtg. bracket PN 673/655 Tape wheel, 2 foot circumference PN 732-2 Tape wheel, 50 cm. circumference PN 9161 Change gears 1:6 ratio PN 11728/11782 Change gears 5:6 ratio PN 9664/965 Pen Recording disposable PN 17477”
