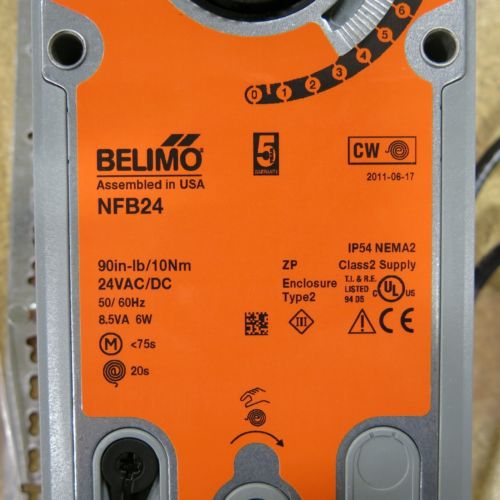

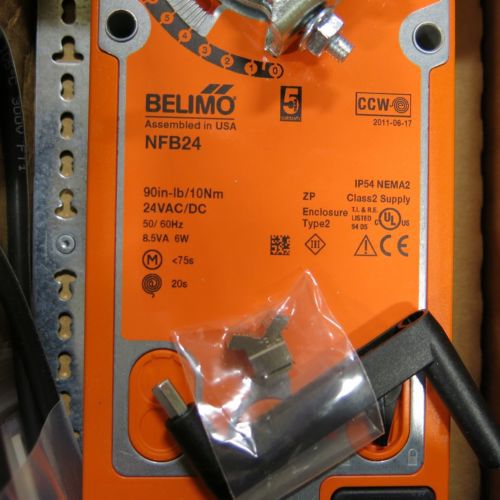

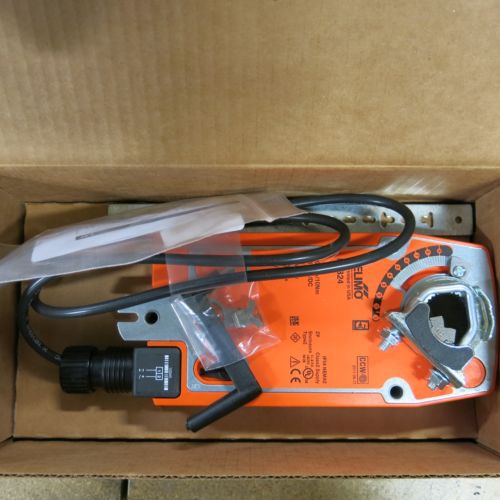

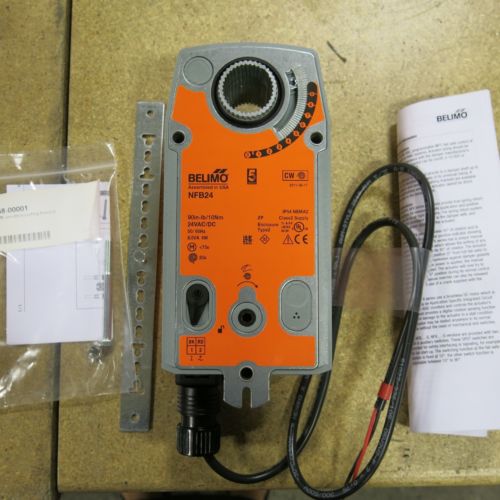

Belimo Nfb24 Damper Actuator Spring, 90in-lb/10nm, 24vac/dc New; Qty 1, 4 Avail

US $300

Berkeley Heights, New Jersey, United States
Jan 29th

Open on mobile:
QR code

THIS LISTING IS FOR A QUANTITY OF ONE ACTUATOR, I HAVE 4 OF THESE AVAILABLE, IF YOU ARE INTERESTED IN MORE THAN ONE, CONTACT ME FOR COMBINED SHIPPING COSTS Fail-Safe Spring Return Torque 90 in-lb [10 Nm] Control Input On/Off Input Impedance -- Position Feedback -- Running Time (motor) <75 seconds Running Time (fail-safe) 20 seconds @ -4°F to +122°F [-20°C to +50°C], < 60 sec @ -22°F [-30°C] Auxiliary Switch -- Power Supply 24 VAC ± 20%, 50/60 Hz, 24 VDC + 20% / -10% Power Consumption 6 W,2.5 W Transformer Sizing 8.5 VA (class 2 power source) Electrical Connection 3 ft, 18 GA appliance cable, 1/2" conduit connector Overload Protection electronic throughout 0 to 95° rotation Shaft Diameter Standard: 1/2" to 1.05" round, centers on 1/2" and 3/4" with insert, 1.05" without insert Angle of Rotation 95° (adjustable with mechanical end stop, 35 to 95°) Direction of Rotation (motor) reversible with CW/CCW mounting Direction of Rotation (fail-safe) reversible with CW/CCW mounting Position Indication visual indicator, 0° to 95° (0° is full spring return position) Manual Override 5 mm hex crank (3/16" Allen), supplied Humidity max. 95% RH non-condensing Ambient Temperature -22°F to +122°F [-30°C to +50°C] Ambient Temperature (safety) -- Storage Temperature -40°F to +176°F [-40°C to +80°C] Noise Level <50 dB (A) motor @ 75 seconds <62 dB (A) spring return Housing Material zinc coated metal and plastic casing Housing NEMA 2, IP54, UL enclosure type 2 Agency Listing cULus acc. To UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. To 2004/108/EC & 2006/95/EC Quality Standards ISO 9001 Weight 4.15 lbs (1.9 kg)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Belimo
MPN	NFB24
