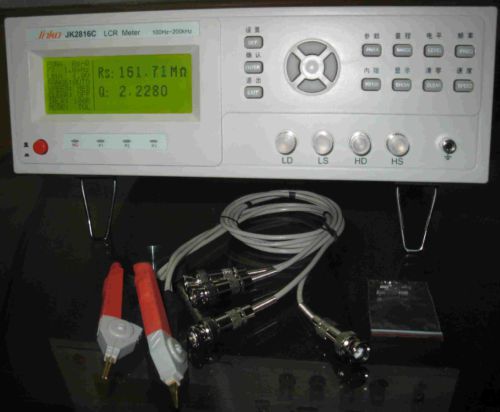

Bench LCR Meter 200KHz Inductance Capacitance RZDQ Test Component Sort JK2816C, US $450.00 – Picture 0

Bench LCR Meter 200KHz Inductance Capacitance RZDQ Test Component Sort JK2816C, US $450.00 – Picture 1

Bench Lcr Meter 200khz Inductance Capacitance Rzdq Test Component Sort Jk2816c

US $450.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Note: both AC 110V and 220V versions are available. We'll ship this item via express mail service to USA, Canada, Australia, New Zealand, Ireland, Austria, Belgium, Denmark, Germany, France, Finland, Luxemburg, Malta, Norway, Sweden, Swiss, Spain, Italy, UK, Japan, Korea, Thailand, Malaysia, Indonesia, Philippine, Singapore. Clients from other countries pls contact with us in advance to confirm the different shipping charges before you bid. Features: 192 x 64 dot matrix LCD display. Higher measurement stability and accuracy. 30?/100? selectable signal source output impedance. 50Hz - 200 kHz (21 typical measuring frequencies). User-friendly interface and easy operation. Direct reading, absolute deviation and relative deviation display. Packing list: Power cord x1; Test lead x1; Fuse x2. Specifications: Parameter Frequency Measuring range L 50Hz - 800Hz 1uH - 9999H 1kHz 0.1uH - 999.9H 10kHz - 200kHz 0.01uH - 99.99H C 50Hz - 800Hz 1pF - 19999uF 1kHz 0.1pF - 1999.9uF 10kHz - 200kHz 0.01pF - 19.99uF R 0.001? - 39.999M? D 0.0000 - 9999 Q 0.0000 - 9999 Measuring parameters Cs-D, Cp-D, Ls-Q, Lp-Q, Z-D, R-Q, total 6 parameter groups. Basic Accuracy 0.1% Measuring Frequency 50/60/80//100/120/200/400/500/800/1k/2k/4k/5k/80k/10k/ 20k/25k/40k/50k/100kHz/200KHz Display Range Z|, R:0.0001 ? - 99999M? C: 0.001 pF - 99999mF L: 0.001 µH - 99.999kH Q: 0.0001 - 99999 D: 0.0001 - 99999 ?% : 99.999% - 99.999% Source Resistance 30? , 100? Range Automatic, Manual, and nominal, 5 ranges Max Reading 5 digital, principle parameter: 99999; sub parameter:99999; monitor parameter; 99999. Signal Level 0.1V, 0.3V, 1V. Measuring Speed Slow: 2 times/second, Med:5 times/second, Fast:10times/second Component Sorting 4 Bins: NG/P1/P2/P3 Clear Function Open / short circuit, Clear Zeroing Equivalent Circuit Series and parallel Display 192 x 64 dot-matrix LCD Power Supply 110V or 220V AC Dimension & Weight 350mm (width)x110mm(height)x320mm(depth), 7.4kg

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	K2816C
Country of Manufacture	China
MPN	K2816C
