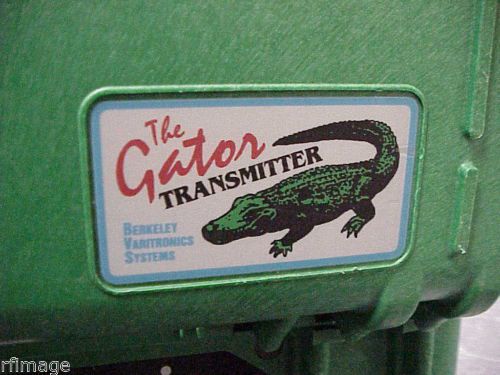

Berkeley Varitronics Systems Class A Gator Transmitter

US $1,950.00

Las Vegas, Nevada, United States
Jan 29th

Open on mobile:
QR code

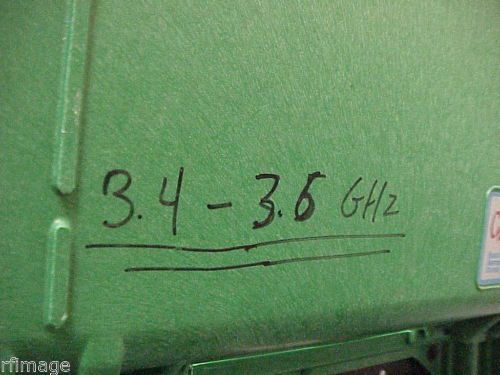

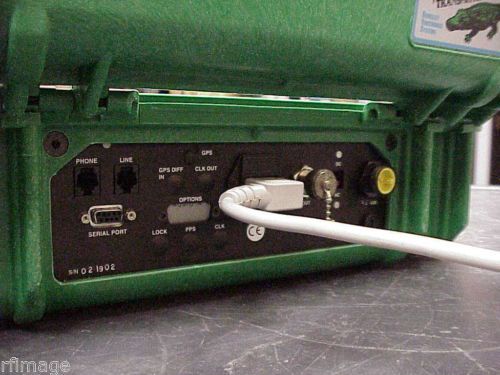

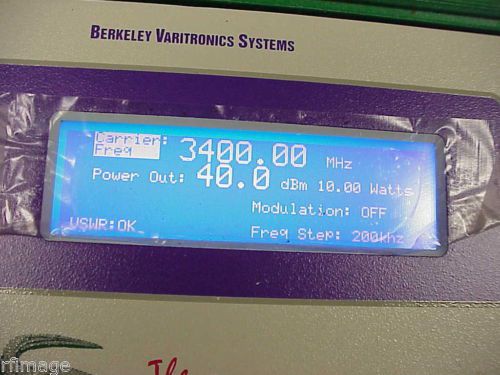

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! SquareTrade © AP6.0SELLING 3400-3550MHZ 10 WATT CLASS A TRANSMITTER GATOR MODEL Gator Class A Stimulus Transmitter GENERAL SPECIFICATIONS: Display 240 X 64 pixel graphic supertwist LCD (VF backlit) Stability less than 1.5 PPM for first year, + for 1 PPM for aging Output Power Continuous adjustable power output + 1.0 dB over > 32 dB range (below 1 GHz) Power Adjustments Continuously adjustable via rotary knob or direct keypad entry in 1 dBm increments over > 20 dB on models above 1 GHz Spurious Output > 55 dBc (decibels below carrier level) Harmonics Output > 55 dBc (decibels below carrier level) Power 110-240 VAC 50-60 Hz, auto-switching, UL and CSA approved 10 and 20 watt models may also be powered from +12VDC Remote Control Via serial RS-232, internal modem or DTMF through telco Output Power Monitoring Forward and reverse power monitored via internal power meters. Output is regulated to < +1.0 dB of setting at up to a 6:1 VSWR MECHANICAL: Case Size 18" x 15" x 6" Weight 23 lbs. GSM GATOR: Power Output 20 watts into 50 ohms (GSM cellular model) PA Class Linear, Class A amplifier Output Adjustments + 0.1 dB steps over 20 dB range to full output Power Regulation Internal forward and reverse power meters with built-in circulator Internal Protection Infinite VSWR (shuts off at > 6:1 SWR)and temperature protected Tuning Range 935.2-959.8 MHz Tuning Increments + 50/200 kHz steps via keypad or rotary control Stability + 2.0 PPM from 0 deg to 50 deg C Type of Modulation GMSK internal data modulator Data Rate 270,833 symbols/second Baseband Filter Gauss, B x T=0.3 Remote Control Three ways, modem, DTMF or RS-232-C via rear panel Display Graphic 240 x 64 EL backlighted Power Input 110, 220 VAC, 50-60 Hz or 23-27 VDC at 6 Amps RF PERFORMANCE: Frequency Stability + 2 ppm from 10 to 50 C Frequency Steps + 200 kHz Frequency Range Cellular or PCS models DIGITAL SPECIFICATIONS: Data Rate effective rate 271 kbps (per GSM specs) Modulation 0.3 GMSK (per GSM specs) Frame Length 1250 bits HOST PC SERIAL INTERFACE: Serial Port RS-232C Format 8 data bits Parity none Start/Stop bits one MODULATION SCHEMES : CW Unmodulated CW signal. Note, GSM data modulation cannot be turned on from the main Gator screen. External Transmitter will modulate with user-supplied and filtered I and Q data from an external source. This is via BNC connectors located on the top panel of the Gator. GSM RND Gator outputs GSM modulation with internally-generated and random PN (pseudo-random) data. GSM BUFF GSM modulation with user-downloadable BCCH (base station control channel) stored data, downloaded by the user with PC loader software. This is via the RS-232C jack in rear. User must supply the base station data to be output, gator will repeat this transmission indefinitely. 698-805 MHz 850-870 MHz 800-900 MHz 850-900 MHz 930-970 MHz 25 or 45 Watts 110/220 VAC or 24 VDC 1.850-2.100 GHz 2.10-2.17 GHz 2.3-2.36 GHz 2.4-2.49 GHz 2.5-2.7 GHz 3.4-3.7 GHz (10 watt only) 10 or 20 Watts 110/220 VAC or 12 VDC

Condition	Seller refurbished : An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details.
Seller Notes	“TESTED AND CALIBRATED 3400MHZ TEST BTRANSMITTER 10WATT”
