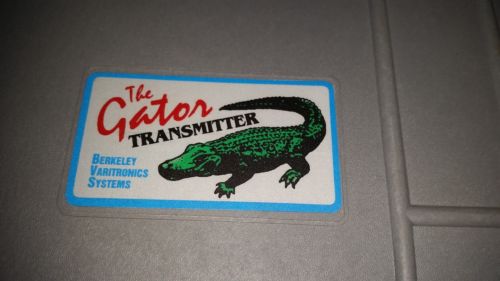

Berkeley Varitronics Systems The Gator Class A Stimulustransmitter

US $599.99

Atlanta, Georgia, United States
Mar 26th

Open on mobile:
QR code

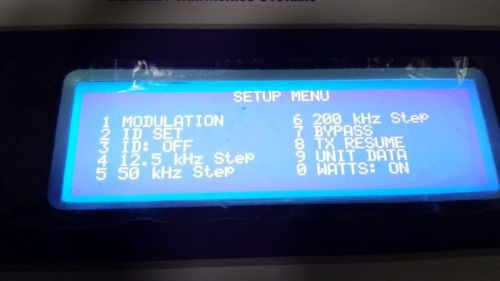

ORENAME STORE PAYMENTS SHIPPING RETURNS TERMS Berkeley Varitronics Systems THE GATOR Class A StimulusTransmitter Clean, powers up, no issues navigating menu. last calibrated in 2010. Used. Gator Class A Stimulus Transmitter GENERAL SPECIFICATIONS: Display 240 X 64 pixel graphic supertwist LCD (VF backlit) Stability less than 1.5 PPM for first year, + for 1 PPM for aging Output Power Continuous adjustable power output + 1.0 dB over > 32 dB range (below 1 GHz) Power Adjustments Continuously adjustable via rotary knob or direct keypad entry in 1 dBm increments over > 20 dB on models above 1 GHz Spurious Output > 55 dBc (decibels below carrier level) Harmonics Output > 55 dBc (decibels below carrier level) Power 110-240 VAC 50-60 Hz, auto-switching, UL and CSA approved 10 and 20 watt models may also be powered from +12VDC Remote Control Via serial RS-232, internal modem or DTMF through telco Output Power Monitoring Forward and reverse power monitored via internal power meters. Output is regulated to < +1.0 dB of setting at up to a 6:1 VSWR MECHANICAL: Case Size 18" x 15" x 6" Weight 23 lbs. GSM GATOR: Power Output 20 watts into 50 ohms (GSM cellular model) PA Class Linear, Class A amplifier Output Adjustments + 0.1 dB steps over 20 dB range to full output Power Regulation Internal forward and reverse power meters with built-in circulator Internal Protection Infinite VSWR (shuts off at > 6:1 SWR)and temperature protected Tuning Range 935.2-959.8 MHz Tuning Increments + 50/200 kHz steps via keypad or rotary control Stability + 2.0 PPM from 0 deg to 50 deg C Type of Modulation GMSK internal data modulator Data Rate 270,833 symbols/second Baseband Filter Gauss, B x T=0.3 Remote Control Three ways, modem, DTMF or RS-232-C via rear panel Display Graphic 240 x 64 EL backlighted Power Input 110, 220 VAC, 50-60 Hz or 23-27 VDC at 6 Amps RF PERFORMANCE: Frequency Stability + 2 ppm from 10 to 50 C Frequency Steps + 200 kHz Frequency Range Cellular or PCS models DIGITAL SPECIFICATIONS: Data Rate effective rate 271 kbps (per GSM specs) Modulation 0.3 GMSK (per GSM specs) Frame Length 1250 bits HOST PC SERIAL INTERFACE: Serial Port RS-232C Format 8 data bits Parity none Start/Stop bits one MODULATION SCHEMES : CW Unmodulated CW signal. Note, GSM data modulation cannot be turned on from the main Gator screen. External Transmitter will modulate with user-supplied and filtered I and Q data from an external source. This is via BNC connectors located on the top panel of the Gator. GSM RND Gator outputs GSM modulation with internally-generated and random PN (pseudo-random) data. GSM BUFF GSM modulation with user-downloadable BCCH (base station control channel) stored data, downloaded by the user with PC loader software. This is via the RS-232C jack in rear. User must supply the base station data to be output, gator will repeat this transmission indefinitely. 698-805 MHz 850-870 MHz 800-900 MHz 850-900 MHz 930-970 MHz 25 or 45 Watts 110/220 VAC or 24 VDC 1.850-2.100 GHz 2.10-2.17 GHz 2.3-2.36 GHz 2.4-2.49 GHz 2.5-2.7 GHz 3.4-3.7 GHz (10 watt only) 10 or 20 Watts 110/220 VAC or 12 VDC Cellular, WiMAX, LTE, LMR, Paging, SMR, GSM, ISM, WCS, iDEN, AMPS, PACS, ETMS, ETACS, IS-136, AWS and more Available formats are GSM or IS-136, or 10 and 20 Watt Class A for CW only with > 20 dB power control Power control > 32 dB on all transmitters below 1 GHz PaymentsThis item is PayPal only. Please follow checkout instructions at the end of the auction. We do not accept checks of any kind for eBay transactions. Apto Soltuions’ policy is to open unpaid item cases if payment has not been received within 4 days of the sale date. Once an unpaid item case is open, a buyer has 4 additional days to complete the transaction. After that time Apto Solutions will cancel the transaction and the buyer will be subject to eBay policy. Apto Solutions is required to charge sales tax to residents of Georgia, California, Florida and Texas based on the tax NEXUS for each state. This amount will be automatically calculated and added to the invoice at the time of purchase. Shipping Policy Apto Solutions uses UPS Ground or Fed Ex Ground as standard shipping to the continental United States. International shipping is available for additional costs. To get an international shipping quote please contact us. Freight Shipping is also available for items over 150 lbs. Please contact us for a quote. Please see individual listings for handling time. If the auction end falls on a company holiday or weekend, please allow for extra time. Returns Policy Apto Solutions’ return policies are described in the Shipping and Payments tab of each auction. Please take the time to review these before bidding on or purchasing an item. Guarantee Most of our items are guaranteed for 30 days, unless otherwise stated in the description or returns section. Please confirm this before ordering as some of our items are sold as is. About Us Apto Solutions strives to provide a completely satisfying experience for our customers with every purchase. If you have any questions or concerns or would like to provide feedback on your experience with us we can be reached via eBay messages or by phone: Mike (404) 961-9657 ext. 1033 ATTN: eBay Store Manager 1910 MacArthur Boulevard Atlanta, GA 30318

“Clean, powers up, no issues navigating menu. last calibrated in 2010. Used.”
