Bid!dfrobot Leonardo With Xbee Socket + Android Io Control! Arduino-compatitble

US $30.00

Puchong, Selangor, Malaysia
Feb 17th

Open on mobile:
QR code

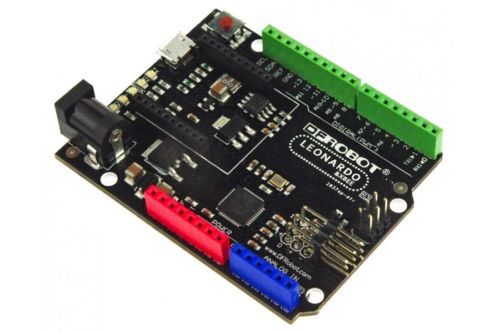

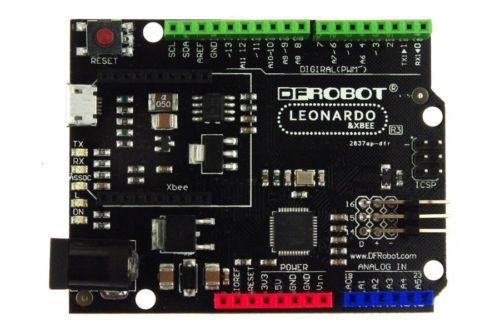

Introduction: DFRobot Leonardo with Xbee socket is an Arduino Leonardo variant processor.The Arduino Leonardo is based on the ATmega32u4 chip. It is the latest addition to the Arduino family. Compared with the earlier Arduino controllors,by using the ATmega32U4 as its sole microcontroller, allows the Leonardo to be cheaper and simpler to use.Also, because the 32U4 is handling the USB directly, code libraries are available which allow the board to emulate a computer keyboard, mouse, and more using the USB-HID protocol! Based on the Arduino official Leonardo processor,this one from DFRobot equips an xbee socket and 3 sensor extension pins for your application.The Xbee is commonly used wireless communication module with 2.4G Zigbee,900Mhz version,and etc.The socket makes it possible for you to extend the xbee or XBee form factor wifi,bluetooth and RF modules for your Arduino directly.However,the D14~D16 extension pins with power supply maximize the use of your ATmega32u4 microcontroller.They support the digital sensors and module from DFRobot directly. Notes: This board is only supported in the latest Arduino IDE 1.0.1 or later version so you will also need to update the IDE. This package includes: 1 x DFRobot Leonardo with Xbee socket with SmartDAQ firmware (6 Analog Pins & 18 Digital Pins) Specification: Input Voltage (recommended): 7-12V Input Voltage (limits): 6-12V Microcontroller:ATmega32u4 Operating Voltage: 5V Interface: Micro USB Compatible with Arduino R3 series pin mapping Directly support Xbee and XBee form factor wifi,bluetooth and RF modules Extend D14~D16 digital pins with 5v power supply Clock Speed 16 MHz Size: 70x55x14mm Microcontroller Specification Digital I/O Pins: 20 PWM Channels: 7 Analog Input Channels: 12 DC Current for 3.3V Pin: 800 mA Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader SRAM: 2.5 KB (ATmega32u4) EEPROM: 1 KB (ATmega32u4) Download: Wiki Doc:Link (FREE) Arduino source code (UNO, MEGA 2560 & Leonardo) for SmartDAQ : Link Atmega32u4 datasheet :Link Schematic:Link Arduino Leonardo product page :Link Latest Arduino IDE :Link Android Apps [FREE]: Data Logging, Graph Display (as oscilloscope), IO Control, Voltage Reading (ADC values) Smart DAQ: Link Tutorial to use Arduino source code (UNO, MEGA 2560 & Leonardo): Link Shipping: Standard Shipping (Delivery time is 7-30 business days): with Registered Air Mail Expedited Shipping (Delivery time is 3-10 business days): is available to US, Canada, Europe & Australia. P.O. Box is not supported for expedited shipping Expedited Shipping for Europe countries ONLY cover: Austria, Belgium, Czech, Denmark, Finland, France, Germany, Hungary, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Slovakia, Spain, Sweden, Switzerland And United Kingdom Please check with us of express shipping for other countries. Tracking number is provided for Standard and Expedited Shipping. You may contact us for the tracking number. We ship within two business day after payment received. We will ship to the Paypal shipping address you entered during checkout process, rather than your eBay shipping address. We Ship to Worldwide, except China and Israel. Payment Payment method: We only accept PayPal Please request total for combined orders. Other Policies We are not responsible for any custom duty or import tax. These charges are the buyer's responsibility. We will leave POSITIVE FEEDBACK after receive the full payment. Please contact us if you are not satisfied with the item when you receive it. Serious Buyer Only! Please place bid only if you agree with all the terms. Warranty 6 months Warranty. Buy with confidence! Only MANUFACTURING defective product will be offered exchange or store credit. Damage caused by any misuse of product is not covered under warranty. Contact Us Please read our policy and product description before your purchase. We will explain it in detail and satisfy your needs. Feel free to contact us! Email: support@avrcircuit.com For more information, please visit www.avrcircuit.com Our Worldwide Customer MyStoreMaps improve local and international eBay sales. apps.froo.com | Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application
