Big Button Brick

AU $1.50

Sydney, Australia
Jun 9th

Open on mobile:

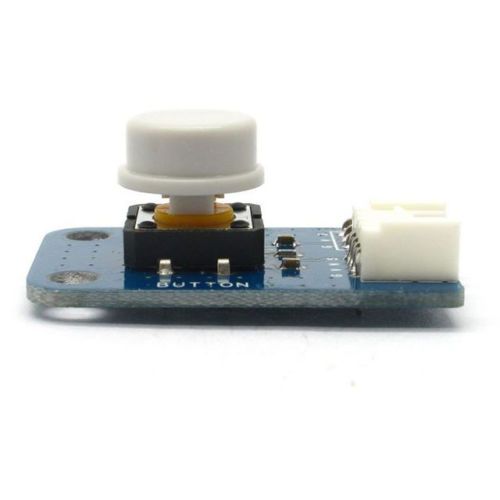

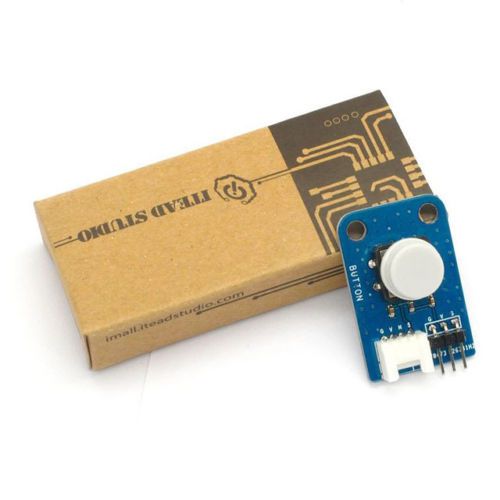

Overview Big button switch brick is finger-sized, which can be connected to I/O port of main board or externally wired to bread board. DESCRIPTION What is an electronic brick? An electronic brick is an electronic module which can be assembled like Lego bricks simply by plugging in and pulling out. Compared to traditional universal boards and circuit modules assembled with various electronic components, electronic brick has standardized interfaces, plug and play, simplifying construction of prototype circuit on one’s own. There are many types of electronic bricks, and we provide more than twenty types with different functions including buttons, sensors, Bluetooth modules, etc, whose functions cover from sensor to motor drive, from Ethernet to wireless communication via Bluetooth, and so on. We will continue to add more types to meet the various needs of different projects. Electronic brick of button switch is finger-sized, which can be connected to I/O port of main board or externally disconnected to check the switch state so as to control ON/OFF of LED lamp. Features 1. Plug and play, easy to use. Compatible with the mainstream 2.54 interfaces and 4-Pin Grove interfaces in the market. 2. With use of M4 standard fixed holes, compatible with M4-standard kits such as Lego and Makeblock 3. Hardware with debouncing function for more stable output Specifications PCB size 36.0mm X 14.0mm X 1.6mm Working voltage 3.3 or 5V DC Operating voltage 3.3 or 5V DC Compatible interfaces 2.54 3-pin interface and 4-pin Grove interface(1) Note 1: S for digital output port, V and G for voltage at the common collector and ground respectively. Generally speaking, digital output is VCC; when the button is pressed down, the digital output is 0V. Electrical characteristics Parameter Min. Typical Max. Unit Working voltage 3 5 5.5 VDC Digital output voltage (VCC=5V) 0 - 5 V Demo Code Connect S port of electronic brick of button switch to D2 port of Arduino board, and we will use the following program to read the digital value. When the digital value is high level, LED lamp will be ON; when the digital value is low level, LED lamp will be OFF. int LED=13; void setup() { pinMode(LED, OUTPUT); pinMode(Button, INPUT); } void loop() { if(digitalRead(Button)==HIGH) //when the digital output value of button is high, turn on the LED. { digitalWrite(LED, HIGH); } if(digitalRead(Button)==LOW) //when the digital output value of button is low, turn off the LED. { digitalWrite(LED, LOW); } } Revision record Version Description Date Written by v1.0 Initial edition 12th, April, 2013 Stan Lee Specification Brick Type Button and Switch Brick Interface 3PIN Brick Power Supply 5V Board Size 36 x 14 x 1.6mm LED Color No Weight 20.00g Model IM120710022 Download Schematic SCH_IM120710022 Datasheet DS_IM120710022 Demo Code DEMO_IM120710022

Condition:	New	Brand	IteadStudio
Model	IM120710022
