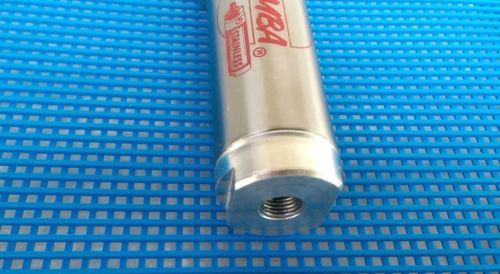

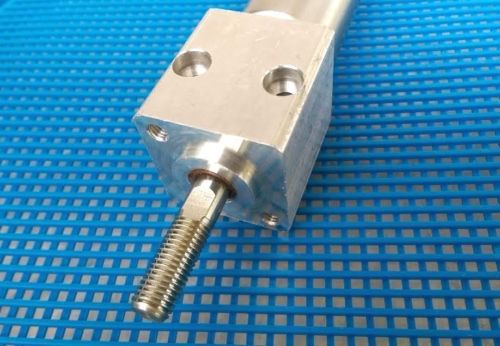

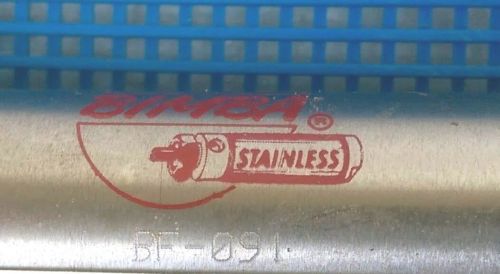

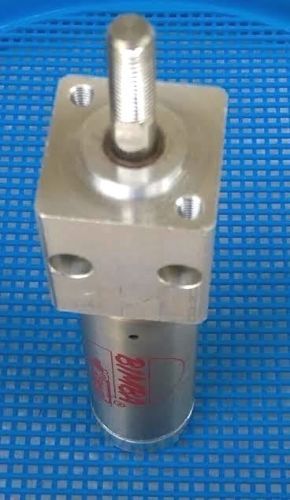

Bimba Bf-091 Stainless Pneumatic Air Cylinder 1-1/16"bore, 1"stroke, 5/16"rod Od

US $13.69

  • Alpharetta, Georgia, United States
  • Jun 9th
Bimba BF-091 Stainless Air Cylinder 1-1/16" Bore, Single Acting - Spring Return - Front Flush Mounting, Stroke Lengths 1", Stainless Steel Rod 5/16" OD, 1/8" NPT Port Tested in good working condition. Specifications: Brand Name: Bimba Ground and Polished, High Strength Carbon Steel Piston Rod: 303 Stainless Steel Rod 5/16"  Diameter x Thread Size: 5/16-24 Available as an Option: Bronze Rod Guide Bushing Manufacturer Series Number: BF-091 Mounting Type: Single Acting – Front Block Mounting – Spring Return Bore Air Cylinder Size: 1-1/16 " Stroke Length: 1" Port Size: 1/8" NPT Maximum Working Pressure: 150  PSI LowerTemperature Range: -10  Degrees Fahrenheit Upper Temperature Range: 165  Degrees Fahrenhei Quantity: 1pc
Tested in good working condition.
Type Pneumatic Air Cylinder
Stroke 1in.
Action Type Single Acting, Spring Return
Material Piston Rod: 303 Stainless Stee
Brand Bimba
Model BF-091
Bore Diameter 1-1/16"
MPN BF-091
