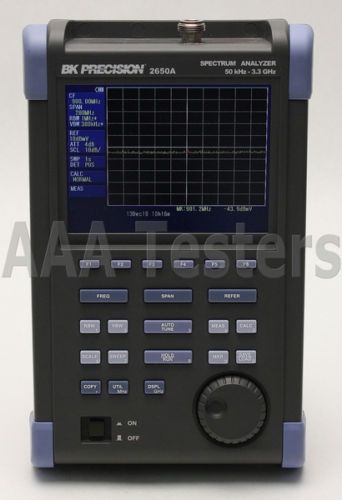

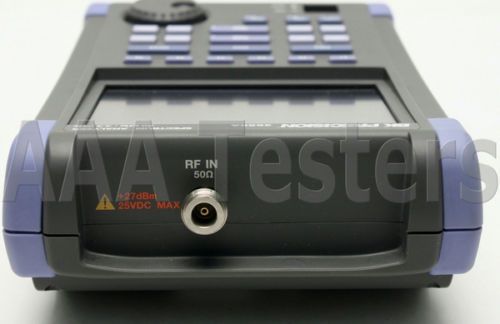

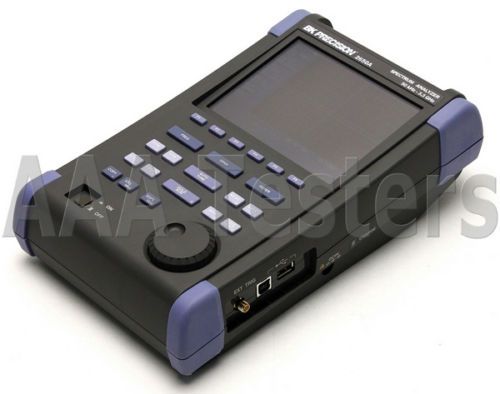

Bk Precision 2650a Handheld 3.3ghz Spectrum Analyzer 2650

US $3,495.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

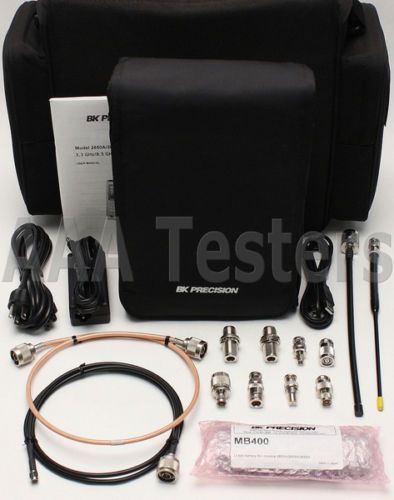

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: BK Precision 2650A Handheld 3.3GHz Spectrum Analyzer (BC# 14997) BK Precision MB400 Li-Ion Battery N Male To N Male Cable N Male To Coaxial Cable N Female To BNC Connector (2) N Male To Coaxial Connectors (2) N Female To N Female Connectors N Female To Coaxial Connector BNC To Coaxial Connector BNC To Female Coaxial Connecotr (2) Antennas AC Adapter/Charger Power Cord USB PC Interface Cable Hard Copy User Manual Case For Unit Carrying Case (G) BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! BK Precision 2650A Handheld Spectrum Analyzer Frequency Range: 50Khz to 3.3GHz Includes Antennas, Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty BK Precision 2650A Handheld Spectrum Analyzer Truely portable solution for quick and precise spectrum analysis B&K Precision’s 2650A series handheld spectrum analyzers are compact, light weight, and cost-effective spectrum analyzers for quick and precise signal investigations, especially away from the bench. At a weight of only 1.8 kg (4 pounds), the 2650A series are by far the lightest full-featured spectrum analyzer available, yet they deliver performance and features comparable to full-size bench spectrum analyzers and can operate up to 4 hours on a single battery With their ease of use, measurement flexibility, and unmatched portability, the 2650A series analyzers are indispensible tools for engineers and technicians who conduct field measurements in the 50 kHz to 3.3 GHz range. Applications: Installation, maintenance, and troubleshooting of wireless communication systems such as W-CDMA/CDMA, GSM, WLAN, WiMAX and Bluetooth Detection of signal interference and undesired emissions TV and broadcasting Antenna alignment Superb performance improves your productivity Advanced synthesizer-based design enables the 2650A series to provide you with an accurate and detailed picture of the spectrum you are investigating Fast sweep speed, minimum 10 ms, to help locate and identify elusive, transient interference signals DANL (displayed average noise level) of -127 dBm Single sideband phase noise – 90 dBc @ 100 kHz offset Key features and benefits Frequency range from 50 kHz – 3.3 GHz A truly portable spectrum analyzer weighing only 1.8 kg including the battery Impressive 4 hour battery life; easy-to-replace rechargeable Lithium-Ion battery USB interface for PC connectivity Intuitive PC Software for remote control and documentation of measurement results Conveniently store measurement results and screen shots in bitmap format to USB flash drive (USB host interface) Large easy-to-read color display (TFT LCD), 640 x 480 resolution Measurement functions: channel/adjacent channel power, occupied bandwidth, electric and magnetic field strength Convenient Auto Tune function automatically sets center frequency to the maximum signal within full span and optimum settings for RBW, VWB and sweep time External trigger for zero span measurements SCPI-like remote control commands Channel power measurement Allows you to measure the total power or noise power in a user-specified bandwidth. Adjacent channel power Measure the ratio of power leakage (from the wanted signal) into adjacent channels. Center frequency, adjacent channel bandwidth, and offset between main carrier and adjacent channels can be set Users can select from any of the following three measurement methods based on the reference carrier definition: total power (of displayed spectrum), peak power (reference level) and in-band power (user-specified band width). Occupied Bandwidth This measurement calculates the bandwidth containing the total integrated power occupied in a given signal bandwidth. Two measurement methods are available: The user can specify N% of total power or the X dB down point relative to the carrier peak level. Specifications: Frequency range 50 kHz to 3.3 GHz Center frequency Setting resolution 20 kHz Settable with rotary encoder, numeric or function key Accuracy within ± (30+20T) kHz±1 dot @frequency span: 200 kHz to 10 MHz, RBW 3 kHz, 23±5°C within ± (60+300T) kHz±1dot @frequency span: 20 MHz to max. frequency (3.3 GHz), RBW 100 kHz, 23±5 °C T: sweep time (s) RBW frequency error within ±4 kHz @ 3 kHz, 10 kHz, 30 kHz within 20% of RBW @ RBW: 100 kHz, 300 kHz within 10% of RBW @ RBW: 1 MHz, 3 MHz Frequency span Range 0 Hz (zero span), 200 kHz to 2 GHz (1-2-5 step) and 3.3 GHz (full span) Accuracy within ±3% ±1dot @ sweep time of 0.3s, 23±5 °C Display resolution # of points per trace 501dots on LCD screen, 1001dots readout via PC (501 dots are visible on the display, 1001 dots of trace data are captured internally and can be transferred to a PC via USB device interface.) Resolution bandwidth 3 dB bandwidth Range 3 kHz to 3 MHz (1-3 sequence) and AUTO Accuracy ±20% Shape Factor 1:12 (typical, 3 dB : 60 dB) Video bandwidth 100 Hz to 1 MHz (1-3 step) and AUTO SSB phase noise 90 dBc/Hz (typical) @100 kHz offset, RBW : 3 kHz, VBW : 100 Hz, sweep time: 1 s Spurious response less than -60 dBc Harmonics less than -40 dBc @ >= 100 MHz Amplitude section Reference level Range +10 to -60 dBm (1dB step) Accuracy within ± 0.8 dB ± 1 dot @ center frequency : 100 MHz, RBW : 3 MHz, VBW : 1 MHz, REF : -15 dBm, 23±5 °C Unit dBm, dBV, dBmV, dBµV, dBµV/m, dBµA/m (dBµV/m and dBµA/m are used for measurement functions Average noise level -127 dBm (typical) @ CF : 1 GHz, RBW : 3 kHz, VBW : 100 Hz, Ref. level < - 40 dBm ( preamp automatically ON) Frequency response within ±2.0 dB ± 1 dot @50 kHz to 100 MHz within ±1.0 dB ± 1 dot @100 MHz to max. frequency (3.3 GHz) Input impedance 50 ? Input VSWR < 2.0 Input attenuator Operating range 0 to 25 dB (1 dB step), coupled with reference level Switching error ±0.6 dB @100 MHz RBW switching error ±0.6 dB Display resolution (vertical) 381 dots/10 div Display scale Scale 10 dB/div, 5 dB/div, 2 dB/div Accuracy ±(0.2 dB+1dot)/2 dB ±(0.4 dB+1dot)/5 dB ±(0.8 dB+1dot)/10 dB ±(1.8 dB+1dot)/83 dB Input damage level +27 dBm (CW average power), 25 VDC Sweep section Sweep time Range 10 ms to 30 s and AUTO @frequency span : 0 to 2 GHz 30 ms to 30 s and AUTO @frequency span : full span Accuracy Within ±0.1 %±1dot @frequency span : 0 to 2GHz within ±1.5 %±1dot @ full span Trigger Trigger mode AUTO (Available only for zero span) Trigger source Internal and External External trigger Input voltage range 1 to 10 Vp-p Frequency range DC to 5 MHz Input coupling DC coupling Trigger level approx. 0.56 V(fix) Input RC approx. 10 k? / less than 15 pF Input damage level ±50 V(DC+AC peak) Input connector SMA(J) Detection mode Positive peak, Negative peak, Sample Function Marker measurement NORM:displays frequency (8 digits max) and level (4 digits max) at marker point. DELTA:displays frequency difference and level difference between two markers Peak search NORM: searches peak point within 10div (full freq. range). This mode also supports NEXT peak ( up to 10). ZONE: searches peak point within a zone designated by center and width Calculations NORM, MAX HOLD, MIN HOLD, AVERAGE, OVER WRITE MAX/MIN HOLD: 2 to 1024 AVERAGE: 2 to 256 Measurements Measure Channel power, Adjacent channel leakage power, Occupied frequency bandwidth, Electric field strength (requires antenna), Magnetic field strength (requires magnetic field probe) Auto tuning Automatically scans the full bandwidth, sets center frequency to the maximum signal within full span and centers it onscreen. Automatically adjusts reference level, RBW, VBW and sweep time to optimum values Save/Load Save Saves 200 reference spectrum measurements and 200 setups Load Loads one reference spectrum measurement and one setup General RF Input connector N(J) connector USB Communication Protocol USB version 1.1 (will also work with USB 2.0 devices) Device Connector B plug Transfer rate 12 Mbps Hard copy USB printer (option) connected to A plug (host) enables hard copy of screen Host connector A plug Display Display 5.7 inch color TFT LCD Backlight LED backlight Number of dots 640(H) x 480(V) dots Power supply Dedicated Input : 100 to 240 VAC AC adaptor Output : 9 VDC/2.6 A Lithium-ion battery 7.4 V/5000 mAh Li-Ion battery (MB400) Charge function Capable of charging during power-off. Indicates 4 conditions with two color LED Charge indicator 5 level indicator of remaining battery charge Environmental and Size Operating temperature 0 to 50° C (guaranteed at 23±10 °C, without soft carrying case) Operating humidity less than 40 °C/80 %RH (guaranteed at less than 33 °C/70 %RH, without soft carrying case) Storage temperature -20 to 60 °C, less than 60 °C/70 %RH Dimensions 6.38 (W) x 2.80 (H) x 10.43 (D) inch, 162(W) x 71(H) x 265(D) mm (excluding projections, protection bumper and stand) Weight approx. 1.8 kg or 4 lbs (including battery) Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. --> This item is subject to a FIXED SHIPPING price. This means that the shipping fee will be the displayed amount for all ship-to destinations shown. This item is eligible for pickup unless otherwise stated. We do not ship to any destinations that are not specified here. Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do/do not cover this cost for all of our US customers. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept payment transactions via our online checkout system! Our checkout process is designed that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through our online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hrs upon receipt of payment from the winning bidder. A Shipment Tracking number will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Terms: All transactions are final. Winning bidder assumes all risk of liability with respect to the purchase of the product. Thank you WE ACCEPT ALL MAJOR CREDIT CARDS Powers Your Online Marketplace Make inventory management a breeze with Kyozou eBay Inventory Management Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Model	2650A
Analyzer Type	Spectrum Analyzers
Manufacturer	BK Precision
Unit Type	Complete Systems & Mainframes
