Boston Lutfb-b Brake Motor, F732-20-b9-j Right Angle Worm Gear Speed Reducer

US $2,000.00

Coffeyville, Kansas, United States
Feb 22nd

Open on mobile:
QR code

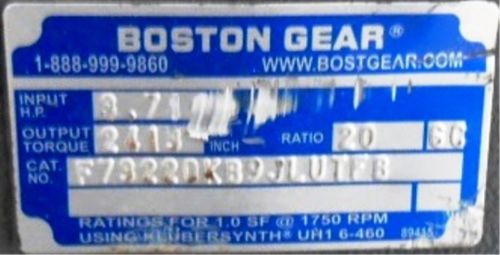

BOSTON LUTFB-B AC BRAKE MOTOR 732-20-B9-J RIGHT ANGLE WORM GEAR REDUCER MOTOR: 208-230/460V 82.50 LOAD EFFICIENCY OVERALL LENGTH: 19.81" NEMA DESIGN CLASS B SERVICE FACTOR: 1.15 INSULATION CLASS B 1800 RPM RANGE TYPE OF BEARING: BALL TYPICAL APPLICATION: STARTING AND STOPPING TEFC ENCLOSURE 3 HP 182TC MOTOR FRAME C-FACE FOOTLESS MOUNT 1,725 RPM 60HZ FULL LOAD AMPS: 9.0-8.6/4.3 3 PHASE REVERSIBLE SHAFT ROTATION SHAFT SIZE: 1.125" WEIGHT: 76 LBS. WORM GEAR REDUCER: MAXIMUM INPUT HORSEPOWER: 3.71 @ 1,725 RPM HP RATIO: 20:1 180TC, 210C NEMA/IEC FRAME C-FACE QUILLED SOLID SHAFT OUTPUT RIGHT OUTPUT DIRECTION INPUT SIZE: 1-1/8" OUTPUT SIZE: 1-3/8" CENTER DISTANCE: 3-1/4" SINGLE REDUCTION MANUFACTURER REDUCER SIZE: 732 MAXIMUM OUTPUT RPM: 87.5 !1,750RPM MAXIMUM OUTPUT TORQUE 3846 @ 100 RPM IN LBS. CAST IRON HOUSING MATERIAL OVERHUNG LOAD CAPACITY: 1300 LB HOUSING DIMENSIONS: 9 X 5.88 X 9.38" STANDARDS MET: AGMA PLEASE READ BEFORE BIDDING, MAKING AN OFFER, OR PURCHASING Please DO NOT PAY until invoiced. WE COULD POSSIBLY SAVE YOU MONEY ON SHIPPING SHIPPING: All shipping/handling costs will be the sole responsibility of the buyer. ATTENTION INTERNATIONAL BUYERS: Please provide a phone number and shipping address so we can get the item shipped to you. Do not forget about any other charges which are charged by the carrier. This is something we have no control over and is an additional charge to shipping. RETURN POLICY: WE WILL REFUND YOUR MONEY IF THE ITEM YOU RECEIVE DOES NOT WORK AT ALL UNLESS IT WAS LISTED AS BEING PARTS ONLY OR NOT IN WORKING CONDITION. THE BUYER WILL BE RESPONSIBLE FOR ALL RETURN SHIPPING FEES. AFTER SELLER AGREES TO SENDING THE ITEM BACK AND THE ITEM IS RECEIVED AT OUR LOCATION WE WILL ISSUE A REFUND. ITEMS MUST BE RETURNED WITHIN 14 DAYS FROM THE DATE IT WAS DELIVERED TO THE BUYER. ADDITIONAL INFORMATION: Please note we are not experts in the parts or related fields. We may not be able to answer all of your questions but we will do our best to find all information requested. Approximate weight: 134 lbs. Please contact us for any questions or concerns. SHOULD A PROBLEM ARISE PLEASE CONTACT US BEFORE LEAVING NEUTRAL OR NEGATIVE FEEDBACK; THIS WILL ALLOW US TO WORK WITH THE BUYER TO RESOLVE ANY PROBLEMS. Thank you for your interest in our items. We always appreciate the business opportunities Be sure to add us to your favorites list and check out our other items. DHL/#479 /AC2-N1 / (1) A

“GREAT CONDITION!”

Brand	BOSTON
MPN	F732-20-B9-J
Model	LUTFB-B
