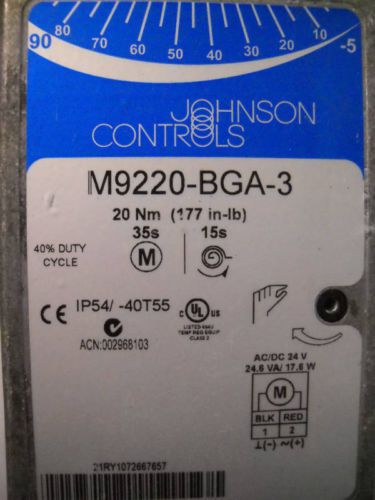

Brand New Johnson Controls M9220-bga-3 Electric Spring-return Actuators On/off

US $89.95

Lemoyne, Pennsylvania, United States
Jan 29th

Open on mobile:
QR code

M9220 Series Electric Spring-Return Actuators Description The M9220-xxx-3 actuators are direct-mount, spring-return electric actuators that operate with these available power options: • AC 24 V at 50/60 Hz or DC 24 V (AGx, BGx, GGx, HGx) • AC 120 V at 60 Hz (BAx) • AC 230 V at 50/60 Hz (BDx) These bidirectional actuators do not require a damper linkage, and are easily installed on dampers with 1/2 to 3/4 in. or 12 to 19 mm round shafts, or 3/8 and 1/2 in. or 10, 12, and 14 mm square shafts using the standard shaft clamp included with the actuator. An optional M9220-600 Jackshaft Coupler Kit is available for 3/4 to 1-1/16 in. or 19 to 27 mm round shafts, or 5/8 and 3/4 in. or 16, 18, and 19 mm square shafts. A single M9220-xxx-3 Electric Spring-Return Actuator provides a running and spring-return torque of 177 lb·in (20 N·m). Two or three models mounted in tandem deliver twice or triple the torque. Integral line voltage auxiliary switches are available on the -xxC models to indicate end-stop position or to perform switching functions within the selected rotation range. Refer to the M9220-xxx-3 Electric Spring-Return Actuators Product Bulletin (LIT-12011057) for important Features • Available Torques of 177 lb·in (20 N·m) for Single Actuators, 354 lb·in (40 N·m) for Two Models, and 531 lb·in (60 N·m) for Three Models Mounted in Tandem — offer a selection that is most suitable for the application. • Reversible Mounting Design — simplifies installation and enables the actuator to spring return in either direction. • Electronic Stall Detection throughout Entire Rotation Range — extends the life of the actuator by deactivating the actuator motor when an overload condition is detected. • Removable Coupler — adapts to a shorter damper shaft. • Integral 48 in. (1.2 m) Halogen-Free Cables with Colored and Numbered Conductors — simplify field wiring. • Integral Auxiliary Switches (xxC Models) — provide one fixed and one adjustable switch point with line voltage capability. • NEMA 2 (IP54) Rated Aluminum Enclosure — protects the internal components of the actuator from dirt and moisture. • Easy-to-Use Locking Manual Override with Auto Release and Crank Storage — allows for manual positioning of the actuator hub. • Integral Connectors for 3/8 in. Flexible Metal Conduit — simplify installation and field wiring. • Microprocessor-Controlled Brushless DC Motor (-AGx, -GGx, and -HGx types) — provides constant Applications The M9220-xxx-3 Electric Spring-Return Actuators provide reliable control of dampers and valves in HVAC systems. The M9220-xxx-3 Actuators are available for use with on/off, floating, and proportional controllers. Repair Information If the M9220 Series Electric Actuator fails to operate within its specifications, replace the unit. For a replacement actuator, contact the nearest Johnson Controls® representative. Code Number Control Type Auxiliary Switches Power Requirements M9220-BGA-3 On/Off None AC 24 V at 50/60 Hz or DC 24 V

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second, or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“New Without Box, Never Used. No Manual or additional accessories.”
