Brand New Portable Handheld Lcr Meter Th2822a Capacitance Impedance 100hz-10khz

US $168.99

Canton, China
Jan 29th

Open on mobile:
QR code

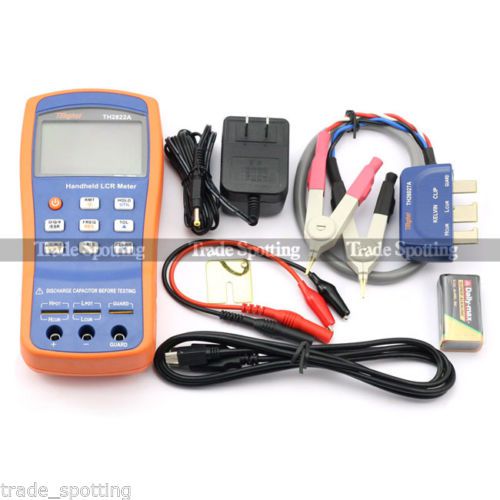

Trade_Spotting Trade_Spotting is a well-known online brand specialized on development board, professional test equipments. As a professional and reliable eBay seller, we source from SainSmart's manufactory directly before testing and packing. Brand New Portable Handheld LCR Meter TH2822A Capacitance Impedance 100Hz-10KHz Expedited Shipping Via DHL ,UPS,EMS... TH2822A adopts the ultra-low dissipation design and high density SMD assembly techniques and can simultaneously display primary and secondary parameters by the use of backlit LCD display. The dual-color shells are gorgeously once shaped; Functions are easy to operate. Gorgeously once shaped dual-color shells and easy operating functions are the characteristics of the meter. The test frequency is up to 10 KHz, the readings of primary parameter 40,000 counts and the resolution of dissipation factor 0.0,001. Accurate and convenient measurements of passive-components can be achieved in all occasions for a long time. With USB interface TH2822A can conveniently make data communication and remote control with PC. In order to satisfy the increasing test requirements for SMD and balance the different needs for performance and price, two types of 4-terminal Kelvin test tweezers: TH26009C and TH26029C are available for users’ choice. Features ? Basic measurement accuracy: 0.25% ? Gorgeous dual-color cast shell ? Maximum test signal frequency: 100kHz(TH2822C) ? 40,000 counts for primary parameter, D/Q resolution 0.0001 ? Typical ultra-low consumption : 25mA Battery capacity: TH2822/TH2822A,continuously used for 16hours TH2822C rechargeable batteries are optional ? Innovatively compatible terminal configuration : 5-terminal test slot and 3-terminal banana jack ? Intelligent Auto LCR function ? Measurement speed up to 4 meas/sec, fast automatic range TH2822 Series Handheld LCR Meters Perfect Combination of Outstanding Performance and Convenience switch design ? Constant output impedance: 100 Ohm ? Percentage display and 4-tolerance comparator: 1%, 5%, 10%, 20% (20% not available for TH2822) ? Automatic OPEN/SHORT correction detection ? Data Hold, Max/Min/ Average recording ? Utility function configuration and current setup recovery after power-off ? Standard Mini-USB interface, SCPI compatible ? Firmware update through Mini-USB interface ? Free FastAccess communication software on our website Function Measurement Parameters Primary Parameters: L / C / R / Z Secondary Parameters: D / Q / ? / ESR Equivalent Circuits Serial, Parallel Auto LCR Function Manual, Auto Ranging Mode Auto Test Terminals 3-terminal, 5-terminal Measurement Speed 4 meas/sec(Fast),1.5 meas/sec(Slow) Correction Short, Open Tolerance Mode TH2822 1%,5%,10% TH2822A/TH2822C 1%,5%,10%,20% Input protection fuse 0.1A / 250V Interface Mini-USB(virtual serial port) Test Signal Signal Frequency TH2822 100Hz, 120Hz, 1kHz (120Hz actual frequency 120.048Hz, be the same as below) TH2822A 100Hz, 120Hz, 1kHz, 10kHz TH2822C 100Hz, 120Hz, 1kHz, 10kHz, 100kHz Test Signal Level 0.6Vrms Output Impedance 100? Display Display LCD primary-secondary dual display Backlight(not for TH2822) Battery supply:when backlight is on, luminance is reduced by half 15s later and automatically turned off 30s later. Powered by adapter : backlight on until manually turned off Readings Max. counts of Primary Parameter: 40,000; D / Q / ? Min. resolution of secondary parameter: 0.0001 Basic Accuracy 0.25% (as shown in the table below) Power Supply Battery Model TH2822/TH2822A IEC 6LR61, 9V Alkaline battery TH2822C LH-200H7C,8.4V Ni-MH 200mAH rechargeable battery AC Adapter Input:220V(1±10%),50Hz(1±5%);Output:12V-15V DC Operating Current Max. :28 mA, Typical: 25mA(1kHz,100? load) Standby(Power off)Current Max: 2 ?A (Limited to non-rechargeable model) Battery Life TH2822/TH2822A 16 hours (Typical) based on backlight off and new alkaline TH2822C 6 hours ( Typical) based on backlight off and new fully charged Ni-MH battery Charge Time and Current(TH2822C) Continuous charging time:Max. 80 min. Charging current: Max. 42mA Auto Power off(val id for bat tery powered) 5min, 15min, 30min, 60min, OFF available; factory default :5min Low Voltage indicator When battery voltage drops below 6.8V, Low Voltage Indicator turns on General Operation Condition Temperature 0°C -- 40°C Relative Humidity
