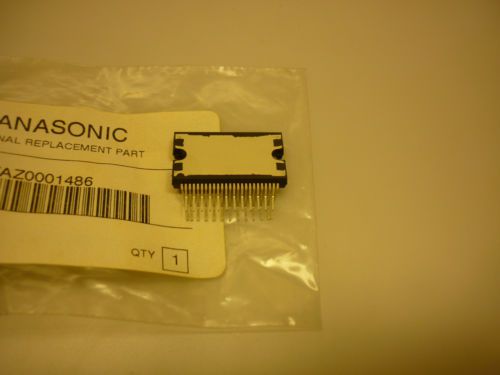

C1zaz0001486 / Tb2904hq Panasonic Oem Audio Power Ic For Cqc7105,7205 & 8405.

US $12.00

Downey, California, United States
Jan 29th

Open on mobile:
QR code

C1ZAZ0001486 / TB2904HQ Panasonic OEM Audio Power IC for CQC7105,CQC7205 & CQC8405 Item: Panasonic OEM Audio Power IC. for CQC7105,CQC7205 & CQC8405 TB2904HQ (o) Maximum Power 43 W BTL x 4-ch Audio Power IC The TB2904H (o) is 4-ch BTL audio amplifier for car audio applications. This IC can generate higher power: POUT MAX = 43 W as it includes the pure complementary P-ch and N-ch DMOS output stage. It is designed to yield low distortion ratio for 4-ch BTL audio power amplifier, built-in standby function, muting function, and various kinds of protectors. Additionally, Off-set detector is built in. Features •High power output : POUT MAX (1) = 43 W (typ.) P (VCC=14.4 V, f=1 kHz, JEITA max, RL=4?) : POUT MAX (2)=39 W (typ.)(VCC=13.7 V, f=1 kHz, JEITA max, RL=4?) : POUT(1)=26 W (typ.)(VCC=14.4 V, f=1 kHz, THD=10%, RL=4?) : POUT(2)=23 W (typ.)(VCC=13.2 V, f=1 kHz, THD=10%, RL=4?) •Low distortion ratio: THD=0.015% (typ.)(VCC=13.2 V, f=1 kHz, POUT=5 W, RL=4?) •Low noise: VNO=90?Vrms (typ.)(VCC=13.2 V, Rg=0?, BW=20 Hz to 20 kHz, RL=4?) •Built-in standby switch function (pin 4) •Built-in muting function (pin 22) •Built-in Off-set detection function (pin 25) •Built-in various protection circuits: Thermal shut down, overvoltage, out to GND, out to VCC, out to out short, speaker burned •Operating supply voltage: VCC(opr)=9 to 18 V (RL=4?) Items is New ,opened for Pictures. Once Used ,No Return & No Refund. Panasonic C1ZAZ0001486 Ic Part Number C1ZAZ0001486 Description Ic Substitute Part TB2904HQ Core Price 0.00 Part Price 30.54 Total Price 30.54 Compatible Models Panasonic CQC7105U Panasonic CQC7205U Panasonic CQC8405U Kenwood KDC1028 Kenwood KDC128

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“tem: Panasonic OEM Audio Power IC. for CQC7105,CQC7205 & CQC8405Items is New ,opened for Pictures. Once Used ,No Return & No Refund. Panasonic C1ZAZ0001486 Ic Part Number C1ZAZ0001486Description IcSubstitute Part TB2904HQCore Price 0.00Part Price 30.54Total Price 30.54 Compatible ModelsPanasonic CQC7105U Panasonic CQC7205U Panasonic CQC8405U Kenwood KDC1028 Kenwood KDC128”
