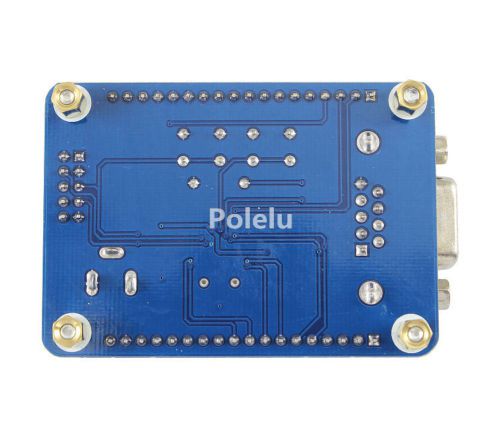

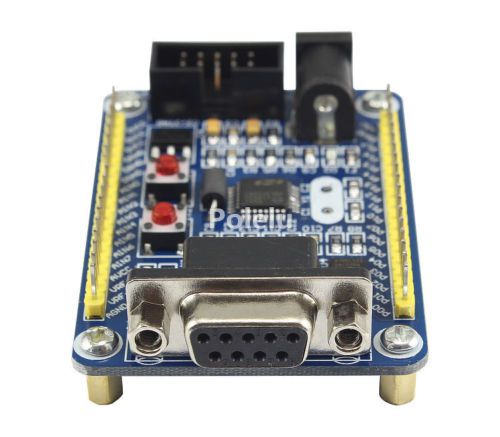

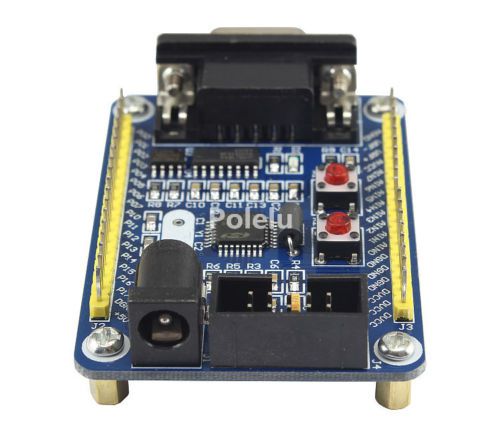

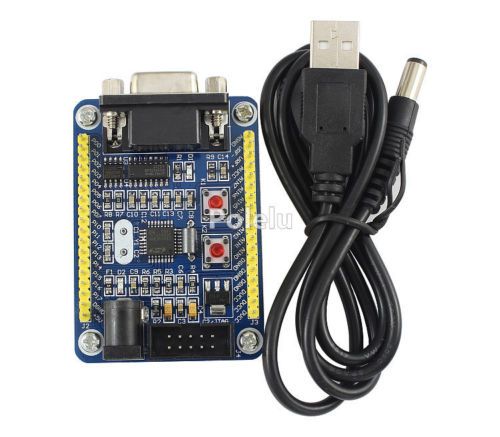

C8051F350 Core Development Board C8051F SCM Minimum System Board With USB, US $342 – Picture 0

C8051F350 Core Development Board C8051F SCM Minimum System Board With USB, US $342 – Picture 1

C8051F350 Core Development Board C8051F SCM Minimum System Board With USB, US $342 – Picture 2

C8051F350 Core Development Board C8051F SCM Minimum System Board With USB, US $342 – Picture 3

C8051F350 Core Development Board C8051F SCM Minimum System Board With USB, US $342 – Picture 4

C8051f350 Core Development Board C8051f Scm Minimum System Board With Usb

US $342

GuangZhou, China
Jun 9th

Open on mobile:
QR code

C8051F350 Core Development Board C8051F SCM Minimum System Board With USB Description Specification: (1)High-speed pipelined 8051-compatible CIP-51 core, the maximum 50MIPS speed of execution; (2)Full non-intrusive debug interface (on-chip, C2 interface); (3)24 bits 1ksps 8-channel single-ended / differential ADC, with analog multiplexer; (4)2-channel 8-bit current DAC; (5)Precision programmable 24.5MHz internal oscillator; (6)8KB byte FLASH memory in-system programming; (7)768 (512 + 256) bytes of on-chip RAM; (8)Hardware implementation of SPI, SMBus / IIC and UART serial interfaces; (9)4x general-purpose 16-bit timers; (10)Having three capture / compare module programmable counter / timer array; (11)On-chip power-on reset, watchdog timer, two voltage comparators, VDD Monitor, and Temperature Sensor; (12)17x I/O ports; (13)-40 To 85 degrees industrial temperature range; (14)2.7V ~ 3.6V operating voltage, LQFP32 package. Board Resources: (1)MCU for American Silabs' company C8051F350,8KB FLASH, (512 + 256) B RAM, up to 50MIPS speed of execution; (2)8-channel 24-bit AD inputs, AIN1 to AIN8; (3)2-channel eight current-output DAC output range 0 ~ 2V; (4)1-channel standard RS232 communication interface; (5)IIC EEPROM AT24C02 interface; (6)1x LED could be under control by programmable; (7)1x reset button and 1x separate button; (8)JTAG (C2) debug interface (9)All I/O port are brought out to the pin header in order to do other Experiments (10)(Default) Use internal oscillator,we reserve the position of external crystal oscillator,customers can solder their own crystal if they need. Package List: 1. 1x C8051F350D core board. 2. 1x USB to DC port power line. 3. 1x PDF(Product introduction in English) will send by email if you need. Payment We only accept PayPal. Payment must be made within 7 calendar days of the auction end time. We reserve the right to cancel your order if the payment is not made within 7 calendar days of checkout. We will use your Ebay/Paypal shipping address as the delivery address. Please make sure to provide us with correct and detailed shipping address. To Russia, please the receiver name must write your full name as post office required. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Shipping Detail All the items to USA will ship via ePacket with tracking number. To UK and Australia the buyer can choose "Expedited Int'l Shipping", we also will ship via ePacket with tracking number, it is better than registered mail,usually delivery time is 7-20 business day. But to Australia ZIP code 2898/2899/6798/6799/7151 can NOT ship via ePacket. Other countries, total price below $30 we will ship your item without tracking number. Otherwise, if you need Registered Mail shipping, please add $2.5(Can choose "Standard Int'l Shipping",we will ship via registered mail). Usually all the items will be shipped via Hong Kong Post Airmail or China Post Airmail. If you need the other express way(EMS/DHL/FedEx/UPS),please contact with us for the correct price. Your order will be dispatched within 2 business days after the full payment is cleared. Airmail Packets' Delivery Time(reference only): USA,Australia,New Zealand,Southeast Asia, East Asia. 7-20 business days. Most European countries (France,Spain,Germany,UK,Sweden, Norway, Denmark,Netherlands,Austria,Portugal, Croatia, Finland, Switzerland, etc.) ,Canada,10-25 business days. Some remote city will take more than 25 business day. Italy,Russia, Brazil, Turkey, Ukraine, India, 14-35 business days, 90% take long time. Eastern Europe,West Asia,Central Asia, 15-30 business days,80% take long time. Africa,Chile,Argentina,Mexico,Other Countries. 15-40 business days,usually long time. Delivery time depends on postal process and other factors(Weather,Vacation,Customs,etc.),it can receive as fast as 7 days,but it can take as long as 4-7 weeks in some cases. If you do not get your item in reference delivery time, please contact us first through ebay message (Please do NOT open any case), we will reply you as soon as possible(within 24 business hours). Return Policy Please contact us before you leave Negative or Neutral Feedback if you are not satisfied with our products,we will resolve it asap. DOA(Dead On Arrival) or Wrong Item will be offered exchange. Refund will be offered if stock is not available Defective goods must be returned within 30 days after receiving it for exchange or refund. Buyer is responsible for return shipping cost in any situations. Contact us Please feel free to contact us from ebay if you have any questions , we will reply you within 48 hours except the weekends and public holidays. Please contact with us before you leaving Negative or Neutral feedback, and please DO NOT open any case, we will try my best to resolve your problems ASAP.
