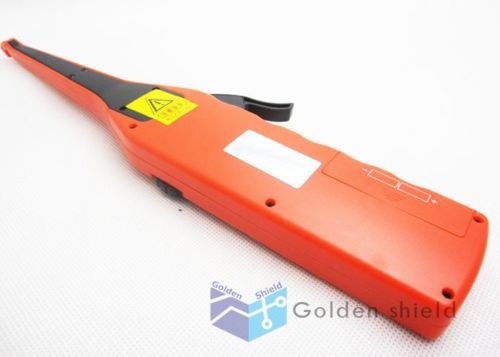

Car Circuit Tester Auto Truck Test Pencil LED Lamp Wire Detector Diagnostic Tool, US $49.59 – Picture 1

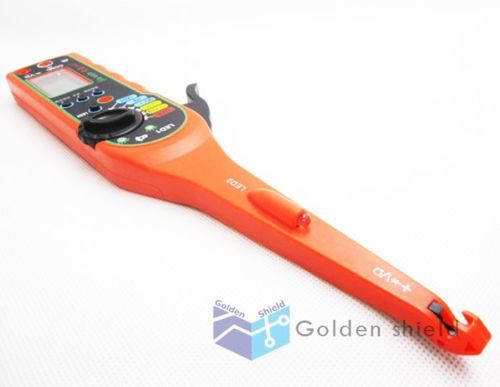

Car Circuit Tester Auto Truck Test Pencil LED Lamp Wire Detector Diagnostic Tool, US $49.59 – Picture 2

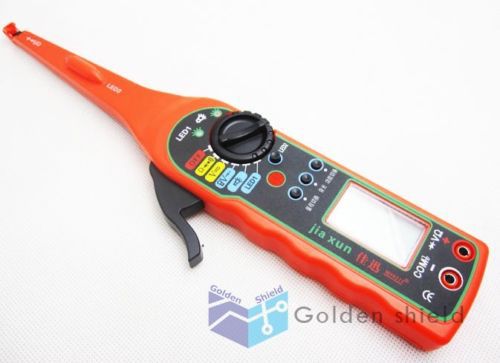

Car Circuit Tester Auto Truck Test Pencil LED Lamp Wire Detector Diagnostic Tool, US $49.59 – Picture 3

Car Circuit Tester Auto Truck Test Pencil Led Lamp Wire Detector Diagnostic Tool

US $49.59

Shenzhen,China, China
Jan 29th

Open on mobile:
QR code

If you need more qty(5 and more), please contact with us to get a good price. Description: The present invention products are automobile circuit fault detection is the most advanced equipment, the rubber surface in the wires can accurately detect various fault and voltage wire inside. Functions: 1. Find out the front line with unique hook, the rubber surface in the wires can accurately detect internal various fault and voltage wires, signal (detection convenient and quick easily). 2. Have the function of the multimeter (voltage, resistance, diode, a buzzer) 3. Have multiple test try lamp. 4. Can test the pulse signal function 5. And high brightness lighting. 6. Designed test contact undesirable and aging line special function. 7. The unique structure design, easy car circuit narrow space operations. Also conducive to automobile electric appliances decoration use, such as install alarms, audio, GPS guard against theft, subwoofer and so on! Opration instructons: ? Voltage Measurement Gear 1. Connect the alligator clip of black test pen to the ground, turn the knob switch to the voltage measurement gear, use the feeler to hook the detected rubber cover wire, press down trigger, and head the probe against the front detected rubber cover wire. In case of any power in wire, LCD will naturally display accurate voltage in wire. (0V-6V DC voltage can be measured). 2. Press function switch key (SELECT), LCD will display alternating current symbol (AC) to measure 0V-380V AC voltage. ? Test Lamp & Multimeter Voltage Gear The gear especially detects the wires with bad contact or aging wires. Before test, connect the alligator clip of black test pen to the ground, turn the knob switch to the test lamp & multimeter voltage gear ,use the feeler to hook the detected rubber cover wire, press down trigger, and head the probe against the front detected rubber cover wire. If the front end of the detected wire is 12V (normal voltage), and then measure the voltage of back end of the wire, "if LCD displays the voltage less than 10V" indicates that the back end of the wire has bad contact or is aged. ? Light-emitting Diode (LED 1) Test Lamp 1. Connect the alligator clip of black test pen to the ground, turn the knob switch to the light-emitting diode (LED1) test lamp gear, use the feeler to hook the detected rubber cover wire, press down trigger, and head the probe against the front detected rubber cover wire. In case of any power in wire, LED will be on. 2. Short-circuit and open-circuit test of auto circuits. 3. Test of ignition system 4. Test of generator 5. Test of charging system 6. Test of input and output signal of sensor 7. Test of executive component signal 8. Especially applicable to the test of pulse signal: oil injection nozzle and vehicle speed sensor ? Resistance Measurement Gear 1. Turn the knob switch to the resistance (?) gear, and connect positive and negative test pens to two ends of resistance on circuit board to accurately measure the resistance value. 2. Press function switch key (SELECT), LCD will display LED symbol ( ? ) to detect diode and triode. 3. Press function switch key (SELECT) twice continuously, LCD will display buzzer symbol ( ? ), and use positive and negative pens to detect on/off. ? Test Lamp Gear 1.Connect the alligator clip of black test pen to the ground, turn the knob switch to the test lamp (? ) gear, use the feeler to hook the detected rubber cover wire, press down trigger, and head the probe against the front detected rubber cover wire. If the wire has 12V power, the test lamp will be on. 2. Test short-circuit and open-circuit of automobile circuits. 3. Especially applicable to low-voltage current conduction. ? Operation Drawing in Narrow Space 1. In narrow place where your body fails to enter for operation, the surrounding parts must be removed if you use general tools (multimeter or test lamp). 2. In the place where the space is narrow or light is weak, the instrument detects as usual, because the forefront of the product has feeler. Without high-brightness (LED) lighting lamp, it can detect faults without removal of any parts, which saves time and effort. ? Nighttime Operation Automobile circuits are often repaired at night and in the place where the light is weak. The operation is very troublesome if general tool is used. But the instrument can detect without other lighting facilities and also can be used as flashlight. ? Backlight Press (BLCTR3) switch for 3s, LCD super-brightness LED backlight will be on, and backlight is intelligent and will be closed automatically after 30s. Items are only shipped after PAYMENT is received Please check out your ADDRESS carefully when processing order If you haven't received the parcel in 25 days,please allow us 2-3 days for checking undelivered packages before we issue you refund We can't ship to African countries becasuse of shipping company policy. To USA UK Austrial 7-15 days by e-package, others 15-45 days. If you want to send DHL / UPS / TNT/ Fedex please contact me alone to change the price. Accepts payment with PayPal. Via paypal you can use all major credit cards. Items do not ship until payment is recieved in full. If the item is defective, please notify us within 7 days after the receipt of the item. The item shall be return in its original condition, in order to get it refunded or replaced We rely on our reputation and customer satisfaction to succeed,Therefore,your feedback is extremely important to us ,please leave good feedback to us if you get satisfied with our goods and service. We care about our valued customers,and will always try to help you. Please give us the opportunity to resolve any problem.We understand the concerns and frustrations you might have,and will try your best to resolve the issues. Please email us before leaving any negative feedback or opening any dispute on the site.We will help you to resolve the problem Attention! eBay Custom Tax Policy The policy of customs clearance may differ from each country. We are not responsible for any applicable customs charge, taxes and duties. Import duties and taxes are buyer's responsibility. If you have any inquiry for custom clearance, please leave a message. We will mark the price you want to declare after communication. On Oct-22-14 at 02:10:35 PDT, seller added the following information:

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Country/Region of Manufacture

China
