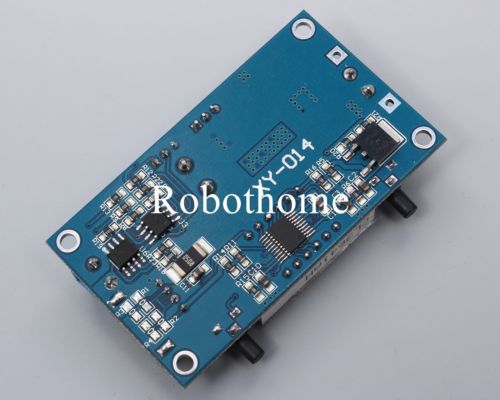

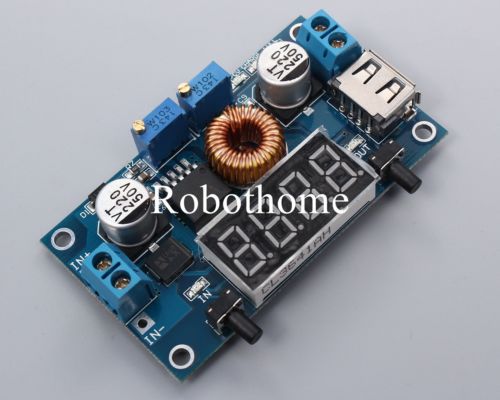

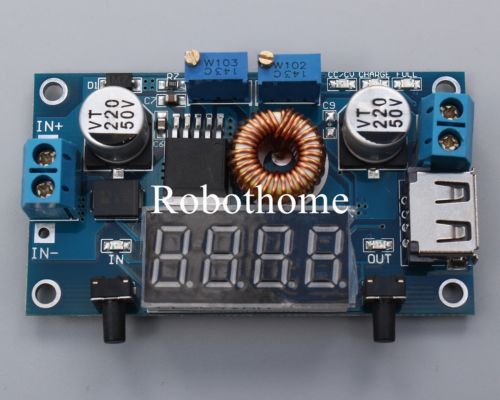

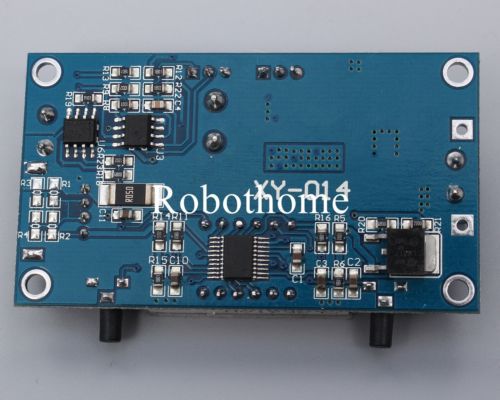

Cccv 5v Step-down Power Supply Module Stable Red Led Display 68.2x38.8x15mm

US $11.76

??, ???, China
Jun 9th

Open on mobile:
QR code

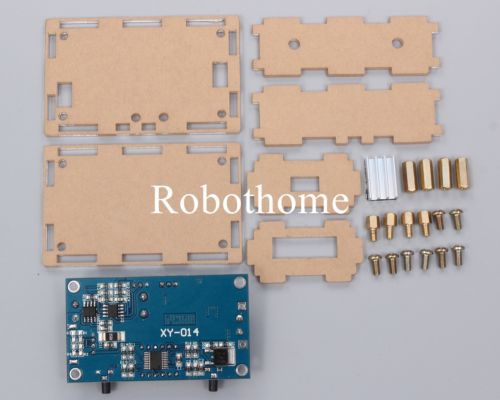

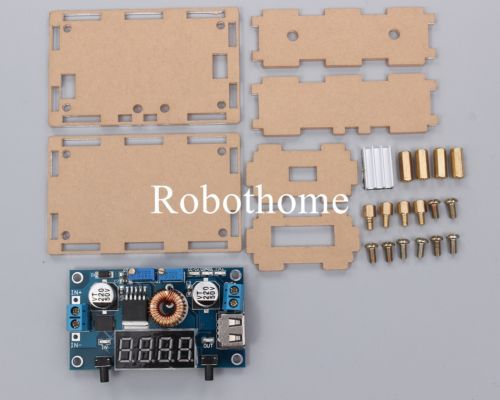

Store Home New Arrivals Best Sellers Shipping Payment Feedback Store Categroy Store home Controller Raspberry Pi 3D Printers Robot Kits Sensor Servos/Motor&Driver Communication module Power DIY LCD&LEDS Relay Voice&Camera Digital Voltmeter Wholesale&Combination ICs Cables&Connectors PCB board & Breadboard Tools Component Other Industrial Automation Helpful Links Store Newsletter Add my Store to your Favorites and receive my email newsletters about new items and special promotions! General Interest Hot Products title $17.50 title $57.00 title $4.33 title $2.50 title $7.95 title $5.24 title $1.90 CCCV 5V Step-Down Power Supply Module Stable Red LED Display 68.2x38.8x15mm 5A LED Drive Lithium battery charger with Voltmeter Ammeter DCDC module with shell Highlights : 1.Module with crystal shell, safer and more beautiful. 2.Contains the voltmeter, ammeter, power meter, USB interface for charging the digital products. Note: 1.When you use the product, the module inputs and outputs to be isolated from ground. 2.USB output voltage is consistent with the module, not a fixed 5V output. When charging for digital equipment, make sure USB output voltage is 5V. 3.Some customers report: “The module can not adjust the output voltage is always equal to the input voltage.” When you encounter this problem, please counterclockwise rotation of the “voltage potentiometer” 10 laps or more, then use the module you can adjust the output voltage. Because the factory default output voltage of about 20V. 4.Shell assembly is very simple, but "left" "right" "front" panel are directional, you must pay attention during assembly! Specifications 1.Input voltage range:5-36VDC(Input voltage higher than 6.2V, constant function will be effective) 2.Output voltage range:1.25-32VDC adjustable(Output voltage higher than 6.2V, constant function will be effective) 3.Output current: 0-5A 4.Output power: 75W 5.High efficiency up to 96% 6.Built in thermal shutdown function 7.Built in current limit function 8.Built in output short protection function 9.Input reverse polarity protection: None (if required, high current diode in series with the input). 10. Bare board size:L x W x H =68.2x38.8x15mm 11.Weight: 73g Application 1.Use as a step-down modules with overcurrent protection Usage: (1) Adjust the right button so that “OUT” LED lighted, Digital meter shows the value of output voltage ,adjust the “voltage potentiometer” so that the output voltage reaches the value you want. (2) Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the “current potentiometer” so that the output current reaches a predetermined overcurrent protection value. (For example, the Digital meter displays the current value of 4A, then you can use the module to a maximum current of 4A) (3) Connected to the load. 2.Use as a battery charger Usage: (1) Make sure you need to charge the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA) (2)Under no-load conditions, adjust the “Voltage potentiometer” so that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V) (3)Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the “current potentiometer” so that the output current reaches a predetermined Charging current value. (4)Charge turn lamp current factory default is 0.1 times the charging current; (Battery during charging current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged) (5)connected to the battery charge. (1,2,3,4 steps as: Output is unloaded, do not connect the battery) 3.Use as a LED constant current driver module Usage: (1)Adjust the “voltage potentiometer” so that the output voltage reaches the value you want. (2)Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the “current potentiometer” so that the output current reaches a predetermined LED operating current. (3)Connect LED, work. (1,2 steps as: Output is unloaded, do not connect LED) Voltmeter and ammeter calibration method: Module with manual calibration function can correct display precision voltage and current, if you think the current voltage and current accuracy to meet the requirements, do not perform the following operations. (1) Output voltage calibration steps Step 1, adjust the right button so that “OUT” LED lighted, Digital meter shows the value of output voltage; Press the right button for more than 2 seconds, release, Digital meter and “OUT” LED flashes in synchronization so that you enter the output voltage calibration mode. Step 2, press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press. Step 3, press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save. (2) Input voltage calibration steps Step 1, adjust the right button so that “IN” LED lighted, Digital meter shows the value of input voltage; press the right button for more than 2 seconds, release, Digital meter and “IN” LED flashes in synchronization so that you enter the input voltage calibration mode. Steps 2 and 3, consistent with the output voltage calibration method. (3)Output current calibration steps Step 1, adjust the right button so that Digital meter shows the value of output Current. Press the right button for more than 2 seconds, release, Digital meter flashes in synchronization so that you enter the output current calibration mode. Step 2,Connected to the load, ammeter in series, adjust the right and left button to change the display of digital meter, so that is consistent with the ammeter display . You mean get instrested in the following items: http://www.ebay.com/itm/5V-30V-Red-Current-Voltage-Display-5A-Step-Down-Module-LED-Panel-Meter-output-/390858254123?ssPageName=STRK:MESE:IT http://www.ebay.com/itm/DC-DC-Step-Up-Boost-4-5V-32V-to-5-42V-6A-Power-Apply-High-Power-Brand-New-/221476179257?ssPageName=STRK:MESE:IT http://www.ebay.com/itm/LM2596-1-23V-30V-DC-DC-Buck-Converter-Step-Down-Module-Power-Supply-Output-/221751756041?ssPageName=STRK:MESE:IT http://www.ebay.com/itm/DC-4-5-30V-0-100A-Dual-LED-Digital-Volt-meter-Ammeter-Voltage-brand-new-/390858187063?ssPageName=STRK:MESE:IT http://www.ebay.com/itm/LM2596S-Power-Module-DC-DC-Buck-Converter-Step-Down-Module-Input-DC-3V-40V-/221477033720?ssPageName=STRK:MESE:IT If you order more than one pc of them together,I will offer you some discount. Please donnot forget to contact me before pay for them~ SHIPPING PAYMENT RETURNS FEEDBACK ABOUT US 1)All items will be shipped to your paypal address .Please update your latest address when you check out,and please make sure to provide us with correct,precise and detailed shipping address. 2)Most of the items will be shipped via Hongkong Airmail/Singapore Airmail .To US customers,we will send the package via E-packet . 3)All items will be shipped in 1-2 business days (excluding Sat,Sun & Holiday) after payment received and cleared. For the long-time holiday, we'll post the info on our store and reply you automatically via emails. 4)Tax:We will do our best to help you to clear the goods,and the tax depends on each country custom. 5)If you don't receive items over 30 business days,please make sure to contact us before leaving any neutral or negative feedbacks.We'll try our best to help you solve the problem. 6)The product in our store is free shipping. But the shipping method is different based on your order.If your order is more than $50 ,we will send the items to you with tracking number for free.If your order is less than $50,the registered mail fee is on your side. We could also deliver your item via EMS,DHL or Fedex based on your requirement. We Only Accept Paypal on Ebay. For specific requirements, please feel free to contact us. 1)If for some reason you're not satisfied with our service or product quality, please contact us within 3 days after you get the package, you can return the products to us in original package and we will refund your money after we get the package!(Shipping cost is NOT refundable and you should responsible for the return shipping) 2)Although we test each item and they are packed professionally, few item(less than 0.1%) might be damaged during the shipping. You are welcome to contact us within 3 days after you receive your package about replacement. 3)Repair Some items might be broken caused by improper use, we are always happy to offer any helpful repair service. Of course, you can send the broken items back to us and we will help you resolve the situation and charge reasonable repair fees. Feedback is important to all of us participating on the eBay community. We are always working hard for maintain high standards of excellence and strive for 100% customer satisfaction. So your POSITIVE FEEDBACK is very important. Here is an illustration showing how to leave the positive feedback, please follow the following step. Thank you so much. And welcome back to our store again. robothome is a leading company specializes in all kinds of IC products, such as electronic devices and components, development modules, development boards, consumptive materials and so on. robothome has gained thousands upon thousands of registered customers from all over the world. We offer world wide free shipping and have already shipped to more than 150 countries including United Sates, United Kingdom, Canada, Australia, France, Germany, Russia, Italy, New Zealand, Spain, Brazil, Japan, Singapore, Korean, etc. Here is a list of reasons for trusting robothome as your reliable source of IC products or business cooperator: 1.High Quality Products 2.Competitive Price 3.Excellent Research & Development team 4.Excellent shopping platform 5.Excellent Customer Experience 6.Excellent Team Work In robothome, we provide variety of IC products, sell them at the best price, and offer the best service.You will never regret to have robothome as your reliable IC item source, supplier, and business cooperators. Controller Robot Kits Sensor Servos/Motor&Driver Communication Module Power DIY LCD & LEDs inkFrog Analytics

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded
UPC	Does not apply
Model	Does not apply
Type	Does not apply
MPN	Does not apply
Color	Does not apply
Country/Region of Manufacture	China
Material	Does not apply
