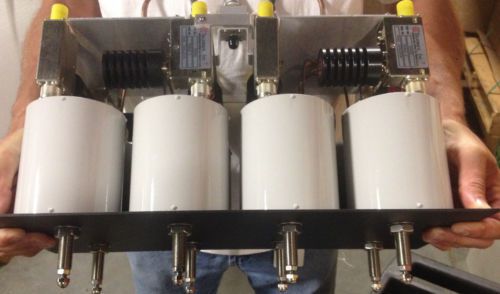

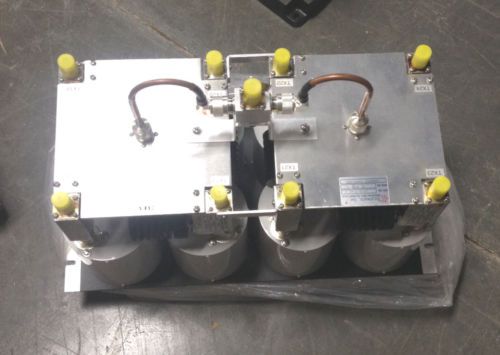

Ceramic Combiner

US $250.00

  • Hanover, Maryland, United States
  • Feb 12th
Open on mobile:
QR code

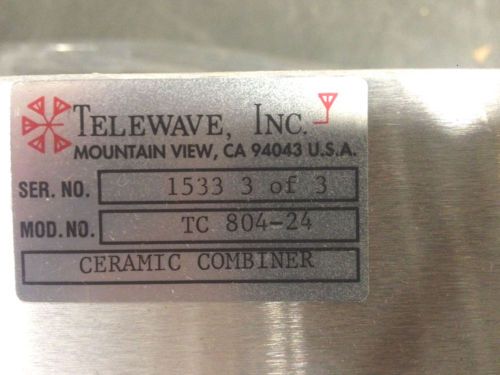

TC804 SERIESEXPANDABLE CERAMIC CELLULAR COMBINERS869 - 896 MHzSPECIFICATIONSFrequency range869-896 MHzFrequency spacing (min)360 KHzTemperature0°C to +50°CTX to TX isolation (min)65 dBAnt to TX isolation (min)60 dBInsertion loss (typ.)1.8 dB - 4 ch. at 630 KHz2.5 dB - 16 ch. at 630 KHz3.8 dB - 24 ch. at 630 KHzPower input / channel80 WTransmitter input VSWR (max)1.25:1Dimensions (HWD) in. (cm)8.75 x 19 x 14.75 (22.2 x 48.3 x 37.5)Depth from front panel in. (cm)13 (33)Weight lb. (kg)45 (20.4)Ceramic Low Loss Combining is another first from Telewave, pioneers of Low Loss Combining.Our CELLCO product line provides complete selection of ceramic cavity filters and combiners, for cellular and SMR site management.Telewave’s ceramic resonators offer the same high performance as our standard low loss cavities, in a much smaller package.The TC804 Cellular Ceramic Enhanced Low Loss Combiner combines up to 8 channels in only 8.75” of standard 19” rack space.Ceramic enhanced resonators allow combining of transmitters at a frequency spacing as close as 360 KHz. Lower insertion loss per channel is another result of the sharper selectivity of the resonators. This unique design also permits tuning under full power at 80 watts per channel, without damage to the resonators.
