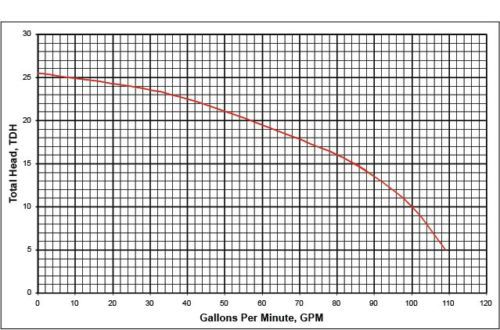

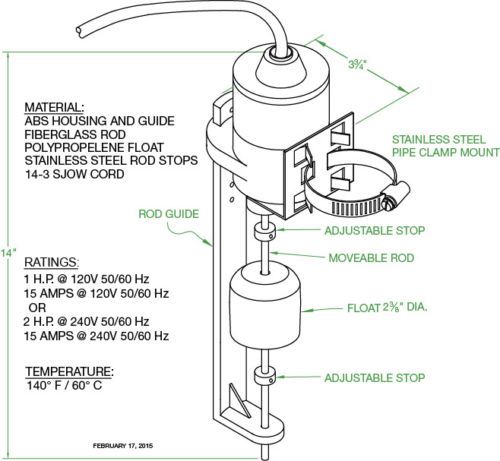

Champion Pump Cpw5-12 H 1/2 Hp Up To 109 Gpm With 25 Foot Head W Vertical Switch

US $340.00

Edwardsburg, Michigan, United States
Mar 3rd

Open on mobile:
QR code

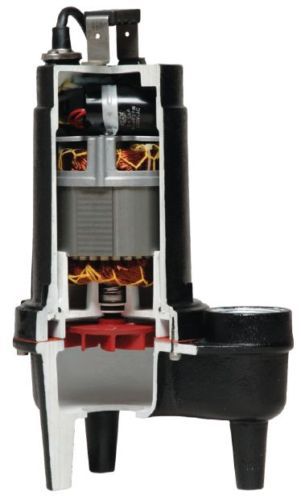

Free Shipping! 2 Year Warranty Submersible non-clog sewage pumps are designed for typical raw sewage application. FEATURES/BENEFITS High Efficient Motor With Upper & Lower Ball Bearings/ Runs Cooler & Last Longer Cast Iron Vortex Impeller/ Helps Prevent Clogging Inboard Seal-Rotating Components Of Seal Are In The Motor Housing, Lubricated By The Motor Oil/ Seal Will Last Longer If Pump Runs Dry, Hair And Debris Cannot Wrap Around Seal Components Secondary Exclusion Seal/ Keeps Debris From Entering Seal Cavity Sealed Entry-Replaceable Power Cord/Easy To Replace In The Field, Prevents Water From Entering The Motor Housing Through A Cut Power Cord (Up to 50’ Available) Piggy-Back Switch Design/ Defective Switches Can Be Diagnosed By Phone; Pump Can Be Operated Manually by Overriding The Switch Every Pump Is Tested in Water/ Ensures That The Pump Meets Head & Flow Requirements APPLICATIONS Basements; Dewatering, Septic Systems, Sewage Lift Stations/Add A Baths, Truck Docks Discharge 2” NPT. Solids Handling 2” Liquid Temperature 140 Degrees F. (Intermittent) Motor Housing Cast Iron Impeller Cast Iron/Vortex Shaft Stainless Steel Shaft Seal Inboard Mechanical With Secondary Exclusion V-Seal Carbon- Rotating Face Ceramic- Stationary Face Buna-N-Elastomer 300 Series Stainless Steel-Hardware Bearing (Upper & Lower) Single Row, Ball, Oil Lubricated Hardware 300 Series Stainless Steel Square Rings Buna-N Cord (UL/CUL) Listed 16 AWG, Type SJTW 10’ Length Standards. Up To 50’ Available Cord Entry Compression Grommet- Outer Jacket Seal, Quick Disconnect Pin Terminals Motor (Single Phase) 1/2 HP, 3450 RPM, 60Hz NEMA L Includes Overload Protection In The Motor. Oil Filled, Class B Permanent Split Capacitor Weight 38lbs (Manual) Model CPW5-12 HP 1/2 Volt 115 Phase 1 Hz 60 Amps 11.5 Cord Length 20

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Champion Pump
Power Source	Electric
Model	CPW5-12 V
Type	Waste Water
MPN	CPW5-12 V
