Char-lynn Eaton 119-1028-003 Series 10,000 Hydraulic Motor New In Box

US $1,150.00

United States
Feb 25th

Open on mobile:
QR code

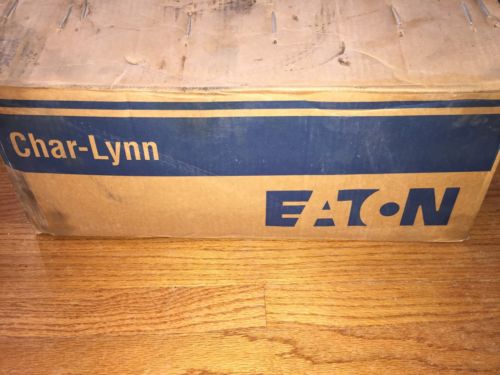

This motor is new unused surplus , box has been opened for pictures. Item is located in Oklahoma City , OK USA. We can assist in shipping but must go motor freight due to weight. 10,000 Series Highlights Description This is the biggest disc valve motor of our line with up to 45 GPM and 24,000 in-lb of torque in continuous mode, this motor is powerful and yet provides good efficiency. Features • High torque and flow • Many options like 2 speed and speed sensors make this motor “smart” • Low pressure loss even in higher flows Benefits • High power density for demanding mobile and industrial applications • Many options to draw from Applications • Boring • Industrial • Metal Forming • Port Equipment • Saw Mill Boring Metal Forming Specifications Geroler Element 4 Displacements Flow l/min [GPM] 170 [45] Continuous** 265 [70] Intermittent* Speed RPM 501 Cont.** 784 Inter.* Pressure bar [PSI] 200 [3000] Cont.** 270 [4000] Inter.* Torque Nm [lb-in] 2700 [23910] Cont.** 3440 [30460] Intermittant 10,000 Series Motors Displ. cm3 /r [in3 /r] 345 [21.0] 480 [29.3] 665 [40.6] 940 [57.4] Max. Speed Continuous 501 354 254 179 (RPM) @ Flow Intermittent 784 552 396 279 Flow Continuous 170 [45] 170 [45] 170 [45] 170 [45] l/min [GPM] Intermittent 265 [70] 265 [70] 265 [70] 265 [70] Torque* Continuous 1040 [ 9220] 1475 [13050] 2085 [18450] 2700 [23910] Nm [lb-in] Intermittent 1390 [12310] 1965 [17410] 2610 [23080] 3440 [30460] Pressure Continuous 205 [3000] 205 [3000] 205 [3000] 190 [2750] ? bar Intermittent 275 [4000] 275 [4000] 260 [3750] 240 [3500] [? PSI] Peak 275 [4000] 275 [4000] 275 [4000] 260 [3750] Weight Standard or 43,5 [96.0] 45,4 [100.0] 46,3 [100.0] 47,2 [104.0] kg [lb] Wheel Mount Bearingless 31,3 [69.0] 33,1 [73.0] 33,1 [73.0] 34,9 [77.0] *See shaft torque ratings for limitations.. Maximum Inlet Pressure: 275 bar [4000 PSI] Do not exceed ? pressure rating (see chart above). Maximum Return Pressure: 275 bar [4000 PSI] with case drain line installed. Do not exceed ? pressure rating (see chart above). Maximum Case Pressure: 20 bar [300 PSI] ? bar [? PSI] : The true pressure difference between inlet port and outlet port Continuous Rating: Motor may be run continuously at these ratings Intermittent Operation: 10% of every minute Peak Operation: 1% of every minute Recommended Fluids: Premium quality, anti-wear type hydraulic oil with a viscosity of not less than 70 SUS at operating temperature. Recommended System Operating Temp.: -34°C to 82°C [-30°F to 180°F] Recommended Filtration: per ISO Cleanliness Code, 4406: 20/18/13

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Char-Lynn Eaton
MPN	119-1028-003
Model	119-1028-003
Country/Region of Manufacture	United States
