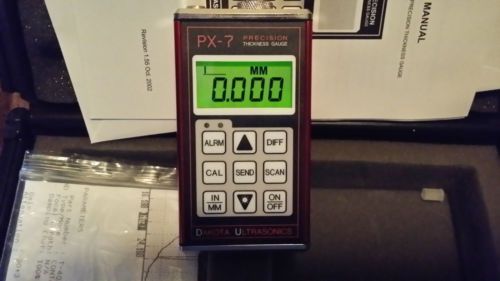

Checkline PX-7 Precision Ultrasonic Wall Thickness Gauge, Dakota Ultrasonics, US $1,500.00 – Picture 0

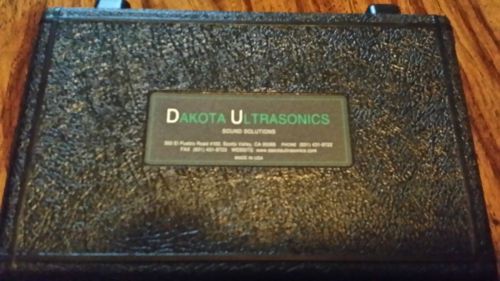

Checkline PX-7 Precision Ultrasonic Wall Thickness Gauge, Dakota Ultrasonics, US $1,500.00 – Picture 1

Checkline PX-7 Precision Ultrasonic Wall Thickness Gauge, Dakota Ultrasonics, US $1,500.00 – Picture 2

Checkline Px-7 Precision Ultrasonic Wall Thickness Gauge, Dakota Ultrasonics

US $1,500.00

Springdale, Pennsylvania, United States
Jan 30th

Open on mobile:
QR code

Checkline PX-7 Precision Ultrasonic Wall Thickness Gauge The PX-7 is a precision ultrasonic wall thickness gauge specifically suited to make extremely precise and high-resolution measurements on thin-walled metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments. The gauges have a MEASURING RANGE from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in ECHO-TO-ECHO MODE as well as automatically switch to interface echo mode when measuring thicker materials and plastics. Specifications Range in Steel 0.0060-1.0000" (0.15-25.40 mm) Resolution .0001" (0.001 mm) Display 4 1/2 - Digit, 0.5" Backlit LCD Velocity Range 6,500-33,000 ft./sec (2000-10000 m/sec.) Transducer Single element with delay tip. 10 to 22 MHz frequency range. Probe Wearface PEEK (Polyethlethylketone) Cable 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 100 ft. (30 m) Temp. Limits Ambient: -20 to 120° F (-30 to 50° C) Material: 0 to 200° F (-20 to 100° C) Battery Type Two AA batteries Battery Life 150 hours Weight 10 ounces Size 2.5 x 4.5 x 1.25" (64 x 114 x 32 mm) Range in Steel 0.15-25.4 mm (0.0060-1.0000" ) Resolution .0001" (0.001 mm) Display 4 1/2 - Digit, 0.5" Backlit LCD Velocity Range 2000-10.000 m/sec. (6.500-33.000 ft./sec ) Transducer Single element with delay tip. 10 to 22 MHz frequency range. Probe Wearface PEEK (Polyethlethylketone) Cable 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 30 m (100 ft ) Outputs RS-232, single value when send key is pressed Temp. Limits Ambient: -30 to 50° C ( -20 to 120° F) Material: -20 to 100° C (0 to 200° F) Battery Type Two AA batteries Battery Life 150 hours Weight 285 gr Size 64 x 114 x 32 mm (2.5 x 4.5 x 1.25")

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“The unit was opened but never used.”
