Cincinnati Milacron Programming Manual 20” 32” 40” Retro Fit Hydro-tel Milling M

US $1400

Astoria, New York, United States
Jan 30th

Open on mobile:
QR code

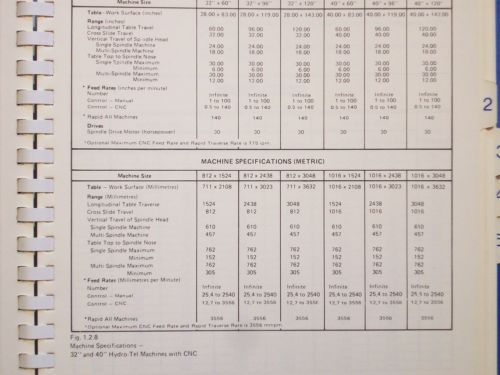

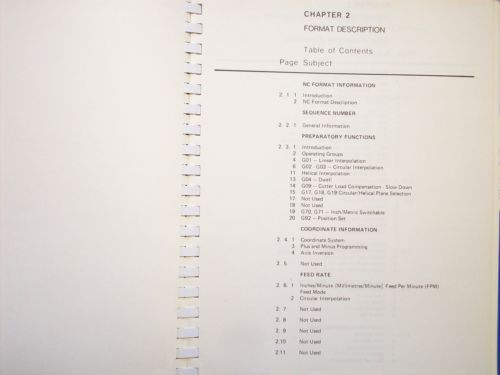

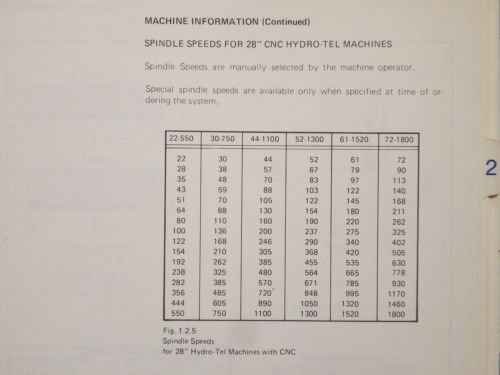

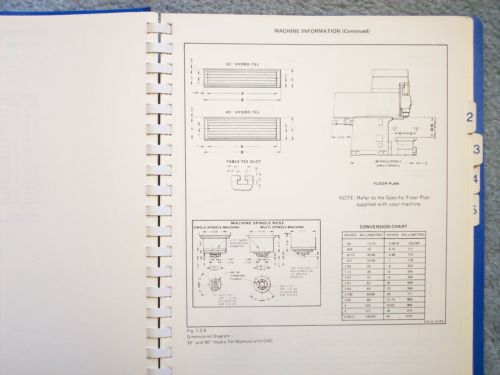

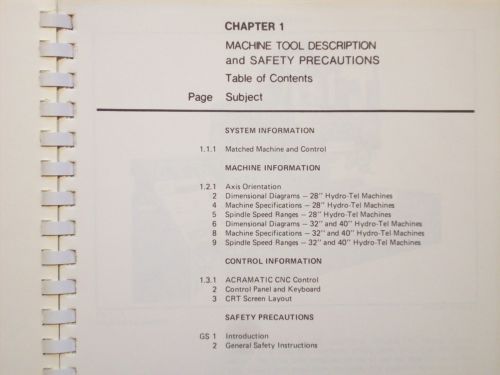

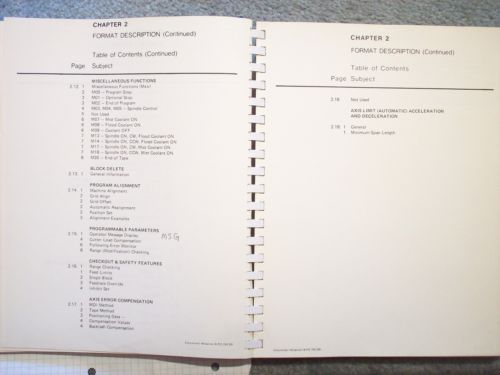

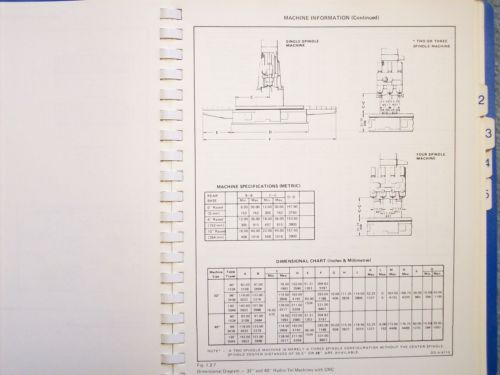

CINCINNATI MILACRON PROGRAMMING MANUAL 20” 32” 40” RETRO FIT HYDRO-TEL MILLING MACHINE ACRAMATIC CNC MODEL PC CONTROL PUBLICATION NO 6-RR-8012 LIKE NEW = BASICALLY SAT ON SHELF UNUSED FOR YEARS - MAY HAVE VERY FEW IF ANY PEN UNDERLININGS - MAY HAVE BEEN USED FOR REFERENCE ONLY A FEW TIMES. PLASTIC SPIRAL BINDER MAY HAVE MARKER PEN BOOK TITLE WRITTEN CHAPTER 1 MACHINE TOOL DESCRITPION AND SAFETY PRECAUTIONS DIMENSIONAL DIAGRAMS MACHINE SPECIFICATION SPINDLE SPEED RANGES ACRAMATIC CNC CONTROL CINCINNATI 3-AXIS VERTICAL HYDROTEL MILLING MACHINE CHAPTER 2 = FORMAT DESCRITTION SEQUENCE NUMBER PREPARATORY FUNCTIONS G01 G02 G03 G04 G09 G17 G18 G19 G92 MISCELLANEOUS FUNCTIONS M00 M01 M02 M03 M04 M05 M07 M08 M09 M13 M14 M17 M18 M30 BLOCK DELETE PROGRAM ALIGNMENT MRPGRAM MARAMETERS “MSG” WRITTEN HERE CHECKOUT & SAFETY FEATURES AXIS ERROR COMPENSATION AXIS LIMIT ( AUTOMATIC ) ACCELERATION AND DECELERATION NC FORMAT DESCRIPTION INCH FORMAT METRIC G01 LINEAR INTERPOLATION G02 G03 CIRCULAR INTERPOLATION HELICAL INTERPOLATION CIRCULAR HELICAL PLANE SELECTION AXIS RELATIONSHIP NOMENCLATURE PAGE 2-4-1 AXIS INVERSION CHAPTER 3 OPTION CONSIDERATIONS CUTTER DIAMETER COMPENSATION CDC PROGRAMMING G40 G41 G42 CUTTER DIAMETER COMPENSATION P Q R ( G41 G42 IS A WHOLE LIT EASIER – EVEN IF A CONTROL MANUAL DOES NOT INDICATE THIS – TRY IT – LOTS OF VARIOUS CODE ARE IN SOFTWARES BUT NOT REFLECTED IN THE MANUALS ) FEEDRATE OVERRIDE M48 M49 PART PROGRAM STORAGE FUNCTION LOCK CHAPTER 4 STANDARDIZED FORMS AND SAMPLE PROGRAMS CIRCLE DIAMOND SQUARE GLOSSARY A-AXIS THE AXIS OF CIRCULAR MOTION OF A MACHINE TOOL MEMBER OR SLIDE ABOUT THE X AXIS ( NORMALLY REFERRED TO AS “ALPHA”) ABSOLUTE ACCURACY ACCURACY MEASURED FROM A REFERENCE WHICH MUST BE SPECIFIED ABSOLUTE READOUT A DISPLAY OF THE TRUE SLIDE POSITION AS DERIVED FROM THE POSITION COMMANDS WITHIN THE CONTROL SYSTEM. ABSOLUTE SYSTEM A NUMERICAL CONTROL SYSTEM IN WHICH ALL POSITIONAL DIMENSIONS, BOTH INPUT AND FEEDBQCK, ARE GIVEN WITH RESPECT TO A COMMON DATUM POINT. ( THE ALTERNATIVE IS THE INCREMENTAL SYSTEM. ) ACCANDEC ( ACCELERATION AND DECELERATION ) ACCELERATION AND DECELERATION IN FEEDRATE, IT PROVIDES SMOOTH STARTS AND STOPS WHEN OPERATING IN NC AND WHEN CHANGING FROM ONE FEEDRATE VALUE TO ANOTHER ACCURACY 1. MEASURED BY THE DIFFERENCE BETWEEN THE ACTUAL POSITION OF THE MACHINE SLIDE AND THE POSITION DEMANDED. 2. CONFORMITY OF AN INDICATED VALUE TO A TRUE VALUE, I.E. AN ACTUAL OR AN ACCEPTED STANDARD VALUE. THE ACCURACY OF A CONTROL SYSTEM IS EXPRESSED AS THE DEVIATION ( THE DIFFERENCE BETWEEN THE ULTIMATELY CONTROLLED VARIABLE AND ITS IDEAL VALUE ), USUALLY IN THE STEADY STATE OR AT SAMPLED INSTANTS. ACRAMATIC THE REGISTERED TRADEMARK OF CINCINNATI MILACRON INC. FOR MACHINE CONTROLS. AD-APT AN AIR FORCE ADAPTION OF APT WITH LIMITED VOCABULARY, WHICH CAN BE EMPLOYED ON SOME SMALL TO MEDIUM SIZES OF U.S. COMPTUERS FOR NC PROGRAMMING. ADAPTIVE CONTROL A TECHNIQUE WITH THE AIM OF AUTOMATICALLY ADJUSTING FEEDS AND/OR SPEEDS TO AN OPTIMUM BY SENSING CUTTING CONDITIONS AND ACTING UPON THEM. ADDRESS 1. A SYMBOL WHICH INDICATES THE SIGNIFICANCE OF THE INFORMATION IMMEDIATELY FOLLOWING. 2. MEANS OF IDENTIFYING INFORMATION OR A LOCATION IN A CONTROL SYSTEM. 3. A NUMBER WHICH IDENTIFIES ONE LOCATION IN MEMORY. ALPHANUMERIC CODING A SYSTEM IN WHICH THE CHARACTERS ARE LETTERS A THROUGH Z, AND NUMERALS 0 TO 9. AMBIENT SURROUNDING ANALOG 1. IN NC THE TERM APPLIES TO A SYSTEM WHICH UTILIZES ELECTRICAL VOLTAGE MAGNITUDES OF RATIOS TO REPRESENT PHYSICAL AXIS POSITIONS. 2. PERTAINING TO INFORMATION WHICH CAN HAVE CONTINUOUSLY VARIABLE VALUES. PAGE 5-2-2 ANALOG DATA THE INFORMATION CONTENT OF AN ANALOG SIGNAL AS CONVEYED BY THE VALUE OF MAGNITUDE OF SOME CHARACTERISTICS OF THE SIGNAL SUCH AS THE AMPLITUDE PHASE, OR FREQUENCY OF A VOLTAGE, THE AMPLITUDE OR DURATION OF A PULSE, THE ANGULAR POSITION OF A SHAFT, OR THE PRESSURE OF A FLUID. ANALYST A PERSON SKILLED IN THE DEFINITION OF AND THE DEVELOPMENT OF TECHNIQUES FOR THE SOLVING OF A PROBLEM. APT ( AUTOMATICALLY PROGRAMMED TOOLS ) A UNIVERSAL COMPUTER ASSISTED PROGRAM SYSTEM FOR MULTI-AXIS CONTOURING PROGRAMMING. APT III PROVIDES FOR FIVE AXES MACHINE TOOL MOTION. ARC CLOCKWISE AN ARC GENERATED BY THE COORDINATED MOTION OF TWO AXES IN WHICH CURVATURE OF THE PATH OF THE TOOL WITH RESPECT TO THE WORKPLACE IS CLOCKWISE, WHEN VIEWING THE PLANE OF MOTION FROM THE POSITIVE DIRECTION OF THE PERPENDICULAR AXIS. ASCII ( AMERICAN STANDARD CODE FOR INFORMATION INTERCHANGE ) A DATA TRANSMISSION CODE WHICH HAS BEEN ESTABLISHED AS AN AMERICAN STANDARD BY THE AMERICAN STANDARDS ASSOIATION. IT IS A CODE IN WHICH 7 BITS ARE USED TO REPRESENT EACH CHARACTER. ( ALSO USASCII ) AUTOMATION 1. THE IMPLEMENTATION OF PROCESSES BY AUTOMATIC MEANS. 2. THE INVESTIGATION, DESIGN, DEVELOPMENT, AND APPLICATION OF METHODS OF RENDERING PROCESSES AUTOMATIC, SELF-MOVING, OR SELF-CONTROLLING. AUTOSPOT (AUTOMATIC SYSTEM FOR POSITIONING OF TOOLS ) A COMPUTER ASSIGNED PROGRAM FOR NC POSITIONING AND STRAIGHT-CUT SYSTEMS, DEVELOPED IN THE U.S.A. BY THE IBM SPACE GUIDANCE CENTER. IT IS MAINTAINED AND TAUGHT BY IBM. AXIS A PRINCOPAL ( SIC PRINCIPLE ) DIRECTION ALONG WHICH THE RELATIVE MOVEMENTS OF THE TOOL OR WORKPLACE OCCUR. THERE ARE USUALLY THREE LINEAR AXES, MUTUALLY AT RIGHT ANGLES, DESIGNATED AS X, Y, AND Z. AXIS INHIBIT A FEATURE OF AN NC CONTROL WHICH ENABLES THE OPERATOR TO WITHHOLD COMMAND INFORMATION FROM A MACHINE TOOL SLIDE. AXIS INTERCHANGE THE CAPABILITY OF INPUTTING THE INFORMATION CONCERNING ONE AXIS INTO THE STORAGE OF ANOTHER AXIS. AXIS INVERSION THE REVERSAL OF THE NORMAL PLUS AND MINUS VALUES ALONG AN AXIS WHICH MAKES POSSIBLE THE MACHINING OF A LEFT-HANDED PART FROM RIGHT-HANDED PROGRAMMING OR VICE VERSA. SAME AS MIRROR IMAGE. B-AXIS THE AXIS OF CIRCULAR MOTION OF A MACHINE TOOL MEMBER OR SLIDE ABOUT THE Y AXIS. ( NORMALLY REFERRED TO AS “BETA”. ) For multiple items less shipping that total of individual items. Let me send an invoice with reduced shipping for 2 or more items purchased. Ebay keeps item listed until it is paid for so please pay quickly if the "buy it now" choice is clicked. Thank you.

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“LIKE NEW = BASICALLY SAT ON SHELF UNUSED FOR YEARS - MAY HAVE VERY FEW IF ANY PEN UNDERLININGS - MAY HAVE BEEN USED FOR REFERENCE ONLY A FEW TIMES. PLASTIC SPIRAL BINDER MAY HAVE MARKER PEN BOOK TITLE WRITTEN.”
