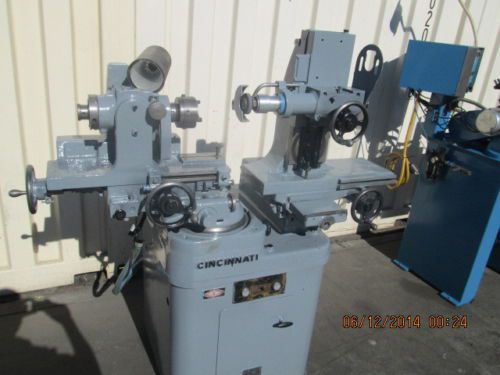

Cincinnati "monoset" Tool & Cutter Grinder Needs Some Work

US $3,950.00

  • Huntington Beach, California, United States
  • Jan 30th
Open on mobile:
QR code
 CINCINNATI  "MONOSET" TOOL & CUTTER GRINDER NEEDS SOME WORK  NEEDS A LEADSCREW AND DIAL FOR THE CROSS SLIDE AND POSSIBLY  OTHER UNKNOWN DETAILS, PRICED VERY CHEAP AND SOLD AS IS!! NOMINAL SPECS TO BE VERIFIED.. PLEASE CALL JIM FOR MORE INFO 7146121480 CAPACITY - WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12" MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4" MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12" MAX. GRINDING WHEEL DIA. .................... 4" MAX. LENGTH OF WORK BETWEEN SPINDLE & TAILSTOCK CENTER .......................... 6" RANGE - WORKHEAD SLIDE TRAVEL: LONGITUDINAL .............................. 5-3/4" CROSS ..................................... 5-3/4" WORKHEAD ANGULAR ADJUSTMENT: MAX. TURNTABLE SWIVEL ..................... 235 DEG. ABOVE AND BELOW CENTER .................... 40 DEG. WHEELHEAD SLIDE TRAVEL: LONGITUDINAL .............................. 6" CROSS ..................................... 7-1/2" WHEELHEAD, VERTICAL MOVEMENT: ABOVE CENTER .............................. 4.5" BELOW CENTER .............................. 5" SPEEDS - (3) WHEELHEAD SPINDLE SPEEDS ................ 4,000, 5,730, 8,000 RPM (1) WORKHEAD SPINDLE SPEED ................. 436 RPM APPROXIMATE WEIGHT ........................ 1,500 LBS. MACHINE FEATURES: HARD WAYS & SCREWS BIJUR ONE-SHOT LUBRICATION SYSTEM 1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS
