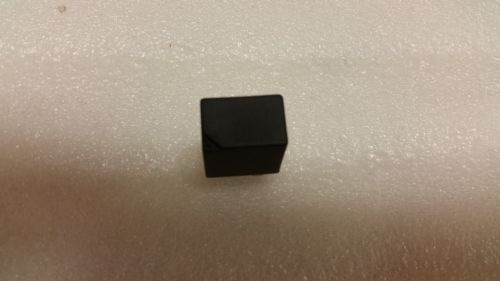

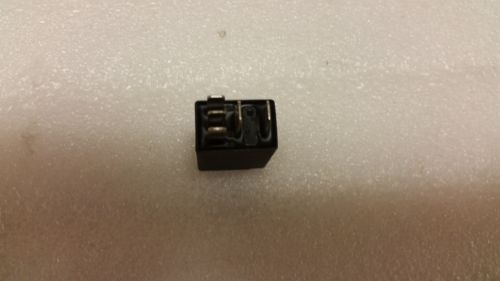

Cit Relay - A11csq24vdc1.5 (5 Piece Lot)

US $17.00

  • Fort Wayne, Indiana, United States
  • Jan 29th
Open on mobile:
QR code
 Switching capacity up to 25A • Small size and light weight • PCB pin and quick connect mounting available • Suitable for automobile and lamp accessories • QS-9000, ISO-9002 Certifi ed Manufacturing Coil Voltage VDC Coil Resistance ? +/- 10% Pick Up Voltage VDC (max) 70% of rated voltage Release Voltage VDC (min) 10% of rated voltage Coil Power W Operate Time ms Release Time ms Rated Max 1.2W 1.5W 6 7.8 30 24 4.20 .6 1.20 or 1.50 10 7 12 15.6 120 96 8.40 1.2 24 31.2 480 384 18.00 2.4 48 62.4 1920 1536 33.60 4.8 Contact Data Coil Data General Data Caution 1. The use of any coil voltage less than the rated coil voltage may compromise the operation of the relay. Contact Arrangement 1A = SPST N.O. 1C = SPDT Contact Rating 1A : 25A @ 14VDC 1C : 20A @ 14VDC Contact Resistance < 50 milliohms initial Contact Material AgSnO2 Maximum Switching Power 350W Maximum Switching Voltage 75VDC Maximum Switching Current 25A Electrical Life @ rated load 100K cycles, typical Mechanical Life 10M cycles, typical Insulation Resistance 100M ? min. @ 500VDC Dielectric Strength, Coil to Contact 2500V rms min. @ sea level Contact to Contact 1500V rms min. @ sea level Shock Resistance 100m/s2 for 11 ms Vibration Resistance 1.27mm double amplitude 10~40Hz Terminal (Copper Alloy) Strength 8N (Quick Connect), 4N (PCB pins) Operating Temperature -40oC to +85oC Storage Temperature -40oC to +155oC Solderability 260oC for 5 s Weight 18.5g
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand CIT
MPN A11CSQ24VDC1.5
