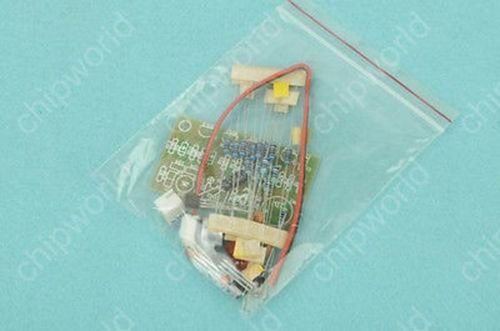

Clap Switch Suite DIY Kit 5V Sound Control Switch Voice Switch NEW, US $2.22 – Picture 0

Clap Switch Suite DIY Kit 5V Sound Control Switch Voice Switch NEW, US $2.22 – Picture 1

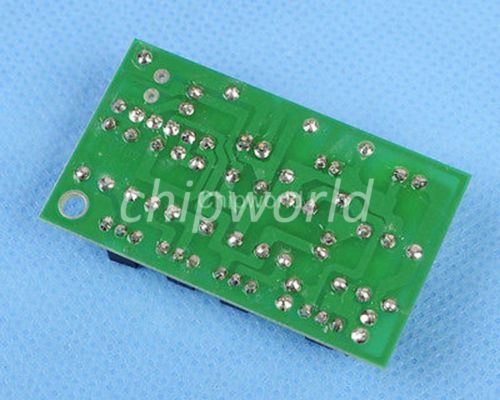

Clap Switch Suite DIY Kit 5V Sound Control Switch Voice Switch NEW, US $2.22 – Picture 2

Clap Switch Suite DIY Kit 5V Sound Control Switch Voice Switch NEW, US $2.22 – Picture 3

Clap Switch Suite Diy Kit 5v Sound Control Switch Voice Switch New

US $2.22

shenzhen, China
Jun 9th

Open on mobile:
QR code

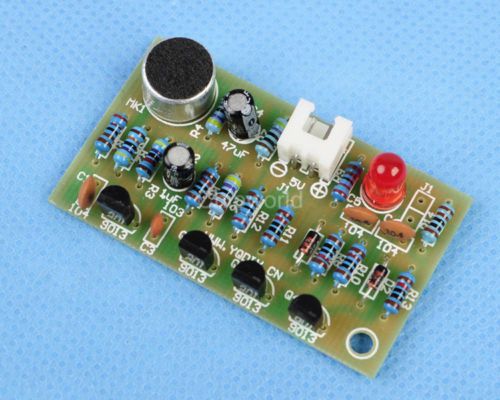

Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Product Name: Clap Switch Suite/DIY Kits/Electronic production new More Items In Our Store,Click Here! SKU: 1755 Parsts No. : Package: Brand: Quantity: 1 1.Principle of Circuits The circuit is maily composed by audio frequency and bistable tigger circuit. Q1 and Q2 form the secondary amplifier circuit. Audio signal which accepted by MK1 enters to Q1 base through the coupling of C1, and enters to Q2 base through collector directly after amplified. And it will obtain a negative square-wave which used to trigger the bistable circuit from Q2's collector. R1 and C1 restrict the frequency response of circuit to 3kHz which is in a high sensitivity range. Q4 is cutoff, while Q3 is saturated and D3 is off when the power is on. When MK1 obtains the control signal, a negative square-wave has been outputted after amplified and negative pluse has been added to Q3 base through D1 after differentiation processing. The power flips rapidly and D3 is lighted at this time. The power flips again when MK1 obtains the control signal at the second time. And the D3 is off. A cable terminal J1 can be added on PCB which used for connecting external control equipment. It can realize the sound control function on other equipment by connecting J1 and relay. (A diode should be connected reversely at the ends of relay when connecting the relay) This circuit is with 5V power supply. LED is off when the machine current 3 mA, while the LED is on when the current is 6 mA. PCB Size: 28 * 49mm 2.Circuit Diagram 3.List of Components Item Order Item Name Specifications Code Item Order Item Name Specifications Code 01 Resistor 470 R7 10 Capacitance 1uF/50V C2 02 1K R14 11 47uF/16V C4 03 2.2K R1 R8 R12 12 Diode 1N4148 D1 D2 04 4.7K R4 R6 13 LED ?5Red Red D3 05 10K R5,R8,R10 ,R11,R13 14 Transistor 9013 Q1----Q4 06 47K R3 15 Microphone 9767 MK1 07 470K R2 16 Cable Terminal 2.54 2P(Horizontal) J1 08 Capacitance 103 C3 17 Power Wire 2.54 2P(Single) 1 09 104 C1 C5 C6 18 PCB FR-4 28*49 1 Click play the vedio below Any problem, please contact us freely 1) We accept PayPal payment ONLY. On Mar-21-14 at 02:01:19 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded
Model	DIY Kits
MPN	Does Not Apply
Country/Region of Manufacture	China
UPC	Does not apply
