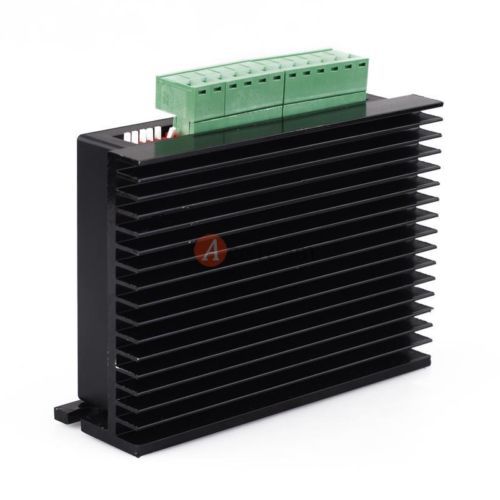

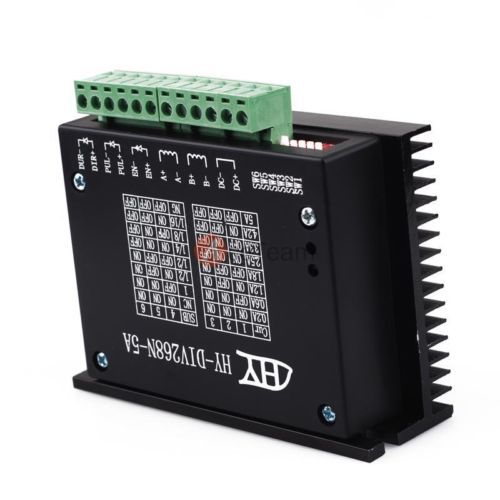

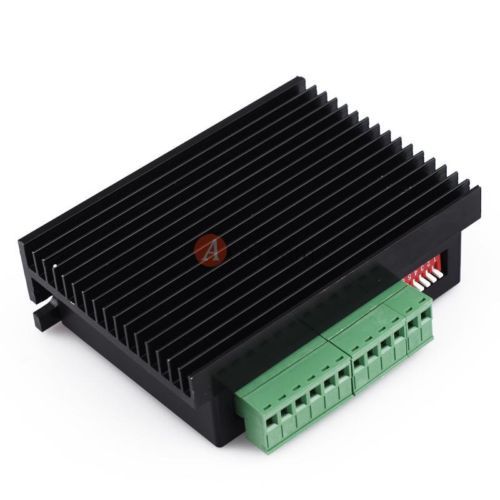

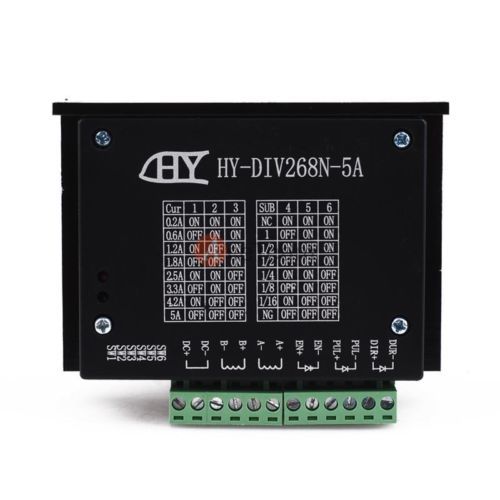

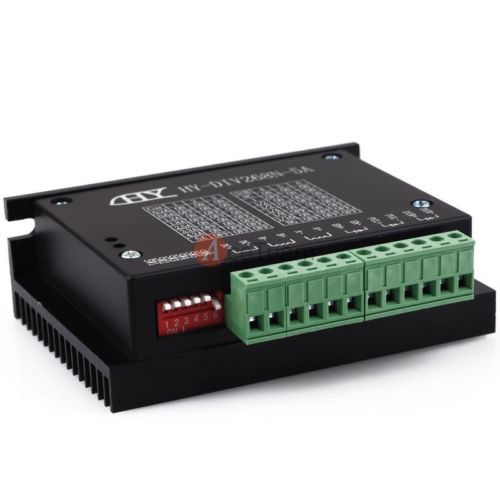

Single Axis TB6600 0.2-5A CNC Engraving Machine Driver Controller Stepper Motor U.S. warehouse Ship within 24 hours Arrival time 3-8day Description Single Axis TB6600 0.2-5A CNC Engraving Machine Driver Controller Stepper Motor Features: HY-DIV268N-5A subdivision-type two-phase hybrid stepping motor drive using DC 12 ~ 48V power supply, suitable for drive Two-phase hybrid stepping motor dynamic voltage 12 to 48V, the current is less than 5A outer diameter of 35 to 86 mm. This drive using the drive's current loop subdivision control, the motor torque ripple is very small, low-speed running is very smooth, almost no vibration and noise. High-speed torque is much higher than other two-phase drive, high positioning accuracy. Widely used in the engraving machine, CNC machine tools, packaging machinery and other high resolution requirements on the device Features: average current control, two-phase sinusoidal current drive output DC 12 ~ 48V power supply, the internal integration of 12V and 5V regulator optically isolated signal input / output overvoltage, undervoltage, overcurrent, and white short-circuit protection Input voltage DC 12 ~ 48V input The input current of 1 to 5 amps, select the drive a stepper motor Output current of 0.2A ~ 5A Temperature Operating Temperature -10 to 45°C Storage temperature -40 °C to 70 °C Humidity not condensing, not drops Gas prohibit combustible gas and conductive dust Weight 200 grams Control signal interface Figure 1 is a wiring schematic of the drive 1, the definition of control signals PUL +: step pulse signal is input side or the positive pulse signal input positive terminal PUL-: the negative input of the negative input pulse signal or a positive pulse signal DIR +: stepping direction signal input to the positive terminal or negative pulse signal input to the positive terminal DIR -: stepping direction signal input of the negative side or reverse step pulse signal input negative terminal EN +: offline can reset signal input side is EN-: offline can reset signal input negative terminal Offline enable signal is active, reset drive failure to prohibit any pulse, the output of the drive Power component is turned off, the motor holding torque Control signal connections PC control signal can be high, also can be low effective. When active high, the control signal The negative side together as a signal to active low, positive side of all control signals together as a signal common For example, open-collector and PNP output interface circuit diagram is as follows: Figure 2. Input interface circuit (common cathode connection) Note: the VCC is 5V, R short VCC value of 12V, R 1K, more than 1/8W resistor VCC value of 24V, R 2K, more than 1/8W resistor Function selection (DIP switch on the drive panel) Set the motor per revolution steps The drive to set the number of steps per motor revolution is 200 (whole step), 400 (2 segments), 1600 (8 segments), 3200 steps (16 segments) The user can drive the front panel DIP switch SW3 is SW4 bit of the drive to set the number of steps (such as Table 1) Table 1 Set the output phase current To drive torque stepper motor, the user can drive panel DIP switch SW1, SW2 is to set the drive output phase current (RMS) unit amperes, the switch position Corresponding to the output current, output current value corresponding different types of drive. Concrete are shown in Table 2 Output Current (A Table 2 Current setting the semi-flow functionality The semi-flow function is a step pulse 200ms, the driver output current is automatically reduced to the rated output current50%, used to prevent motor heating Fourth, the power interface 1, DC +, DC-: to connect the drive power DC +: DC power level, power supply voltage DC 12 to 48V. The maximum current is 5A. The DC-: DC power supply negative level 2, A + A-B + B-: to connect the two-phase hybrid stepping motor Drive and two-phase hybrid stepper motor's connection with the four-wire system, the motor windings in parallel and series connection, and connection method, high-speed performance, but the drive current is large (for motor winding current of 1.73 times), Connected in series when the drive current is equal to the motor winding current Five, the installation - Around to have 20mm of space, can not be placed next to the other heating equipment, to avoid dust, oil mist, Corrosive gases, high humidity is too big and strong vibration. + Figure 3 Six fault diagnosis 1, the status light indicates RUN: green light in the normal work ERR: red light, power, light, power indicator Specification: Size: 105 x 85 x 33mm(approx) Color: Black What is included: 1 x Axis TB6600 Driver Controller Stepper Motor Policies Payment: We Accept Paypal Only. Payment must be made in 3 days after auction close; otherwise the item may resell and be out of stock. Shipment: Usually we arrange shipping in 1 business day after payment confirmed. Orders from the USA will all be shipped out via Carrier USPS . Usually it takes up 3~8 business days for delivery. Delivery time (including weekend): 5.21%(1~2days)----65.68%(3~5D)----22.19%(6~8D)----2.47%(9~10D)----1.26%(above 10D) When you find track information is abnormal or not get goods in 10 days, please feel free to email contact us first for troubleshooting, Don't open dispute case immediately Please. Warrenty & RMA: 6 months Manufacturer's Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty. In order to return an item you must contact us to request a RMA No. Please returned items in the original packaging, fill in RMA number on package, and PROVIDE us reason for the return, and your eBay ID. Return shipping is to be paid by the Buyer if you buy wrong or just don't want it , Please check the description and size of items before you make a order. Service & Contact: We hope you have a pleasant shopping experience with us and satisfy 100%. If there are any item or delivery problems, please email contact us first, BEFORE you leave neutral or negative feedback, or 1,2,3 ratings, so that we can address your concerns. Please give us the opportunity to resolve any problem. Usually, we response your email in 1 business day. On Dec-08-14 at 18:35:42 PST, seller added the following information:
