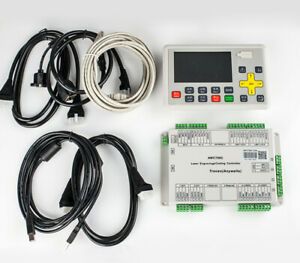

Co2 Laser Engraving Controller System Ruida Controller Rdlc320-a For Co2 Machine

US $426.00

Beijing, China
Aug 19th

Open on mobile:
QR code

Description CO2 Laser Engraving Controller System RuiDa Controller RDLC320-A for CO2 Laser Cutting Machine Description: RuiDa Laser engraving cutting control card RDLC320-A RDLC320-A is especially for laser cutting and engraving application. With the optimized motion control algorithm, smoothly velocity control and contour accuracy can be achieved. Laser power control in real-time according with the motion velocity can ensure the laser power to be well-distributed. Application: RDLC320-A can be widely used in laser cutting, laser engraving, laser welding, etc. Specifications: The main card size: 170 mm x120mm; System working power supply: + 24v, more than 3A; System working temperature: - 20 ~ 70 degree Parameter: Digital laser control signals (1) Differential output, TTL level, 20mA Driving ability (2) PWM frequency 2.5K ~ 100K for adjustable (3) PWM duty ratio 2% ~ 98% for adjustable Analog laser control signal 0 ~ 5V automatically tracing adjust Motor control signal differential output, TTL level, 20mA driving ability Motor control pulse frequency maximum 500KHZ USB maximum transmission rate 12M, the longest distance is 5 meters Line/arc/B spline interpolation accuracy +/- 0.5 pulses 4-way general photoelectric isolation OC gate output, the maximum 600mA driving ability 4 -way General photoelectric isolated input, TTL level Advantages: 1, The Board as a whole has better resistance to high pressure and antistatic ability 2, One-way 24V power supply (compatible with 36V, but not recommended); can save the cost of machine manufacturer 3, Multi-way general large-current IO, convenient for function extension. 4, Support USB disks with all brand and capacities, and copy speed is 3 times than previous version system; 5, On-board 256Mlarge-capacity file storage, no longer has the bottlenecks limit for file size 6, Capable of self-checking defective track, can format memory, good in fault tolerance 7, Two-way independent digital/analog power interface, Software can be adjusted respectively, Convenient for double laser heads control 8, online upgrade mainboard program, conveniently for manufactures and customers to maintain and function customized; 9, Online upgrade startup display (the startup display can be customized, then download in through software); 10, System comes with time system (can display date month year, hardware encryption algorithm is more stable and reliable); 11, Support work time preview (Preview Accuracy 100%, preview time and actual processing time correct to millisecond); 12, Support machine backlash compensation function; 13, increase Z axes linkage function 14, Support hard limit 15, Perfect Power-off restart for Engraving function; 16, Support System start up Reset or not for optional (reset or not reset when starting up) 17, Support multi-origin Logics (can set multiple anchor point, and start work from different anchor points); 18, All manufacturer/user parameters can be backup and restore (means can set a group of parameter as manufacture defaulted factory parameter in the panel, at the same time these default factory parameter can be also one-key reset); Package list: 1 Controller, 1 control panel, 1 USB cable, 1 wire cable Note:Pls download the software from below PDF label, or our sales will send by email.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	CO2 Laser Engraving Controller System RuiDa RDLC32
Brand	QOMOLANGMA
Type	Engraving Machine
Featured Refinements	Co2 Laser
Engraving Method	Laser
Item ID	20228
MPN	0160002022800
UPC	746060401738
