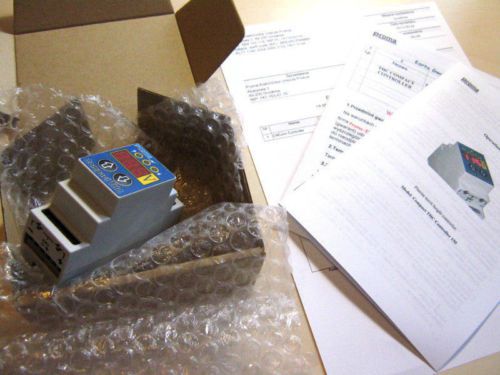

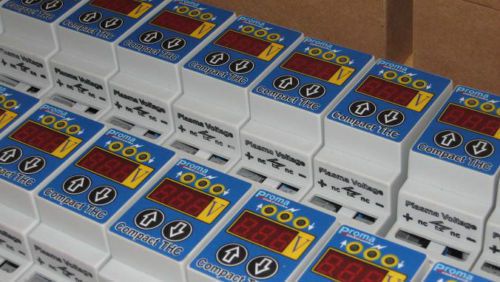

Compact THC SD ( Proma-Elektronika Plasma Torch Height Control ), US $258.00 – Picture 0

Compact THC SD ( Proma-Elektronika Plasma Torch Height Control ), US $258.00 – Picture 1

Compact THC SD ( Proma-Elektronika Plasma Torch Height Control ), US $258.00 – Picture 2

Compact Thc Sd ( Proma-elektronika Plasma Torch Height Control )

US $258.00

Grodkow, Poland
Apr 29th

Open on mobile:
QR code

If you will check delivery via UPS ( cost 28USD ) i will send via DHL Service ( require your phone number ) Estimated delivery time: 1 - 4 business days. if you have VAT EU number i will accept your offer -10% Check please customs formalities before buy!User's guide [ EN ] User's guide [ PL ] New on the market !!! A new generation height controller of plasma torch is based on the popular Compact THC 150 model (our previous item for sale), in which relay outputs were replaced by inputs / outputs STEP DIR. These inputs / outputs generate corrective signals step/dir proportionally to the slope of the material after the detection of a cutting arc so that the cutting quality is maintained at a very high level. The connection method of a controller “beyond the software” allows you to use it with the software without the THC function. Intended for use with any control system that uses STEP/DIR signals to control the Z axis. Oryginal (from the Proma-Elektronika company) Device for professional use ( 100% duty time ) 100% satisfied customers We accept returns if you not satisfied ( full payment return ) User's guide, invoice and warranty include. Ready for use! Very easy to install and configuration The device works with any plasma cutter You don't need a voltage divider or additional components Simplified block diagram: Specification: Supply voltage (V) 7 – 35V DC Input LOW voltage 0-10V DC (from cuter voltage divider 1:50) Input HI voltage 20-300V DC Ability of HV/HF ionization voltage suppressing 30kV Ability of HV/HF ionization frequency suppressing >100kHz Duty cycle (%) 100% Duty cycle of HV / HF suppression (%) 100% Step Dir Inputs/Outputs : TTL 5V (max 100kHz) Weight (g) 180g Dimensions (width*length*height) 33*89*65 Mounting DIN 35 rail country of origin : POLAND Example for Plasma-Voltage connection PLASMA CUTTER WITH VOLTAGE DIVIDER 1:50 OUTPUT : PLASMA CUTTER WITHOUT VOLTAGE DIVIDER OUTPUT : Example Clients VIDEO Shipping from Polish to European Union : Registered mail (tracking). Estimated delivery time 5-10 business days DHL: 1-2 business days Shipping from Polish to Outside European Union : Registered mail (tracking). Estimated delivery time: 12 - 23 business days DHL 2-4 business days Attention: I send in the day of pay or next bussines day (rarely max. 2 days).

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Proma-Elektronika
Country/Region of Manufacture	Poland
Model	Compact THC SD
