Conair Model Pt450 Complete Central Pump Tank Assembly

US $14,000.00

Seneca, Pennsylvania, United States
Mar 3rd

Open on mobile:
QR code

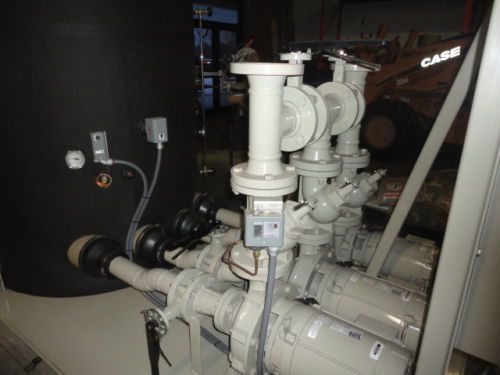

CONAIR MODEL PT-450-2I POLYMER PUMP TANK ASSEMBLY INCLUDING: --PROCESS PUMP 10 HP (126 GPM @ 65 PSI) --RECIRCULATING PUMP 5 HP (129 GPM @ 35 PSI) --BACKUP PUMP DUAL SERVICE 10 HP (129 GPM @ 65 PSI) Pumps mounted on deck and trimmed suction and discharge increasers, 3” discharge connection. Manifold is included to allow for manual, pump switchover compound pressure gages with isolation valves. ITT Triple duty discharge valve. --400 GALLON INSULATED POLYETHYLENE TANK THAT INCLUDES:Insulated for chilled water system, automatic make-up float with shutoff valve, overflow connection with rubber coupler and clamps, drain connection with shutoff valve, warm and cold side thermometers, reservoir low level switch, thermostat for high temperature alarm, pressure switch with low pressure alarm, structural steel support frame with solid steel pump deck. --BALANCING AND SHUTOFF FUNCTIONS --NEMA 12 ELECTRICAL CONTROL PANEL MOUNTED TO THE PUMP DECK AND:Pre-wired to (3) pumps, (1) pressure switch, (1) reservoir low level switch and (1) high temp thermostat, IEC-rated motor Starter protectors for each pump, operating light for each pump, control transformer, audible and visual alarm with individual alarm for low level, low process pressure and high temperature. NOTE: E-BAY SHIPPING COST ARE ESTIMATES ONLY. PLEASE CONTACT SCHAKE INDUSTRIES DIRECTLY @ 814-677-9333 EX: 104 FOR FIRM SHIPPING CHARGES PRIOR TO ORDERING. Skidding, Banding and Loading of Equipment is Free. Crating Equipment will cost extra. Contact the Sales Department at Schake Industries at 814-677-9333 (Ex: 104) with any other questions.

“ALL COMPONENTS OF THIS UNIT ARE NEW WITH THE EXCEPTION OF THE MOLDED TANK WHICH CAME OFF A DEMO UNIT.”
