Contec Digital Eeg 16 Channel Digital Eeg And Mapping System Kt88-1016

US $1000

Beijing, China
Jun 9th

Open on mobile:
QR code

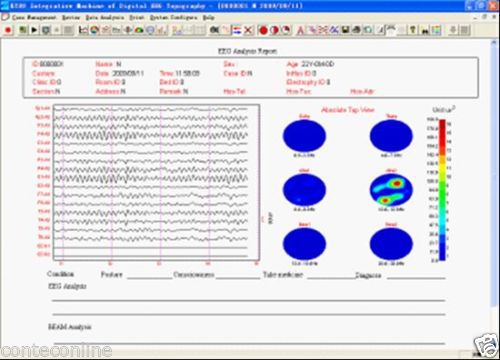

EEG 16 Channel Digital EEG And Mapping System KT88-1016 Introduction KT88 Digital Brain Electric Activity Mapping is an equipment for checking 16 channels of EEG and optional 2 channels of ECG, it collects EEG signal with electrodes, via integrated amplification, A/D transformation, PC auto-analysis, FFT, to form electroencephalogram which displays with color depth. The product is applicable for checking such diseases as epilepsy, intracranial inflammation, cerebrovascular diseases and brain tumors. Performance Parameter Channel: 16 channels of EEG + 2 channels of ECG(ECG is optional) Sampling rate: 100 Hz A/D transformation: 12 bits Input impedance: >=10M? Patient leak current: < 10µA Noise level: =90dB Magnification multiple: 10000 Filter constant: all digital and free enactment Display speed(paper speed): 5, 10, 15, 30, 60, 120 mm/s Amplitude: 1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm/50µV Playback speed: 1 time, 2 times, 3 times, 10 times, 20 times, 40 times, 60 times 50Hz interference suppression: >=30dB Safety type:Class II, type BF applied part Function Features Standard 16 channels of EEG, compatible with 16 channels and 8 channels function. Method of 10/20 electrodes placement under international standard system, montages can be changed during replaying(such as monopolar, bipolar or user-defined montages). Adopt bioelectricity amplifier for distilling brainwave, continuous record time can be up to 24 hours, integrated full-automatic calibration system. Powerful playback function: two playback modes(continuous and rolling) are optional, amplitude and display speed are adjustable. The special subdividing time line divides the waveform in one second into 5 parts, which is easy for doctors to look over the waveform. Multifunctional digital filter system provide different filter methods and window types, and user can freely set low-pass, high-pass, band pass and band stop filter. EEG signal clipping function, analyze and store any section of EEG wave, and select several segments waveforms for automatically analyzing and distilling to different parameters. Electronic frequency ruler, convenient to measure the basic information of any appointed EEG waveforms. With partial enlarging window, to accurately measure EEG period, amplitude and frequency, and which can be adjusted according to personnel judgment. Mark EEG wave under the events of opening eyes, closing eyes and flashing with different colors, and user-defined events can be added, waveform color for evoked event can also be set freely, ensures that the waveform in corresponding time can be rapidly found by event name during case playback. Powerful automatic analysis function, can carry through the power spectrum analysis and pathologic wave detection for appointed waveform. Many graphs can be displayed in the same screen, including kinds of BEAM, numerical BEAM, compressed spectrum graph, trend graph, and so on. Professional isolation transformer, dual power supply isolation system and optoelectronic data transmission to ensure security. Use USB interface to transmit data which just need to be inserted. Multifunctional flash stimulator of USB interface, and frequency can be controlled manually or automatically. A flash stimulation scheme can be set and performed in the process of collection. Perfect case management function, provides many means for research and quick statistic information; convenient case export and import function, and stores with CD-RW disk, which is easy for data research. Integrative image and character report, report can be edited in mode and switched to Word document. Case files can be transformed into EDF and BDF data format, convenient for data exchange, academic exchange and further analysis. System parameters and display modes can be set as required, which meets different user’s requirements. Add marks and annotations to the waveform designated, which can rapidly find the waveform in that time by marks. Optional video function: USB camera is easy to install, convenient to use and exact to record. With flexible playback function, which can browse the waveform of any time along with the corresponding isochronous collected image. SpO2 function which can view SpO2 value, pulse rate and SpO2 trend graph is optional. Accessories Standard accessories: Twenty EEG leads Two EEG leads(ear electrode) Two data lines Twenty EEG electrodes Two headgears One flashlight One flashlight power supply One disk One User Manual One earth wire Two aluminum blocks Optional accessories: ECG lead. ECG electrode(for optional ECG function) SpO2 module (one CMS-P SpO2 probe, one disk with software) Video module(one softdog, one camera, one video software disk) EEG bracket(tripod) Qualification Certificate SFDA, CMC Certifications from CONTEC Medical systems: CE & ISO certification Buy Safe Product! The following FDA Disclaimer is required for all eBay listing in Healthcare category and is included for REFERENCE: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, We will verify your status as an authorized purchaser of this item before shipping of the item. Contec Medical Systems Co.,Ltd, manufacturer Paypal: ebaycontecmed@gmail.com We only accpet paypal payment only Payment should be paid in 7 days, thanks! EMS : 7-15 business days TNT: 7-10 business days if EMS service is not aviliable in your country! Netherlands, South Africa, Porto Rico, Yemen, and so on. Airmail: 15-25 working days if EMS service is not aviliable in Afrcia, South America, Middle East Country. Please indicate your personal requirement, such as colors, packages, value of declaration etc, at paypal's message when you pay to us. Return: If your item arrived damaged or defective or if you received the wrong product or the item is not working according to its technical spec, you may return it to us for a replacement item or a full refund, This should be done within 14 days from the day you received the item. We will send you a new unit or refund the full payment you paid. Custom fee: International Buyers - Please Note: • Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. • Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying." Warranty: 3 years (1 year for spare parts) from the date of shipment under normal use and service. By Airmail: Generally, about 2-3 weeks to UK, USA, AU. By Express: Generally, about 5-10 working days to UK, USA, AU. delivery to US, UK, Australia and Canada usually takes 7-14 working days; delivery to countries except US, UK, Australia and Canada usually takes 7-21 working days; We can also ship the item through express service like DHL, UPS, if you are ready to pay the extra charge. To know the details please contact us with email. Refund: Agent in the world! We are looking for partners in the world now! Do you want to become our agent in you country? Join US! Please contact : Eunice Email: contec.eunice@gmail.com Skype:eunice5187 Tel: 86-335-8015542 Fax:86-335-8015590 Contec Medical Systems Co.,Ltd, Manufacturer, Qinhuangdao,China

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Contec
MPN	kt88-1016
Model	kt88-1016
Country/Region of Manufacture	China
